FR-2000 C (139-026-190) - White Outdoor Front-Mount Riding Mower (1989) Transmission Drive Parts Diagram

Front-Mount Riding Mower

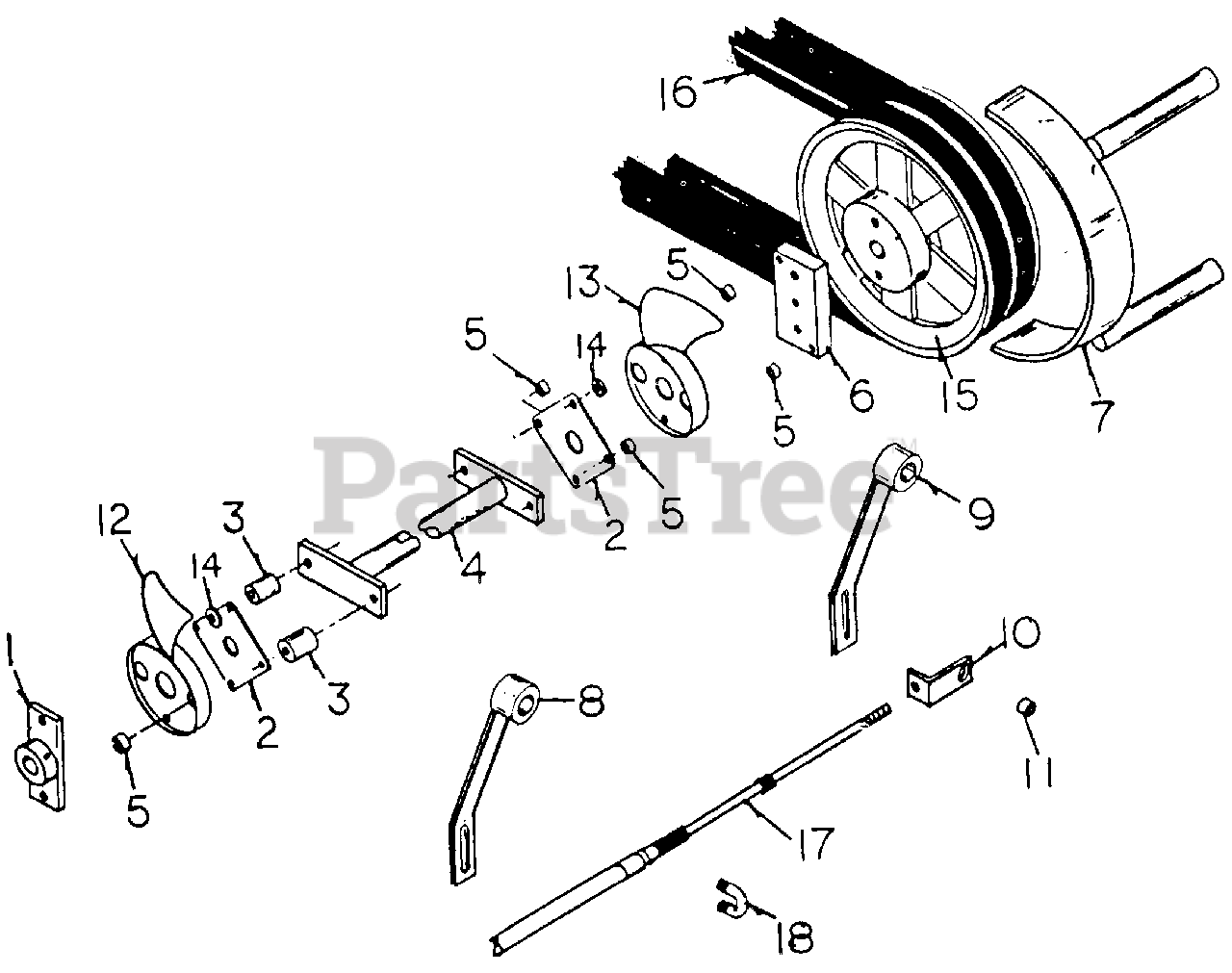

Transmission Drive Parts Diagram

  • Title
1

White Outdoor WD-112-0012

Hub w/Drive Plate

$

$

Not available

2

White Outdoor WD-111-0021

Drive Plate
(Superseded to WD-C37700)

$

$

Not available

3

WD-311-0022

Spacer

$

$

Not available

$

$

Not available

$

$

Not available

6

White Outdoor WD-112-0007

Cross Bar Block

$

$

Not available

7

WD-112-0006

Transmission Belt Retainer

$

$

Not available

8

WD-112-0004

Transmission Arm, LH

$

$

Not available

9

White Outdoor WD-112-0003

Transmission Arm, RH

$

$

Not available

10

White Outdoor WD-140-0023

Steering Cable Ends

$

$

Not available

11

White Outdoor WD-200-0014

Steering Cable Ends Bushing
(Superseded to WD-C42895)

$

$

Not available

12

$

$

Not available

$

$

Not available

14

$

$

Not available

$

$

Not available

$

$

Not available

17

White Outdoor WD-900-5717

Steering Cable

$

$

Not available

$

$

Not available
