FR-2000 C (139-026-190) - White Outdoor Front-Mount Riding Mower (1989) Cable Lift Mounting Parts Diagram

Front-Mount Riding Mower

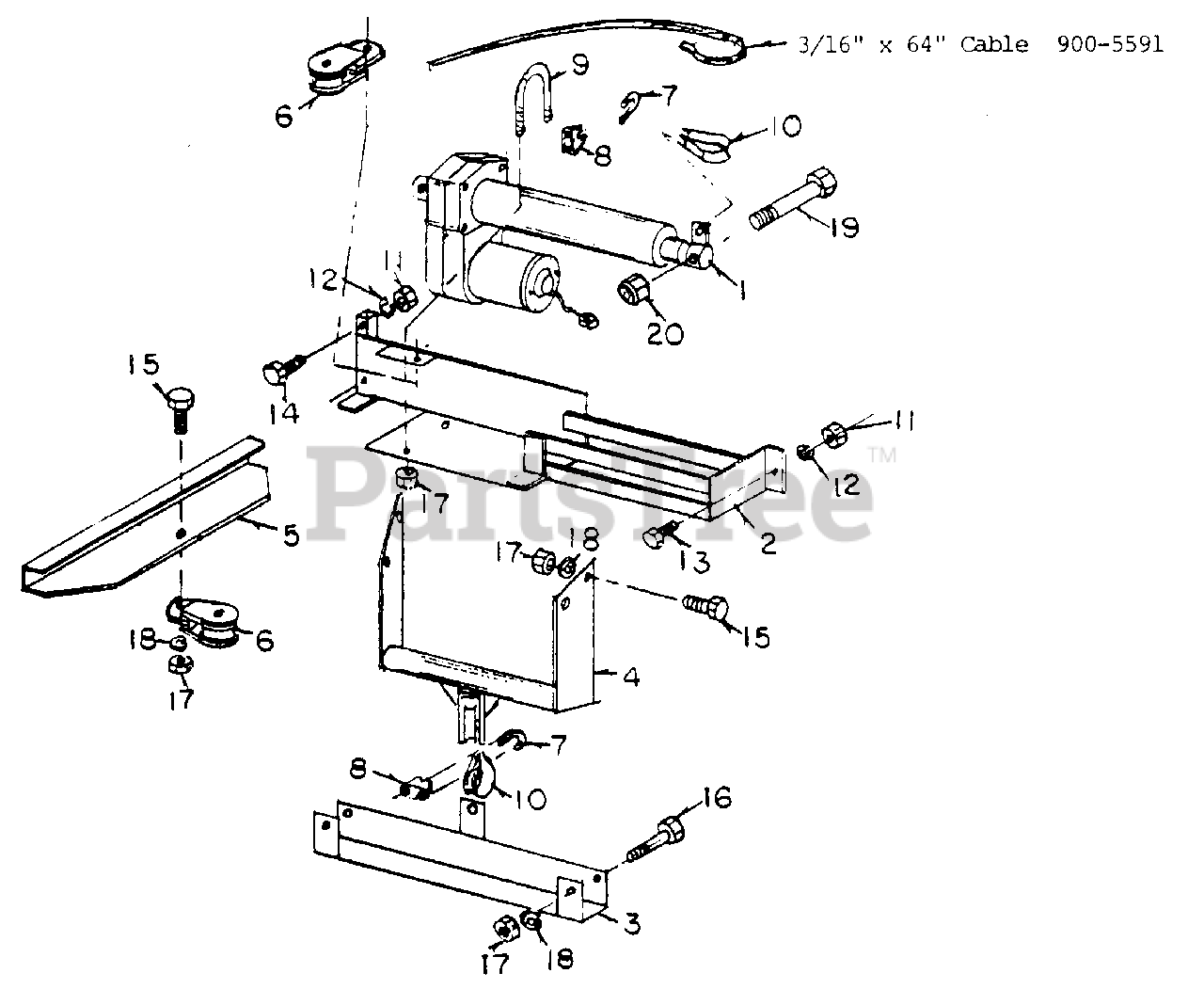

Cable Lift Mounting Parts Diagram

  • Title
1

WD-900-2031

Actuator

$

$

Not available

2

White Outdoor WD-450-0000

Actuator Mount

$

$

Not available

3

White Outdoor WD-450-0002

Deck Lift Adapter

$

$

Not available

4

WD-450-0001

Cable Mount

Note: (Nose )

$

$

Not available

5

WD-450-0001

Cable Mount

Note: (Side)

$

$

Not available

6

$

$

Not available

7

White Outdoor WD-900-5503

U-Bolt
(Superseded to WD-C37616)

Note: (cable)

$

$

Not available

8

$

$

Not available

9

WD-900-5592

U-Bolt

Note: (Actuator)

$

$

Not available

10

$

$

Not available

11

WD-900-6026

3/4-20 Nuts

$

$

Not available

12

WD-900-6028

3/4 Lock Washer

$

$

Not available

13

WD-900-6039

1/4-20 x 3/4

$

$

Not available

14

WD-900-6031

1/4-20

$

$

Not available

15

WD-900-6056

5/16-18 x 1

$

$

Not available

16

WD-900-6061

5/16-18 x 2

$

$

Not available

17

WD-900-6050

5/16-18 Nut

$

$

Not available

18

WD-900-6051

5/16 Lock Wasner

$

$

Not available

19

WD-900-6136

1/2-13 x 4

$

$

Not available

20

WD-900-6126

1/2-13 Lock Nut

$

$

Not available
