FR-2000 C (139-026-190) - White Outdoor Front-Mount Riding Mower (1989) Blade Parts Diagram

Front-Mount Riding Mower

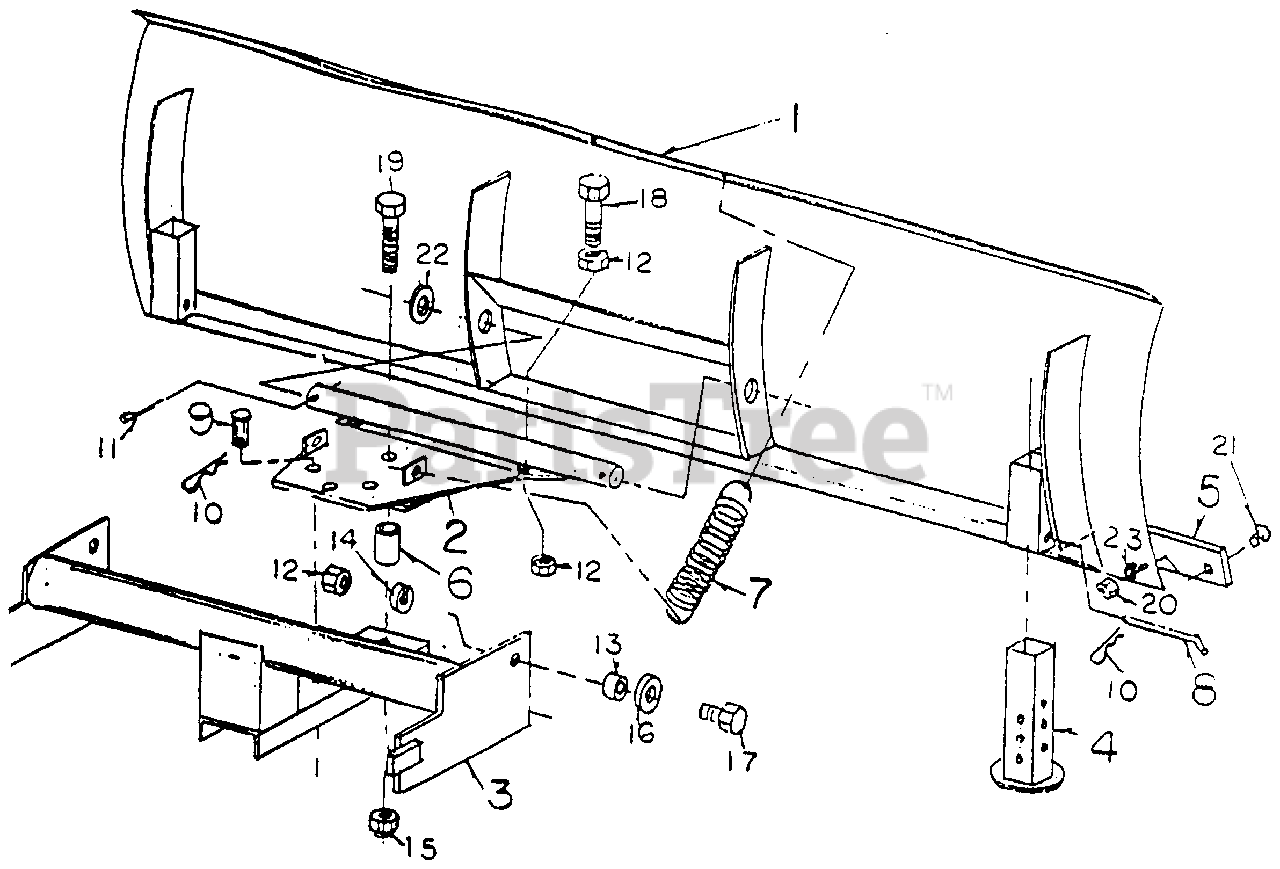

Blade Parts Diagram

  • Title

1

WD-440-0000

54" Blade

$

$

Not available

2

White Outdoor WD-440-0001

Pivot Mount

$

$

Not available

3

White Outdoor WD-440-0002

54" Blade Mount

$

$

Not available

4

WD-410-0004

Skid Plate

$

$

Not available

5

White Outdoor WD-440-0001

Replaceable Blade

$

$

Not available

6

White Outdoor WD-440-0005

Bushing

$

$

Not available

7

White Outdoor WD-900-5516

Spring

$

$

Not available

8

White Outdoor WD-900-5536

Pin 3/8

$

$

Not available

9

White Outdoor WD-900-5607

Pin 1/2

$

$

Not available

10

White Outdoor WD-900-5520

Hair Pins

$

$

Not available

11

WD-900-6178

3/16 Cotter Pin

$

$

Not available

12

White Outdoor WD-900-6125

1/2-13 Nut
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor WD-300-0013S

Bushing
(Superseded to WD-C37576)

$

$

Not available

14

White Outdoor WD-900-6127

1/2-Lock Washer
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

15

WD-900-6126

1/2 Lock Nut

$

$

Not available

16

WD-900-6128

1/2 Flat Washer

$

$

Not available

17

WD-900-6130

1/2-13 x 1-1/2

$

$

Not available

18

WD-900-6131

1/2-13 x 2-1/4

$

$

Not available

19

WD-900-6132

1/2-13 x 3

$

$

Not available

20

WD-900-6050

5/16-18 Nut

$

$

Not available

21

WD-900-6057

5/16-18 x 1 Carg.

$

$

Not available

22

White Outdoor WD-900-6003

3/4 Washer

$

$

Not available

23

WD-900-6051

5/16 Lock Washer

$

$

Not available
