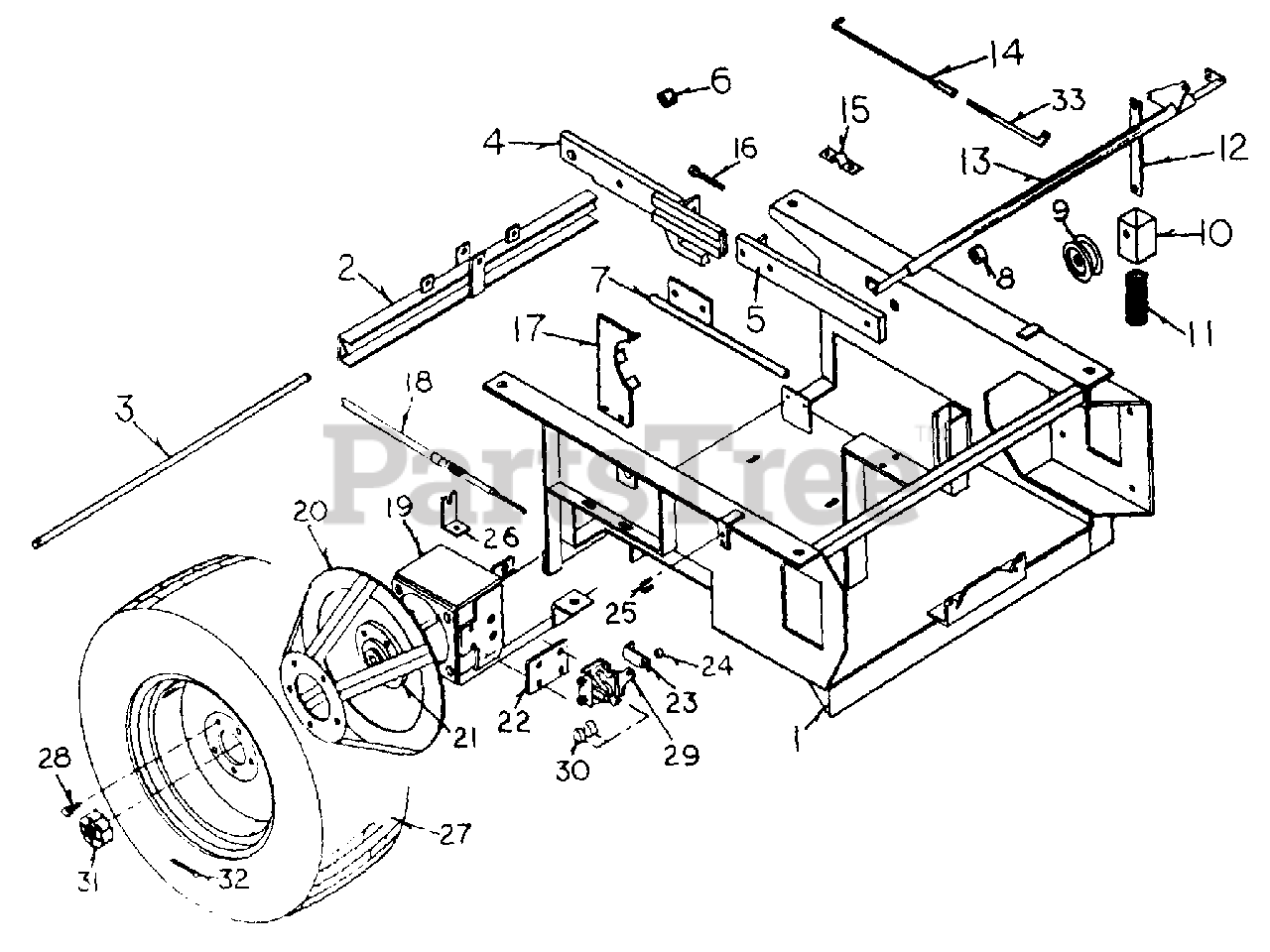

FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) Base Assembly Parts Diagram

Front-Mount Riding Mower

Base Assembly Parts Diagram

  • Title
1

WD-112-0000

BASE

$

$

Not available

2

WD-112-0016

LIFT BAR

$

$

Not available

3

WD-300-0022

CROSS BAR PIN

$

$

Not available

4

White Outdoor WD-300-0023RH

DECK LIFT ARM - Front Adjustable R.H.

$

$

Not available

White Outdoor WD-300-0023LH

DECK LIFT ARM - Front Adjustable L.H.

$

$

Not available

5

WD-330-0024

DECK LIFT ARM - Back

$

$

Not available

6

White Outdoor WD-300-0013

BUSHING - Long
(Superseded to WD-C37586)

$

$

Not available

$

$

Not available

8

White Outdoor WD-300-0013S

BUSHING - short
(Superseded to WD-C37576)

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-111-0019

SPRING LOADED IDLER MOUNT

$

$

Not available

$

$

Not available

12

White Outdoor WD-112-0014

PIVOT BAR LINKAGE

$

$

Not available

13

White Outdoor WD-112-0013

BRAKE CLUTCH ROD

$

$

Not available

14

White Outdoor WD-113-0014

BRAKE ROD - adjustable

$

$

Not available

15

White Outdoor WD-111-0004

CROSS ROD BEARING

$

$

Not available

16

White Outdoor WD-900-6088

DECK ARM ADJUSTING BOLT

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

WD-112-0001

AXLE

$

$

Not available

$

$

Not available

21

WD-900-4028

HUB - 5 BOLT

$

$

Not available

22

WD-112-0002

BRAKE CALIPER MOUNT

$

$

Not available

23

White Outdoor WD-200-0013

CABLE END
(Superseded to WD-C37614)

$

$

Not available

24

White Outdoor WD-200-0014

BUSHING
(Superseded to WD-C42895)

$

$

Not available

25

White Outdoor WD-900-5503

CLAMP
(Superseded to WD-C37616)

$

$

Not available

26

White Outdoor WD-112-0005

CABLE DEAD HEAD

$

$

Not available

27

WD-900-4037

TIRE ASSEMBLY - 20 x 8.00-10

$

$

Not available

White Outdoor WD-900-4043

TIRE - 20 x 8.00-10

$

$

Not available

WD-900-4044

RIM

$

$

Not available

27

WD-900-4039

TIRE ASSEMBLY - 20 x 10.00-10

$

$

Not available

WD-900-4045

TIRE - 20 x 10.00-10

$

$

Not available

WD-900-4046

RIM

$

$

Not available

$

$

Not available

29

White Outdoor WD-900-5691

BRAKE CALIPER - L.H.

Note: (Shown)

$

$

Not available

29

White Outdoor WD-900-5690

BRAKE CALIPER - R.H.

$

$

Not available

30

$

$

Not available

$

$

Not available

32

WD-900-6177

COTTER KEY

$

$

Not available

33

$

$

Not available
