FR-2000 C (132-026-190) - White Outdoor Front-Mount Riding Mower (1992) Wheel Motor & Pump Assembly Parts Diagram

Front-Mount Riding Mower

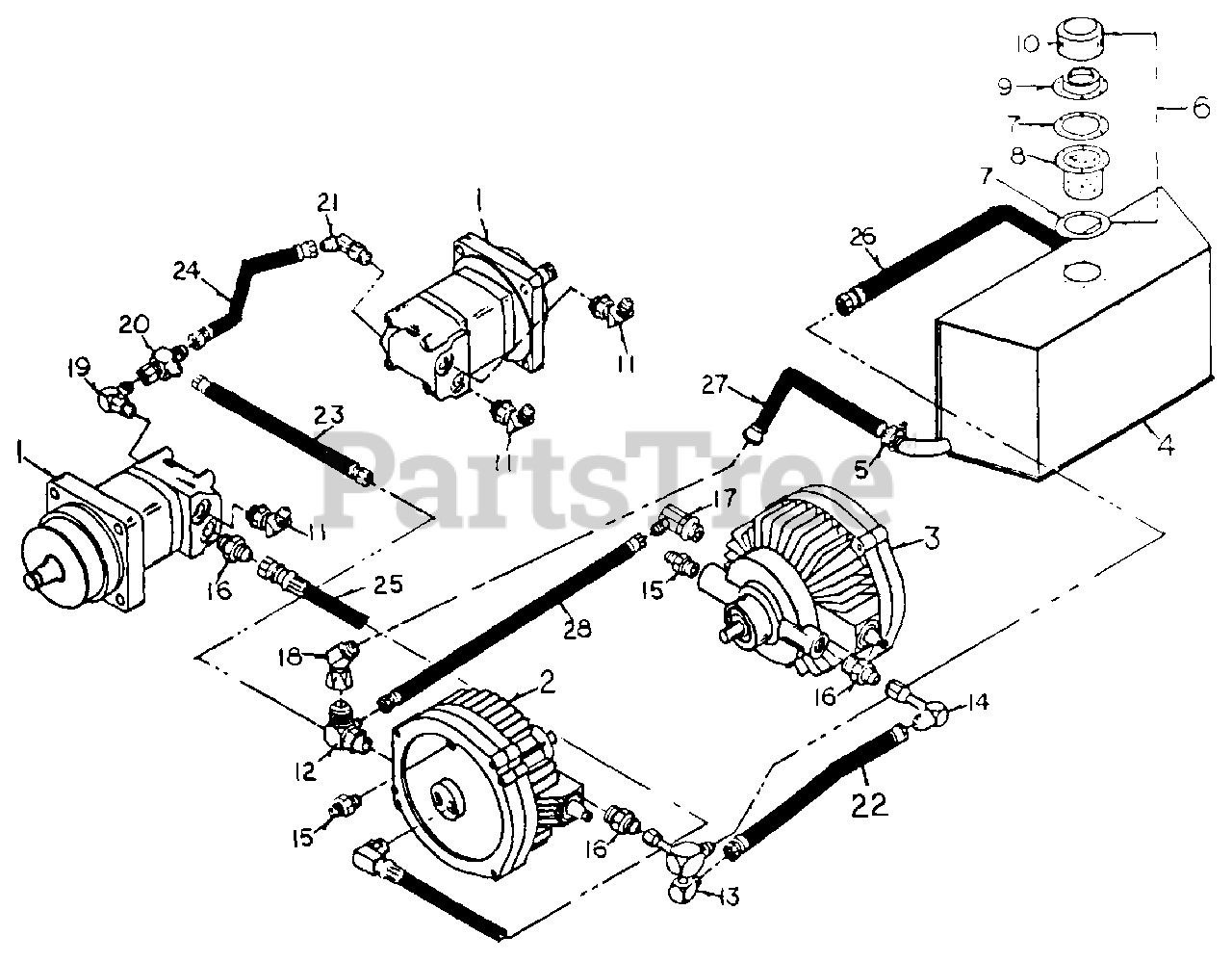

Wheel Motor & Pump Assembly Parts Diagram

  • Title

1

White Outdoor WD-900-8065

Wheel Motor

$

$

Not available

2

White Outdoor WD-900-8064

Pump, LH

$

$

Not available

3

WD-900-8063

Pump, RH

$

$

Not available

4

WD-900-8060

Hydraulic Oil Tank

$

$

Not available

5

WD-900-5629

Hose Clamp

$

$

Not available

6

White Outdoor WD-900-8046

Hydraulic Fill Cap Assembly

$

$

Not available

7

White Outdoor WD-900-8043

Gasket

$

$

Not available

8

WD-900-8042

Strainer

$

$

Not available

9

WD-900-8044

Fill Neck

$

$

Not available

10

White Outdoor WD-900-8045

Breather Cap

$

$

Not available

11

White Outdoor WD-900-8016

Male Tube, 45° O-ring Adapter

$

$

Not available

12

White Outdoor WD-900-8092

Special Cross

$

$

Not available

13

WD-900-8091

Special Adapter

$

$

Not available

14

White Outdoor WD-900-8004

Male Tube, 90° Female swivel Adapter

$

$

Not available

15

White Outdoor WD-900-8094

Male Tube, Male O-ring Adapter

$

$

Not available

16

WD-900-8097

Male Tube, Male O-ring Adapter

$

$

Not available

17

White Outdoor WD-900-8075

Male Tube, 90° Male O-ring Adapter

$

$

Not available

18

WD-900-8093

Male Tube, 45° Female Swivel Adapter

$

$

Not available

19

White Outdoor WD-900-8015

Male Tube, 90° Male O-ring Adapter

$

$

Not available

20

WD-900-8096

Male Tube, Female Swivel Tee

$

$

Not available

21

WD-900-8114

Male Tube, 45° Female Swivel Adapter

$

$

Not available

22

WD-900-8109

Hose, 1/2" ID x 18" Long, Easy Couple

$

$

Not available

23

White Outdoor WD-900-8107

Hose, 1/4" ID x 14" Long, Easy Couple

$

$

Not available

24

White Outdoor WD-900-8108

Hose, 1/4" ID x 20" Long, Easy Couple

$

$

Not available

25

White Outdoor WD-900-8100

Hose, 1/2" ID x 36 1/2" Long

$

$

Not available

26

White Outdoor WD-900-8112

Hose, 3/4" ID x 22" Long, Easy Couple

$

$

Not available

27

White Outdoor WD-900-8111

Hose, 3/4" ID x 18" Long, Easy Couple

$

$

Not available

28

WD-900-8110

Hose, 1/2" ID x 20" Long, Easy Couple

$

$

Not available
