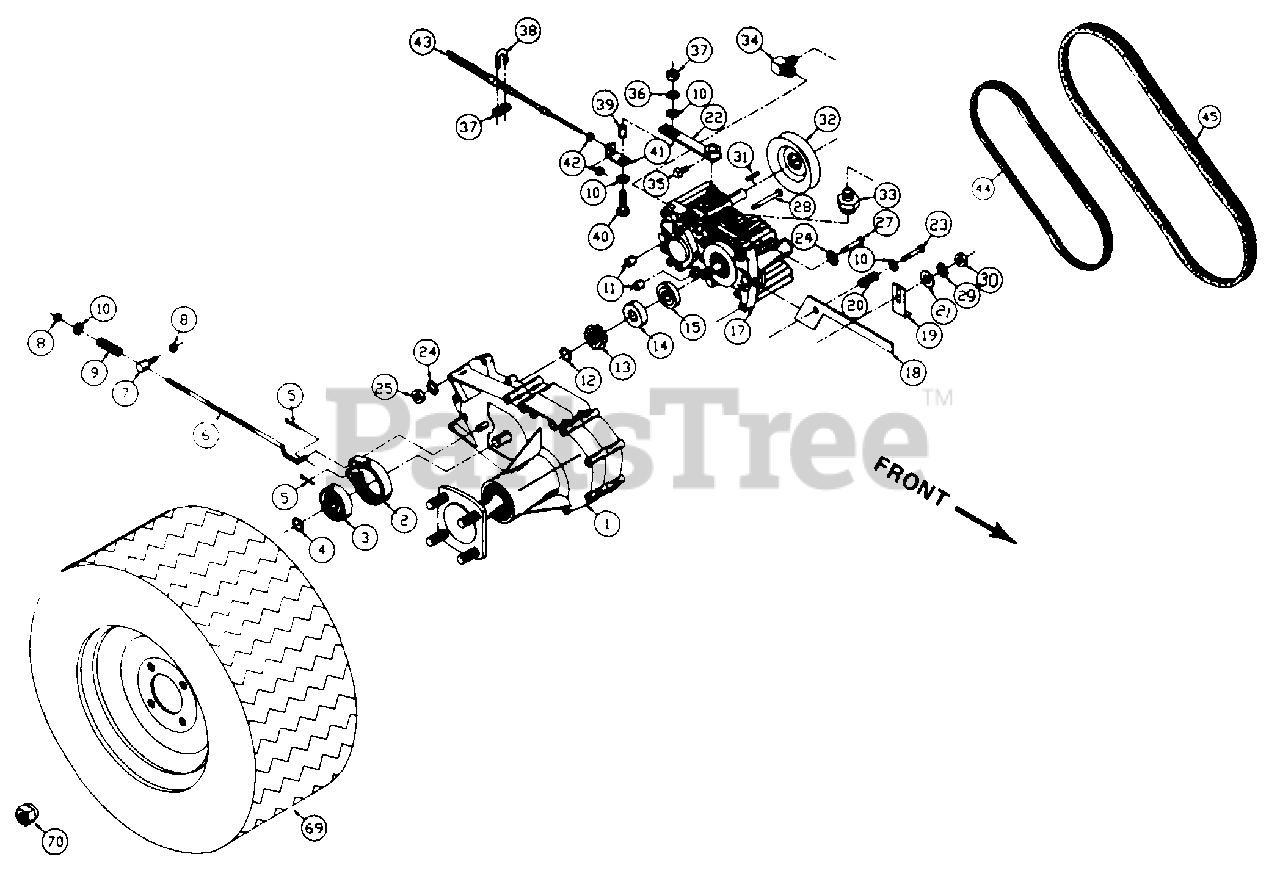

FR-2000 C (132-026-190) - White Outdoor Front-Mount Riding Mower (1992) AGRI-FAB Sundstrand RH Drive - S/N 41-027-012814-Up Parts Diagram

Front-Mount Riding Mower

AGRI-FAB Sundstrand RH Drive - S/N 41-027-012814-Up Parts Diagram

  • Title

1

White Outdoor WD-900-8134

ZT Transmission

$

$

Not available

2

White Outdoor WD-900-7050

Brake Band

$

$

Not available

3

White Outdoor WD-900-7051

Brake Drum

$

$

Not available

4

White Outdoor WD-900-7052

Snap Ring

$

$

Not available

5

WD-900-6167

Cotter Pin, 1/8" x 1"

$

$

Not available

6

White Outdoor WD-114-0004

Brake Linkage Rod

$

$

Not available

7

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

8

WD-900-6027

Elastic Stop Nut, 1/4-20

$

$

Not available

9

White Outdoor WD-900-5722

Spring

$

$

Not available

10

WD-900-6029

Flatwasher, 1/4"

$

$

Not available

11

White Outdoor WD-900-7045

Spacer

$

$

Not available

12

White Outdoor WD-900-7046

Snap Ring
(Superseded to 716-0865)

$4.49

$

In Stock, only 1 left!

0

13

White Outdoor WD-900-7047

Gear

$

$

Not available

14

White Outdoor WD-900-7048

Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

15

White Outdoor WD-900-7049

Spacer

$

$

Not available

17

White Outdoor WD-900-8132

Sundstrand Pump, RH

$

$

Not available

18

White Outdoor WD-114-0005

Transmission Dump Lever

$

$

Not available

19

WD-114-0001

Transmission Dump Lever Stop

$

$

Not available

20

White Outdoor WD-900-6501

Compression Spring, 9/16" OD x 1 3/8"

$

$

Not available

21

WD-900-6052

Flatwasher, 3/8"

$

$

Not available

22

WD-114-0013

Transmission Arm

$

$

Not available

23

WD-900-6019

Dump Valve Bolt

$

$

Not available

24

WD-900-6051

Lockwasher, 5/16"

$

$

Not available

25

WD-900-6050

Hex Nut, 5/16-18

$

$

Not available

27

WD-900-6061

Hex Bolt, 5/16-18 x 2", GR5

$

$

Not available

28

White Outdoor WD-900-6073

Hex Bolt, 5/16-18 x 7 1/2", GR5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

29

WD-900-5840

Lockwasher, 3/8"

$

$

Not available

30

White Outdoor WD-900-8164

Hex Nut, 3/8-16

$

$

Not available

31

White Outdoor WD-900-6168

Key, 5 x 5 x 25mm

$

$

Not available

32

White Outdoor WD-900-2552

Pulley, 4" OD x 15mm ID

$

$

Not available

33

White Outdoor WD-900-8168

Male Tube, Male O-ring Adapter

$

$

Not available

34

White Outdoor WD-900-8116

Male Tube, 90° Male O-ring Adpt.

$

$

Not available

35

WD-900-6058

Squarehead Setscrew, 5/16-18 x 1/2"

$

$

Not available

36

WD-900-6058

Lockwasher, 1/4"

$

$

Not available

37

WD-900-6028

Hex Nut, 1/4-20

$

$

Not available

38

White Outdoor WD-900-5503

Steering Cable Clamp
(Superseded to WD-C37616)

$

$

Not available

39

White Outdoor WD-200-0014

Steering Cable Bushing
(Superseded to WD-C42895)

$

$

Not available

40

WD-900-6031

Hex Bolt, 1/4-20 x 1", GR5

$

$

Not available

41

White Outdoor WD-200-0013

Steering Cable End
(Superseded to WD-C37614)

$

$

Not available

42

White Outdoor WD-900-6150

Hex Nut w/Star Washer, 10-32

$

$

Not available

43

White Outdoor WD-900-5819

Steering Cable, 3/16" x 58"

$

$

Not available

44

White Outdoor WD-900-3027

Pump Drive Belt

$

$

Not available

45

White Outdoor WD-900-3010

Belt
(Superseded to WD-C37762)

$

$

Not available

69

White Outdoor WD-900-4048

Drive Wheel Assembly

$

$

Not available

White Outdoor WD-900-4042

Tire, 18 x 9.50-8

$

$

Not available

White Outdoor WD-900-4040

Rim, 8 x 5 1/2"

$

$

Not available

70

White Outdoor WD-900-6138

Lug Nut, 1/2-20

$

$

Not available
