FR-2000 C (130-026-190) - White Outdoor Front-Mount Riding Mower (1990) Hydraulic Lift Assembly Parts Diagram

Front-Mount Riding Mower

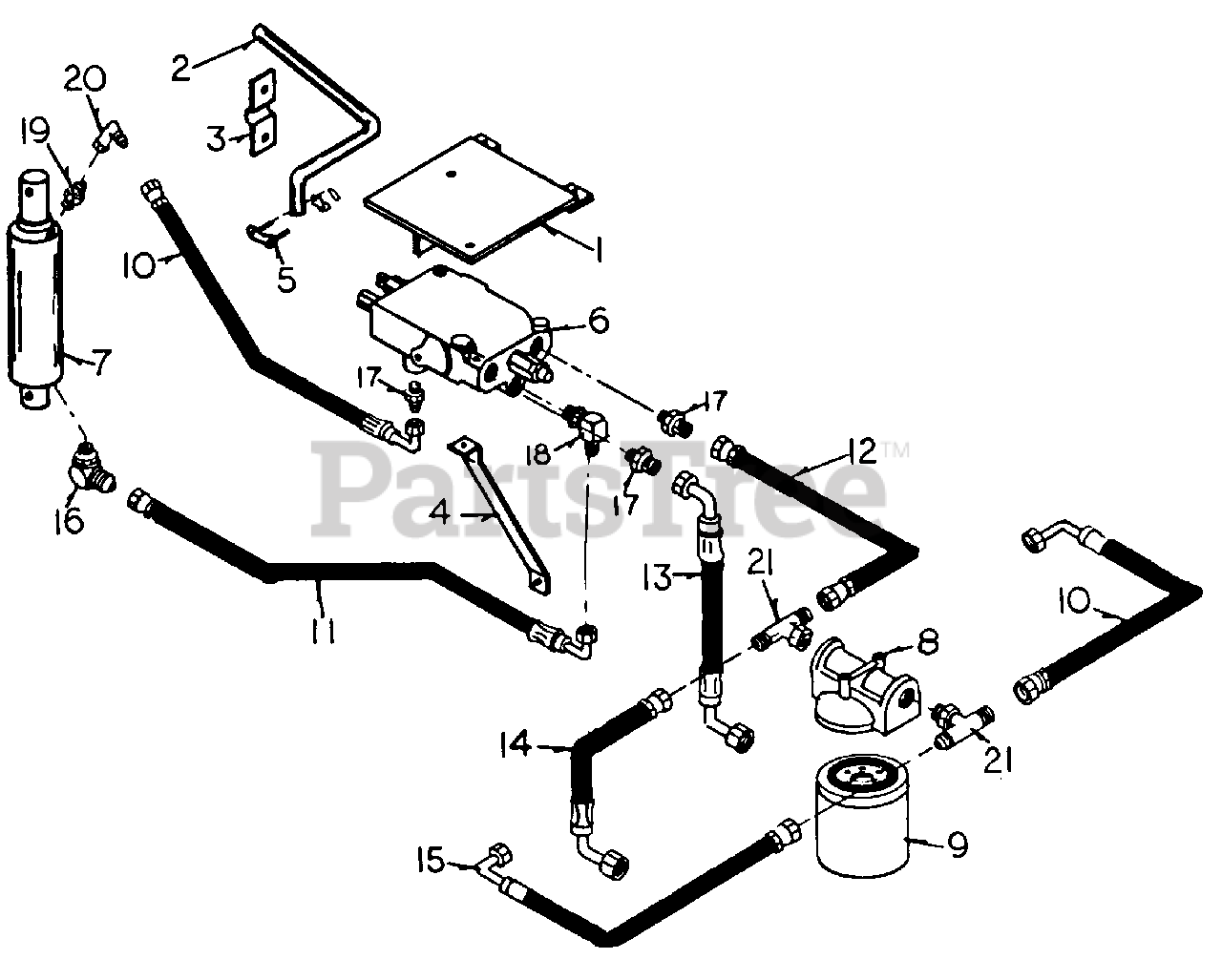

Hydraulic Lift Assembly Parts Diagram

  • Title

1

WD-212-0002

Valve Mount

$

$

Not available

2

White Outdoor WD-212-0003

Valve Lever

$

$

Not available

3

White Outdoor WD-111-0004

Bearing, Clutch Brake Cross Rod

$

$

Not available

4

WD-212-0005

Valve Support

$

$

Not available

5

White Outdoor WD-900-1004

Connecting Link, #50

$

$

Not available

6

White Outdoor WD-900-8000

Valve

$

$

Not available

7

White Outdoor WD-900-8070

Lift Cylinder

$

$

Not available

8

White Outdoor WD-900-8072

Housing, Oil Filter 1
(Superseded to WD-C37636)

$

$

Not available

9

White Outdoor WD-900-8073

Element, Oil Filter
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

10

White Outdoor WD-900-8103

Hose, 3/8" ID x 26" Long
(Superseded to WD-C37794)

$

$

Not available

11

White Outdoor WD-900-8106

Hose, 3/8" ID x 31" Long

$

$

Not available

12

White Outdoor WD-900-8101

Hose, 3/8" ID x 20" Long

$

$

Not available

13

White Outdoor WD-900-8102

Hose, 3/8" ID x 13" Long

$

$

Not available

14

WD-900-8105

Hose, 3/8" ID x 11.5" Long

$

$

Not available

15

WD-900-8104

Hose, 3/8" ID x 21" Long

$

$

Not available

16

White Outdoor WD-900-8116

Male O-ring, 90ø Male 1 Tube Adp.

$

$

Not available

17

White Outdoor WD-900-8094

Male O-ring, Male 3 Tube Adp.

$

$

Not available

18

WD-900-8097

Male O-ring, 90ø Male 1 Tube Adp.

$

$

Not available

19

White Outdoor WD-900-8115

Male O-ring, Male 1 Tube Adp.

$

$

Not available

20

White Outdoor WD-900-8121

Male Tube, 90ø 37ø 1 Female Swivel Adp.

$

$

Not available

21

White Outdoor WD-900-8095

Male Tube, Male O-ring 2 Tee

$

$

Not available
