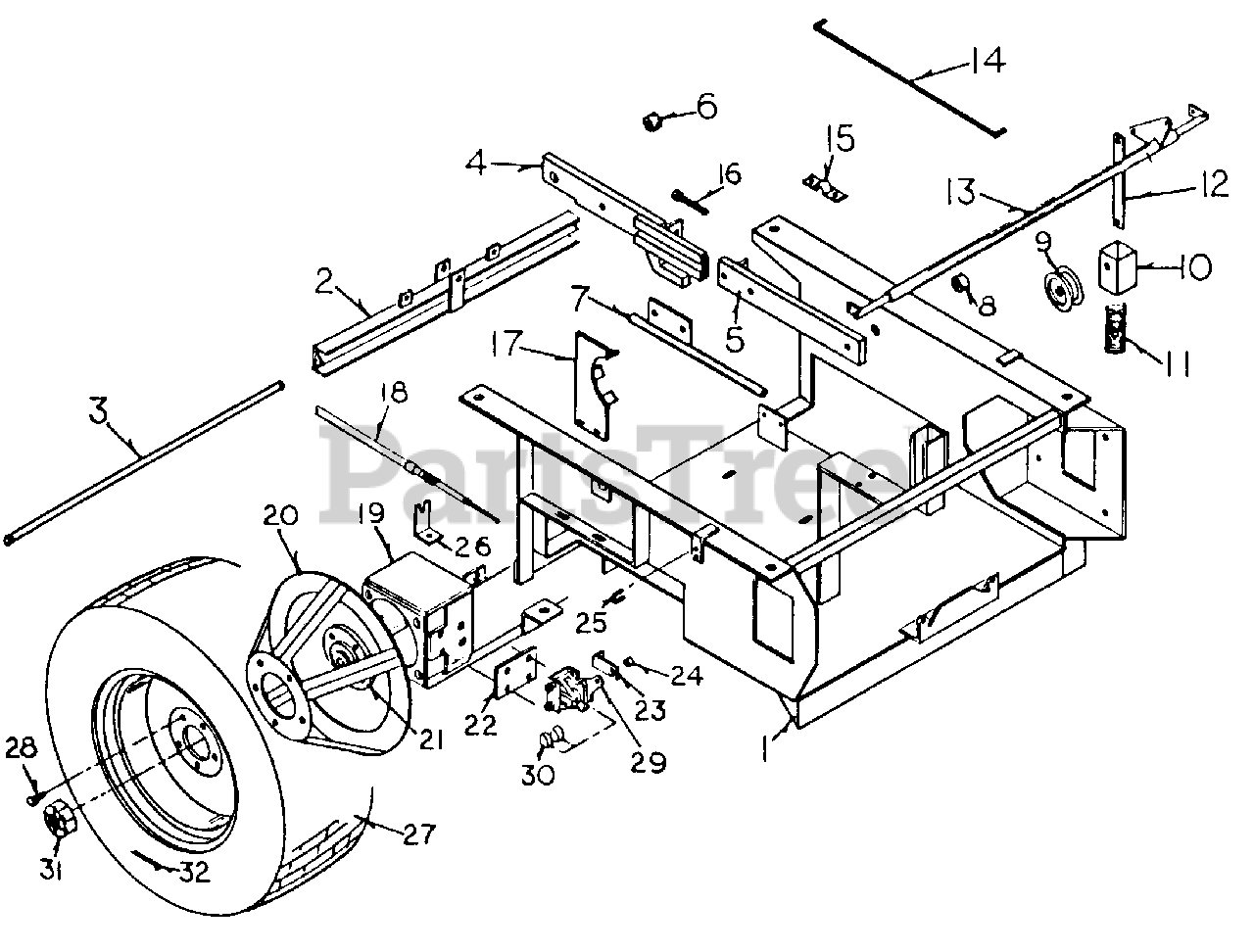

FR-2000 C (130-026-190) - White Outdoor Front-Mount Riding Mower (1990) Base Assembly Parts Diagram

Front-Mount Riding Mower

Base Assembly Parts Diagram

  • Title
1

WD-112-0000

Base

$

$

Not available

2

WD-112-0016

Lift Bar

$

$

Not available

3

WD-300-0022

Cross Bar Pin

$

$

Not available

4

WD-300-0023

RH Deck Lift Arm, Front Adjustable

$

$

Not available

WD-300-0023

LH Deck Lift Arm, Front Adjustable

$

$

Not available

5

WD-330-0024

Deck Lift Arm, Back

$

$

Not available

6

White Outdoor WD-300-0013

Bushing, Long
(Superseded to WD-C37586)

$

$

Not available

$

$

Not available

8

White Outdoor WD-300-0013S

Bushing, Short
(Superseded to WD-C37576)

$

$

Not available

9

White Outdoor WD-900-2541

Idler Pulley 1

$

$

Not available

10

White Outdoor WD-111-0019

Spring Loaded Idler Mount

$

$

Not available

$

$

Not available

12

White Outdoor WD-112-0014

Pivot Bar Linkage

$

$

Not available

13

White Outdoor WD-112-0013

Brake Clutch Rod

$

$

Not available

14

White Outdoor WD-111-0006

Brake Pedal Rod

$

$

Not available

15

White Outdoor WD-111-0004

Cross Rod Bearing

$

$

Not available

16

White Outdoor WD-900-6088

Deck Arm Adjusting Bolt

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

WD-112-0001

Axle

$

$

Not available

$

$

Not available

21

WD-900-4028

5 Bolt Hub

$

$

Not available

22

WD-112-0002

Brake Caliper Mount

$

$

Not available

23

White Outdoor WD-200-0013

Cable End
(Superseded to WD-C37614)

$

$

Not available

24

White Outdoor WD-200-0014

Bushing
(Superseded to WD-C42895)

$

$

Not available

25

White Outdoor WD-900-5503

Clamp
(Superseded to WD-C37616)

$

$

Not available

26

White Outdoor WD-112-0005

Cable Dead Head

$

$

Not available

27

WD-900-4037

Tire Assembly, 20 x 8.00-10 0

$

$

Not available

White Outdoor WD-900-4043

Tire, 20 x 8.00-1

$

$

Not available

WD-900-4044

Rim

$

$

Not available

WD-900-4039

Tire Assembly, 20 x 10.00-10 0

$

$

Not available

WD-900-4045

Tire, 20 x 10.00

$

$

Not available

WD-900-4046

Rim

$

$

Not available

$

$

Not available

29

White Outdoor WD-900-5691

Brake Caliper, LH

Note: (Shown)

$

$

Not available

White Outdoor WD-900-5690

Brake Caliper, RH

$

$

Not available

30

$

$

Not available

$

$

Not available

32

WD-900-6177

Cotter Key

$

$

Not available
