FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Seat Lid And Steering Parts Diagram

Front-Mount Riding Mower

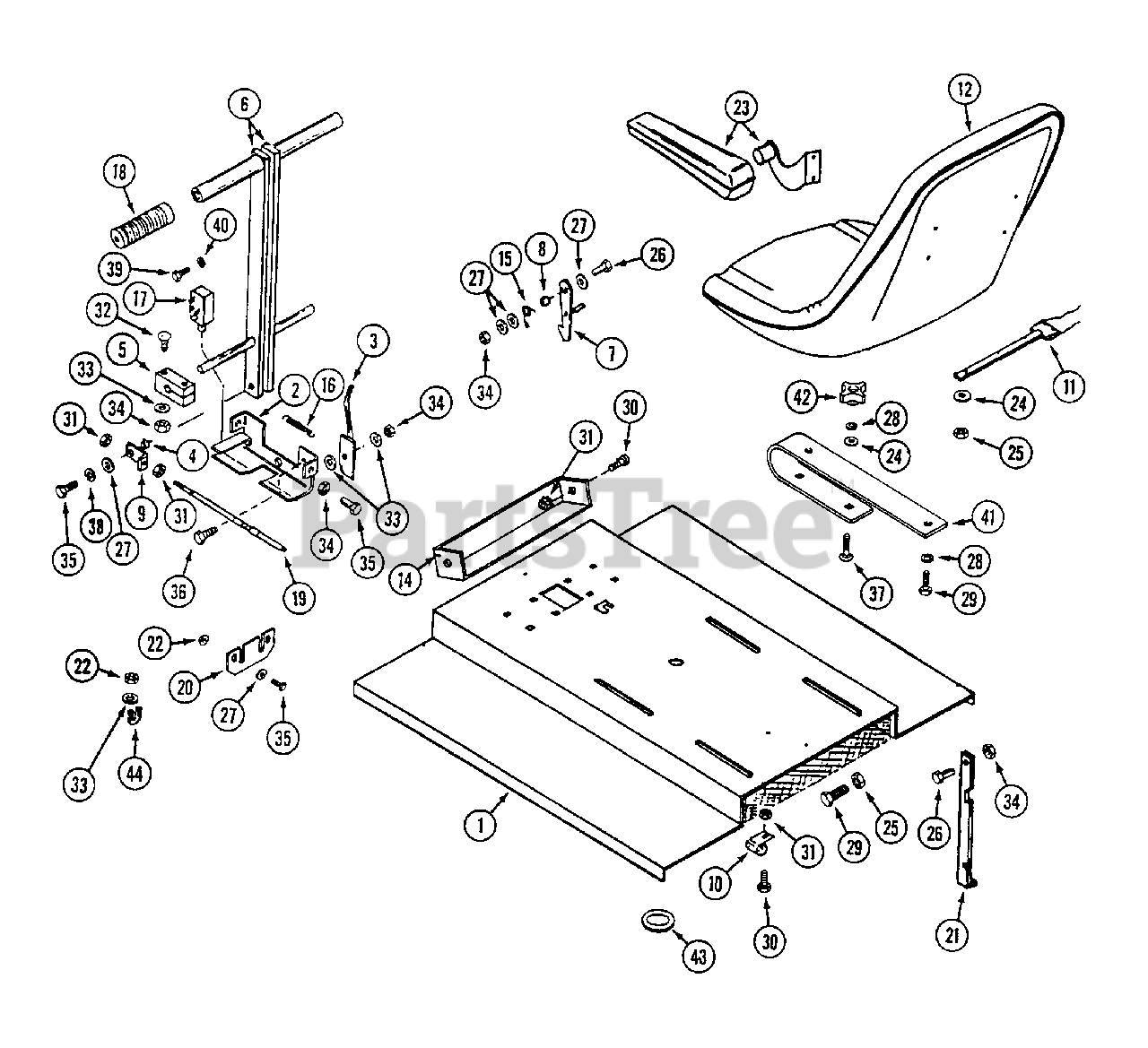

Seat Lid And Steering Parts Diagram

  • Title

1

WD-C46551

LID - seat

Note: (Use S/N J136WG and after)

$

$

Not available

1

White Outdoor WD-C44237

LID - seat

Note: (Use before S/N J136WG)

$

$

Not available

2

White Outdoor WD-C46588

BRACKET - lever lock

Note: (Use S/N J136WG and after)

$

$

Not available

2

White Outdoor WD-C37840

BRACKET - lever lock

Note: (Use before S/N J136WG)

$

$

Not available

3

White Outdoor WD-C37841

LATCH - lever lock

Note: (Use before S/N J136WG)

$

$

Not available

3

WD-C46691

LATCH - lever lock

Note: (Use S/N J136WG and after)

$

$

Not available

4

White Outdoor WD-C42895

BUSHING

$

$

Not available

5

White Outdoor WD-C37842

BEARING - block

$

$

Not available

6

White Outdoor WD-C46586

LEVER - steering

Note: (Use S/N J136WG and after)

$

$

Not available

6

White Outdoor WD-C44915

LEVER - steering

Note: (Use before S/N J136WG)

$

$

Not available

7

WD-C44481

LATCH - seat lid

Note: (Use before S/N J136WG)

$

$

Not available

7

White Outdoor WD-C46659

LATCH - seat lid

Note: (Use S/N J136WG and after)

$

$

Not available

8

WD-C44498

SPACER - latch

$

$

Not available

9

White Outdoor WD-C42896

BRACKET - steering cable end

$

$

Not available

10

WD-C32455

RETAINER - harness, seat lid

$

$

Not available

11

WD-C44012

SWITCH - seat

$

$

Not available

12

White Outdoor WD-C43202

SEAT

$

$

Not available

14

WD-C37826

PLATE - filler

$

$

Not available

15

White Outdoor WD-C37851

SPRING - latch, seat lid

$

$

Not available

16

White Outdoor WD-C37837

SPRING - bracket, lever lock

$

$

Not available

17

White Outdoor WD-C37521

SWITCH - safety

$

$

Not available

18

White Outdoor WD-C37631

GRIP - handle

$

$

Not available

19

White Outdoor WD-C42894

CABLE - steering

Note: (See "C43293 Steering Cable Kit" illustration and parts list.)

$

$

Not available

20

White Outdoor WD-C46592

CLAMP - steering cable

Note: (Use S/N J136WG and after)

$

$

Not available

21

WD-C45471

PROP - seat lid

$

$

Not available

22

White Outdoor WD-131-934

NOT - 1/4" - 20 flange lock

$

$

Not available

23

WD-~NSS

KIT - arm rest

Note: (Optional) (Order as whole goods item)

$

$

Not available

24

White Outdoor WD-195-103

WASHER - 5/16"

$

$

Not available

25

WD-131-69

NUT - 5/16"

$

$

Not available

26

WD-113-17

BOLT - 1/4" - 20 x 1-1/4"

$

$

Not available

27

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

28

White Outdoor WD-192-20

LOCKWASHER - 6/16"

$

$

Not available

29

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

30

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

31

White Outdoor WD-193-1000

NUT- #10 - 32

$

$

Not available

32

WD-111-114

BOLT - 1/4" - 20 x 1-1/2" carriage

$

$

Not available

33

WD-195-521

WASHER - 1/4"

$

$

Not available

34

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

35

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

36

WD-113-17

BOLT - 1/4" - 20 x 1-1/4"

$

$

Not available

37

White Outdoor WD-111-256

BOLT - carriage 5/16" - 18 x 1-1/4"

$

$

Not available

38

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

39

WD-182-525

SCREW - #10 - 32 X 3/8"

$

$

Not available

40

WD-192-18

LOCKWASHER - 3/16"

$

$

Not available

41

White Outdoor WD-C43137

SPRING - seat

$

$

Not available

42

White Outdoor WD-C43438

KNOB - seat

$

$

Not available

43

WD-C25165

GROMMET - 1" x 1-3/4"

$

$

Not available

44

White Outdoor WD-C37616

CLAMP - steering, cable

Note: (Use before S/N J136WG)

$

$

Not available

WD-C22947

TIE - nylon

$

$

Not available

White Outdoor WD-C37830

TRIM - edge (12-3/4") cut to length

$

$

Not available
