FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Parking Brake (Use S/N J136WG And After) Parts Diagram

Front-Mount Riding Mower

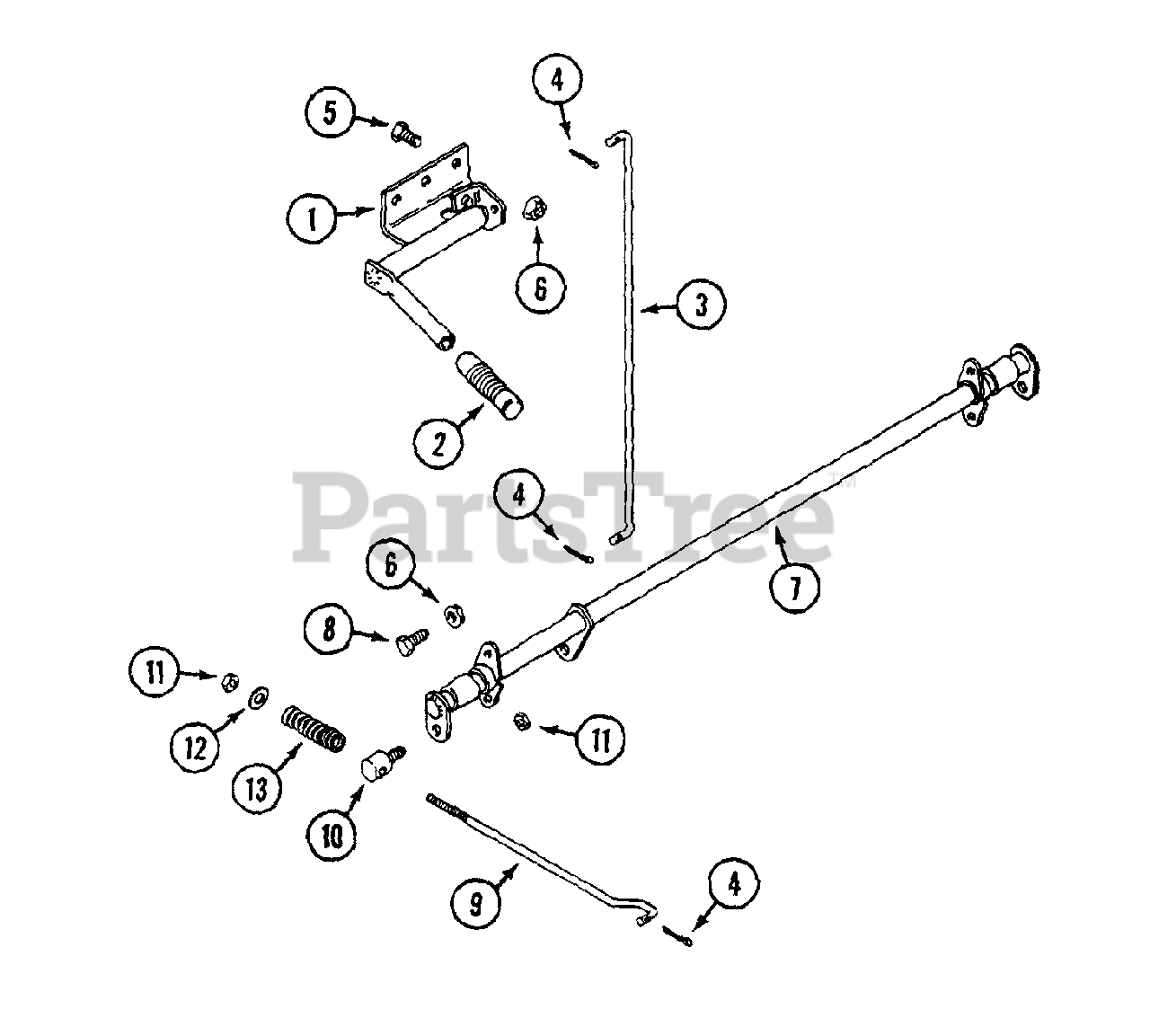

Parking Brake (Use S/N J136WG And After) Parts Diagram

  • Title
1

White Outdoor WD-C46596

LEVER - brake

$

$

Not available

2

White Outdoor WD-C37631

GRIP - handle

$

$

Not available

3

White Outdoor WD-C46601

ROD - brake lever

$

$

Not available

4

White Outdoor WD-132-332

PIN - cotter 3/32" x 1"

$

$

Not available

5

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

6

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

7

White Outdoor WD-C46602

SHAFT - brake

$

$

Not available

8

WD-113-2

BOLT - 1/4" - 20 x 5/8"

$

$

Not available

9

White Outdoor WD-C37733

ROD - brake caliper

$

$

Not available

10

White Outdoor WD-C37724

COLLAR - caliper rod

$

$

Not available

11

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

12

White Outdoor WD-195-102

WASHER - 5/16" x 3/4"

$

$

Not available

13

White Outdoor WD-C37725

SPRING - compression

$

$

Not available
