FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Mulching Kits - For 52" Deck(W815, W873) & 62" Deck(W816, W874) Parts Diagram

Front-Mount Riding Mower

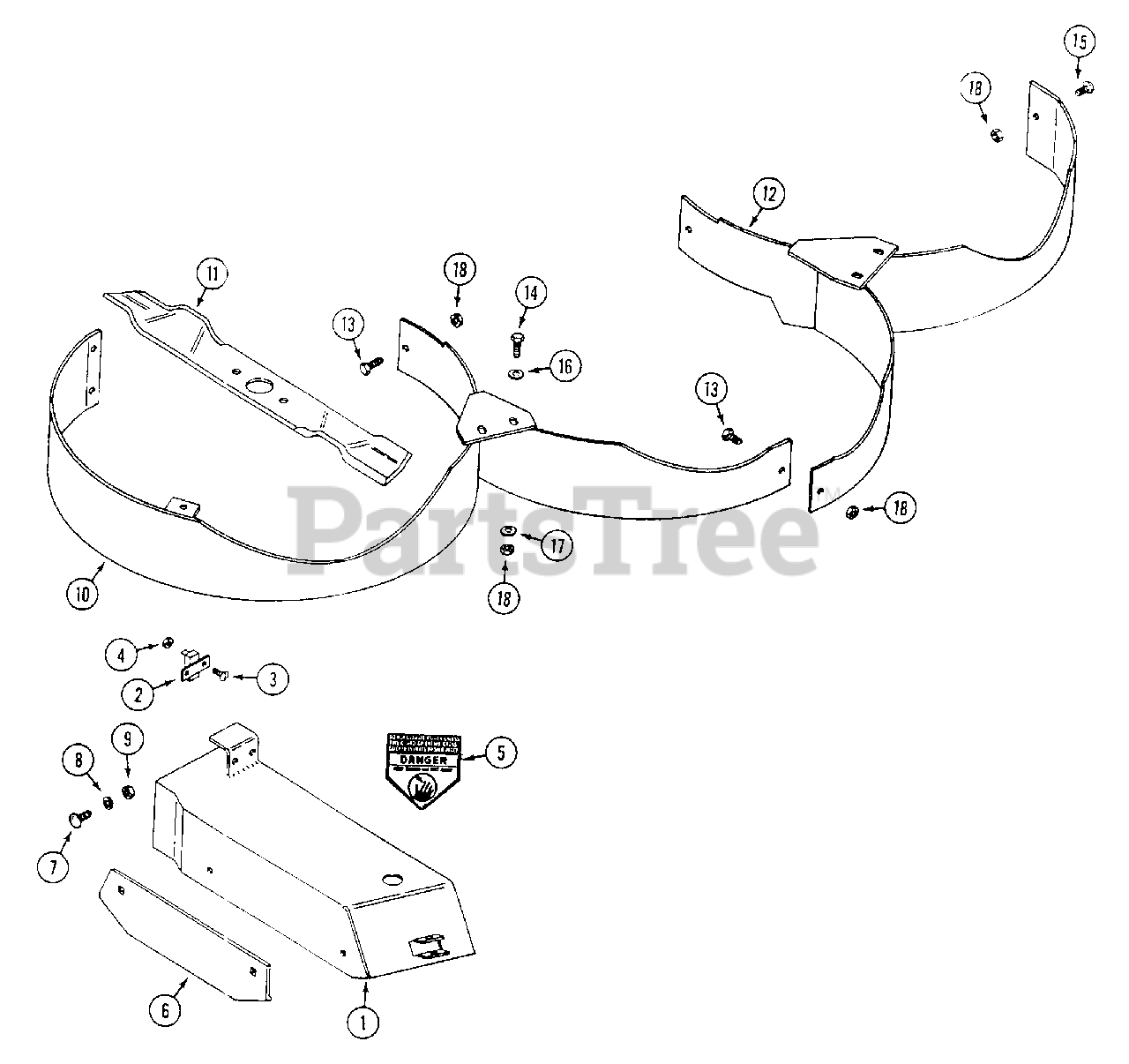

Mulching Kits - For 52" Deck(W815, W873) & 62" Deck(W816, W874) Parts Diagram

  • Title
1

WD-C45238

CAP - end

Note: (For W873 deck)

$

$

Not available

WD-C46746

CAP - end

Note: (For W815 deck)

$

$

Not available

WD-C45512

CAP - end

Note: (For W816, W874 deck) shown

$

$

Not available

2

White Outdoor WD-C37505

BREAKER - 10 amp

$

$

Not available

3

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

4

White Outdoor WD-193-1000

NUT - #10 - 32 lock

$

$

Not available

5

White Outdoor WD-C37494

DECAL - "Danger"

$

$

Not available

6

White Outdoor WD-C37956

SHOE - skid

Note: (For W815, W816, W874 deck)

$

$

Not available

White Outdoor WD-C46701

SHOE - skid

Note: (For W815 deck)

$

$

Not available

7

White Outdoor WD-111-132

BOLT - 5/16" - 18 x 3/4" carriage

$

$

Not available

8

White Outdoor WD-192-20

WASHER - lock 5/16"

$

$

Not available

9

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

10

WD-C46749

BAFFLE - R.H.

Note: (For W815 deck)

$

$

Not available

WD-C45516

BAFFLE - R.H.

Note: (For W816, W874 deck) shown

$

$

Not available

WD-C45240

BAFFLE - R.H.

Note: (For W873 deck)

$

$

Not available

11

White Outdoor WD-C45901

BLADE - 18"

Note: (For W873 deck before S/N 011312080)

$

$

Not available

White Outdoor WD-C46050

BLADE - 21.5

Note: (For W874 deck before S/N 011306009)

$

$

Not available

White Outdoor WD-C45248

BLADE - (18")

Note: (For W815 deck) (For W873 deck S/N 011312080 and after)

$

$

Not available

White Outdoor WD-C45511

BLADE - (21.5")

Note: (For W816 deck, W874 deck S/N 011306009 and after) shown

$

$

Not available

12

WD-C45244

BAFFLE - L.H.

Note: (For W873 deck)

$

$

Not available

WD-C46751

BAFFLE - L.H.

Note: (For W815 deck)

$

$

Not available

WD-C45519

BAFFLE - L.H.

Note: (For W816, W874 deck) shown

$

$

Not available

13

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

14

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

15

White Outdoor WD-C42056

SCREW - 5/16" x 18 x 5/8"

$

$

Not available

16

WD-195-521

WASHER - 5/16" x 5/8"

$

$

Not available

17

White Outdoor WD-195-103

WASHER - 3/8" x 7/8"

$

$

Not available

18

WD-131-69

NUT - 5/16" - 18 lock

$

$

Not available
