FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Model W874 Mower Deck 62" Mower Deck And Attaching Parts Parts Diagram

Front-Mount Riding Mower

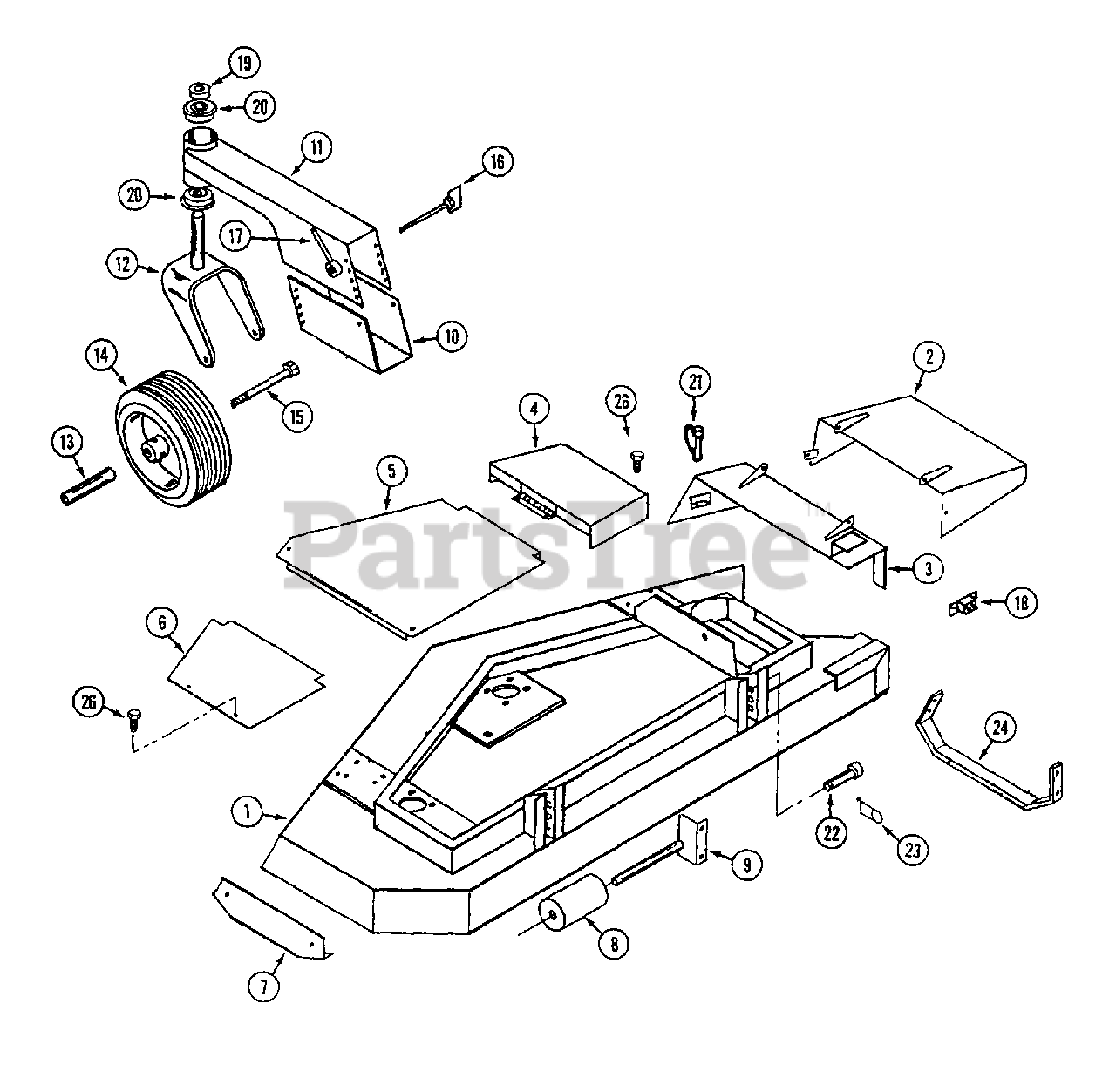

Model W874 Mower Deck 62" Mower Deck And Attaching Parts Parts Diagram

  • Title

1

White Outdoor WD-C44088

DECK - 62"
(Superseded to WD-CS48614)

$

$

Not available

2

White Outdoor WD-C41396

CHUTE - foot guard

$

$

Not available

3

White Outdoor WD-C41400

MOUNT - foot guard

$

$

Not available

4

White Outdoor WD-C41392

COVER - pulley

$

$

Not available

5

White Outdoor WD-C41378

COVER - center

$

$

Not available

6

White Outdoor WD-C41373

COVER - L.H.

$

$

Not available

7

White Outdoor WD-C37956

SHOE - skid L.H.

$

$

Not available

8

White Outdoor WD-C37910

ROLLER - anti-skid

$

$

Not available

9

White Outdoor WD-C37911

SHAFT - roller

$

$

Not available

10

White Outdoor WD-C37912

BRACKET - gauge wheel mount

Note: (Use before S/N 011511001)

$

$

Not available

White Outdoor WD-C45541

BRACKET - gauge wheel mount

Note: (Use S/N 011511001 and after)

$

$

Not available

11

White Outdoor WD-C45542

MOUNT - gauge wheel

Note: (Use S/N 011511001 and after)

$

$

Not available

~NSS

MOUNT - gauge wheel

Note: (Before S/N 011511001 use C45541 and C45542)

$

$

Not available

12

White Outdoor WD-C45842

FORK - gauge wheel

$

$

Not available

13

White Outdoor WD-C37915

AXLE - gauge wheel

$

$

Not available

14

White Outdoor WD-C37916

WHEEL - gauge

$

$

Not available

White Outdoor WD-C29145

TIRE - 11 x 4.00 - 5

$

$

Not available

White Outdoor WD-C44496

RIM 5"

$

$

Not available

White Outdoor WD-C44499

BEARING - wheel

$

$

Not available

15

White Outdoor WD-113-2419

BOLT - 1/2" - 13 x 6-1/2"

$

$

Not available

16

White Outdoor WD-C37920

BOLT - wing

$

$

Not available

17

White Outdoor WD-C37921

NUT - gauge wheel handle

$

$

Not available

18

White Outdoor WD-C37505

BREAKER - circuit - 10 amp

$

$

Not available

19

White Outdoor WD-C37860

COLLAR - set 1"

$

$

Not available

20

White Outdoor WD-C37824

BEARING - 1"

$

$

Not available

21

White Outdoor WD-C37922

PIN - "fas-tatch"

$

$

Not available

22

White Outdoor WD-141-56

PIN - deck

$

$

Not available

23

White Outdoor WD-C29029

PIN - cotter, hair

$

$

Not available

24

White Outdoor WD-C37957

SHOE - skid R.H.

$

$

Not available

26

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available
