FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Model 816 Mower Deck - 62" Deck Drive Parts Diagram

Front-Mount Riding Mower

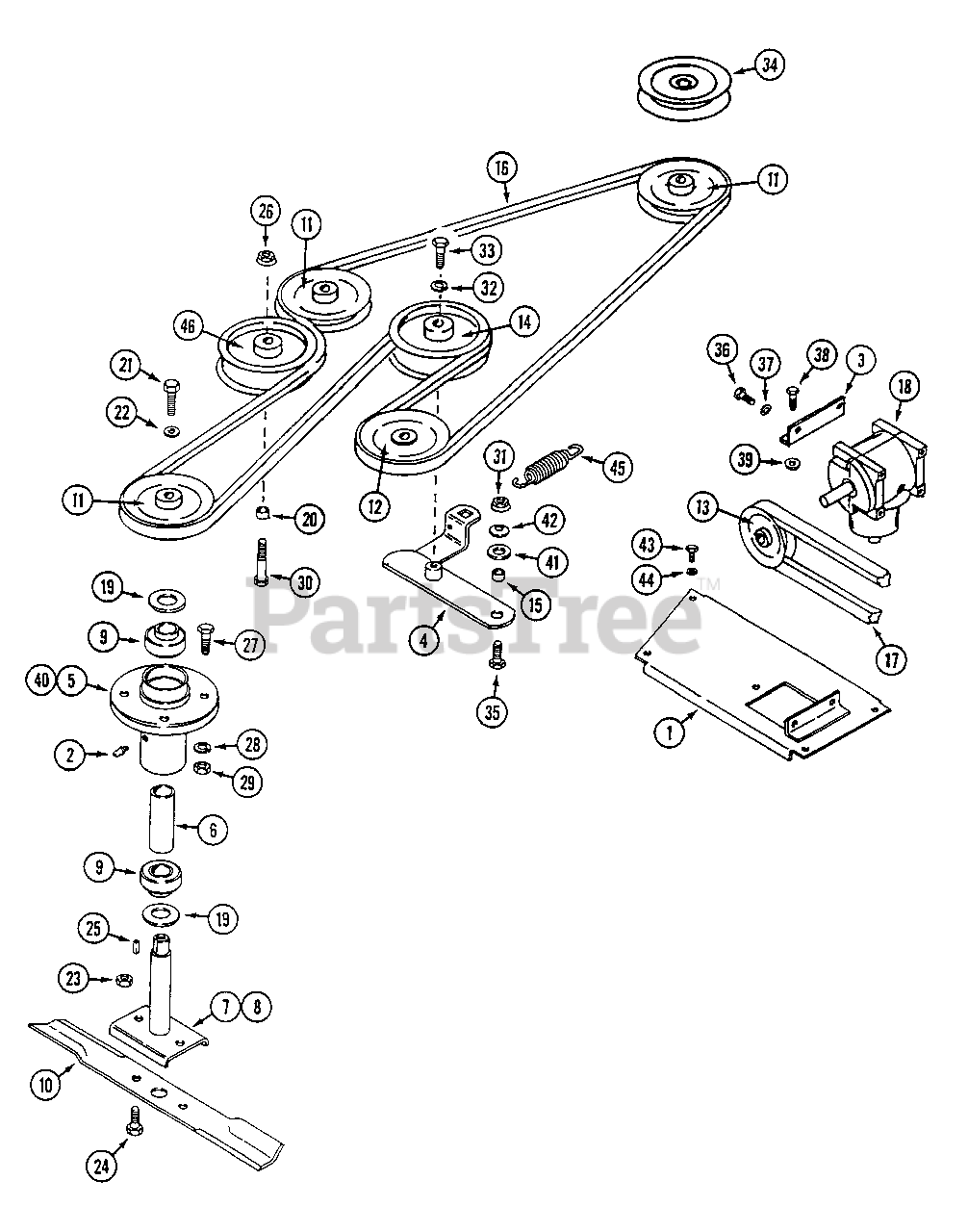

Model 816 Mower Deck - 62" Deck Drive Parts Diagram

  • Title

1

WD-C46720

MOUNT - gear box

$

$

Not available

2

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available

3

White Outdoor WD-C37877

ANGLE - gear box mount

$

$

Not available

4

WD-C46718

ARM - idler

$

$

Not available

5

White Outdoor WD-C46683

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-C46685

SPACER - spindle

$

$

Not available

7

White Outdoor WD-C46680

SHAFT - spindle, short

$

$

Not available

8

White Outdoor WD-C46778

SHAFT - spindle, long

Note: (Used only when vac is installed)

$

$

Not available

9

White Outdoor WD-C46686

BEARING - spindle

$

$

Not available

10

White Outdoor WD-C44138

BLADE

$

$

Not available

White Outdoor WD-C45511

BLADE - mulching

Note: (Not shown)

$

$

Not available

11

White Outdoor WD-C37950

PULLEY - spindle

$

$

Not available

12

White Outdoor WD-C37932

PULLEY - gear box output

Note: (Use locktite)

$

$

Not available

13

White Outdoor WD-C37892

PULLEY - gear box input

Note: (Align with engine and use locktite)

$

$

Not available

14

White Outdoor WD-C46687

PULLEY - idler 5"

$

$

Not available

15

White Outdoor WD-C16573

SPACER

$

$

Not available

16

White Outdoor WD-C38929

BELT - deck

$

$

Not available

17

White Outdoor WD-C44241

BELT - drive

$

$

Not available

18

White Outdoor WD-C37898

GEAR BOX - angle drive

$

$

Not available

19

White Outdoor WD-C29575

WASHER - spacer

$

$

Not available

20

White Outdoor WD-C46726

SPACER

$

$

Not available

21

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

Note: (Use locktite)

$

$

Not available

22

White Outdoor WD-C45846

WASHER - 3/8", 10 ga.

$

$

Not available

23

White Outdoor WD-131-1216

NUT - lock 3/8"

$

$

Not available

24

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1"

$

$

Not available

25

White Outdoor WD-C29581

KEY - 3/16" x 3/16" x 1"

$

$

Not available

26

White Outdoor WD-131-1352

NUT - 3/8" flange lock

$

$

Not available

27

White Outdoor WD-113-312

BOLT - 7/16" - 14 X 1-1/4"

$

$

Not available

28

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

29

WD-129-104

NUT - 7/16" - 14

$

$

Not available

30

White Outdoor WD-113-213

BOLT - 3/8" - 16 x 2-1/4"

$

$

Not available

31

White Outdoor WD-131-1352

NUT - 3/8" flange lock

$

$

Not available

32

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor WD-113-208

BOLT - 3/8" - 16 x 1-1/4"

$

$

Not available

34

White Outdoor WD-C46301

PULLEY - vac drive

Note: (Used only when vac is installed)

$

$

Not available

35

White Outdoor WD-113-207

BOLT - 3/8" - 16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

37

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

38

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

39

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor WD-C46682

HOUSING ASSEMBLY - spindle

Note: (Includes ref. 2, 5, 6, 9)

$

$

Not available

41

White Outdoor WD-195-541

WASHER - 5/8"

$

$

Not available

42

White Outdoor WD-C28263

WASHER - spring
(Superseded to 736-0331)

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

44

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

45

White Outdoor WD-C14482

SPRING - tension

$

$

Not available

46

White Outdoor WD-C45649

PULLEY - idler, idler 5-1/2"

$

$

Not available
