FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Hydrostatic Pump-ZT Drive Parts Diagram

Front-Mount Riding Mower

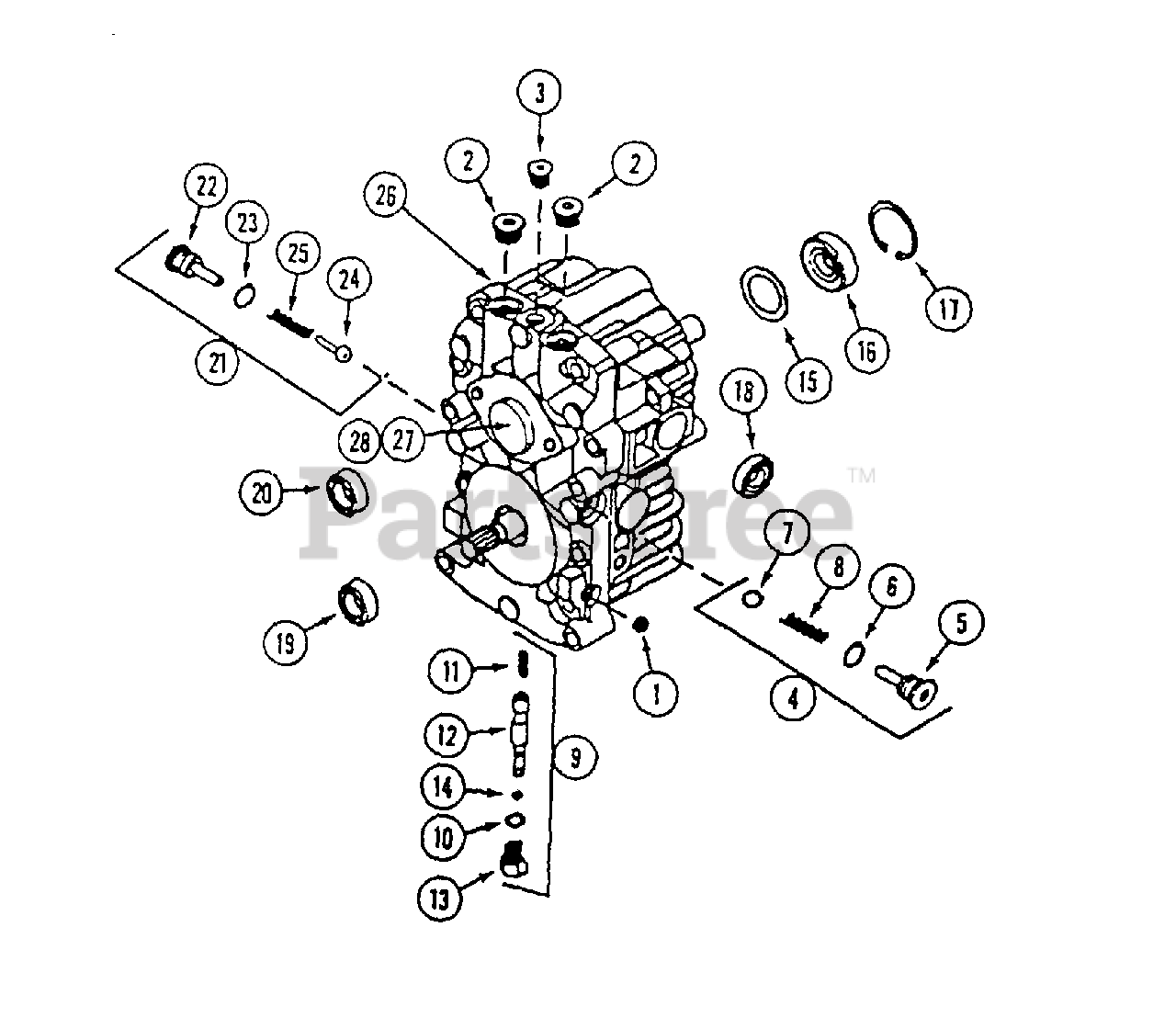

Hydrostatic Pump-ZT Drive Parts Diagram

  • Title

White Outdoor WD-C45398

PUMP - hydrostatic L.H. (CW)

$

$

Not available

White Outdoor WD-C45399

PUMP - hydrostatic R.H. (CCW)

$

$

Not available

1

WD-C34124

PLUG - pipe

$

$

Not available

2

WD-C34125

PLUG - 9/16" - 18

$

$

Not available

3

WD-C34126

PLUG - 7/16" - 20

$

$

Not available

4

White Outdoor WD-C43690

KIT - check valve (with check ball) top

$

$

Not available

5

~NSS

PLUG - check valve

$

$

Not available

6

~NSS

"O" RING - .078" x .468"

$

$

Not available

7

~NSS

BALL - check

$

$

Not available

8

~NSS

SPRING

$

$

Not available

9

WD-C34128

KIT - by pass

$

$

Not available

10

~NSS

"O" RING - .072 x .351

$

$

Not available

11

~NSS

SPRING

$

$

Not available

12

~NSS

SPOOL - by pass

$

$

Not available

13

~NSS

PLUG - by pass

$

$

Not available

14

~NSS

"O" RING

$

$

Not available

15

~NSS

SPACER

$

$

Not available

16

~NSS

SEAL - lip

$

$

Not available

17

~NSS

RING - retaining

$

$

Not available

18

~NSS

SEAL - lip

$

$

Not available

19

~NSS

SEAL - lip

$

$

Not available

20

~NSS

SEAL - lip

$

$

Not available

21

White Outdoor WD-C45408

KIT - check valve (with poppet) bottom

$

$

Not available

22

~NSS

PLUG - check valve

$

$

Not available

23

~NSS

"O" RING - .078" x .468"

$

$

Not available

24

~NSS

POPPET - check

$

$

Not available

25

~NSS

SPRING

$

$

Not available

26

WD-C43751

GASKET - body

$

$

Not available

27

WD-C43750

KIT - charge pump

$

$

Not available

28

WD-C43749

O-RING - charge pump cover

$

$

Not available

WD-C34129

KIT - seal

Note: (Includes ref. 6, 10, 14, 15, 16, 17, 18, 19 and 20)

$

$

Not available
