FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Electric Deck Lift - Cylinder Style Parts Diagram

Front-Mount Riding Mower

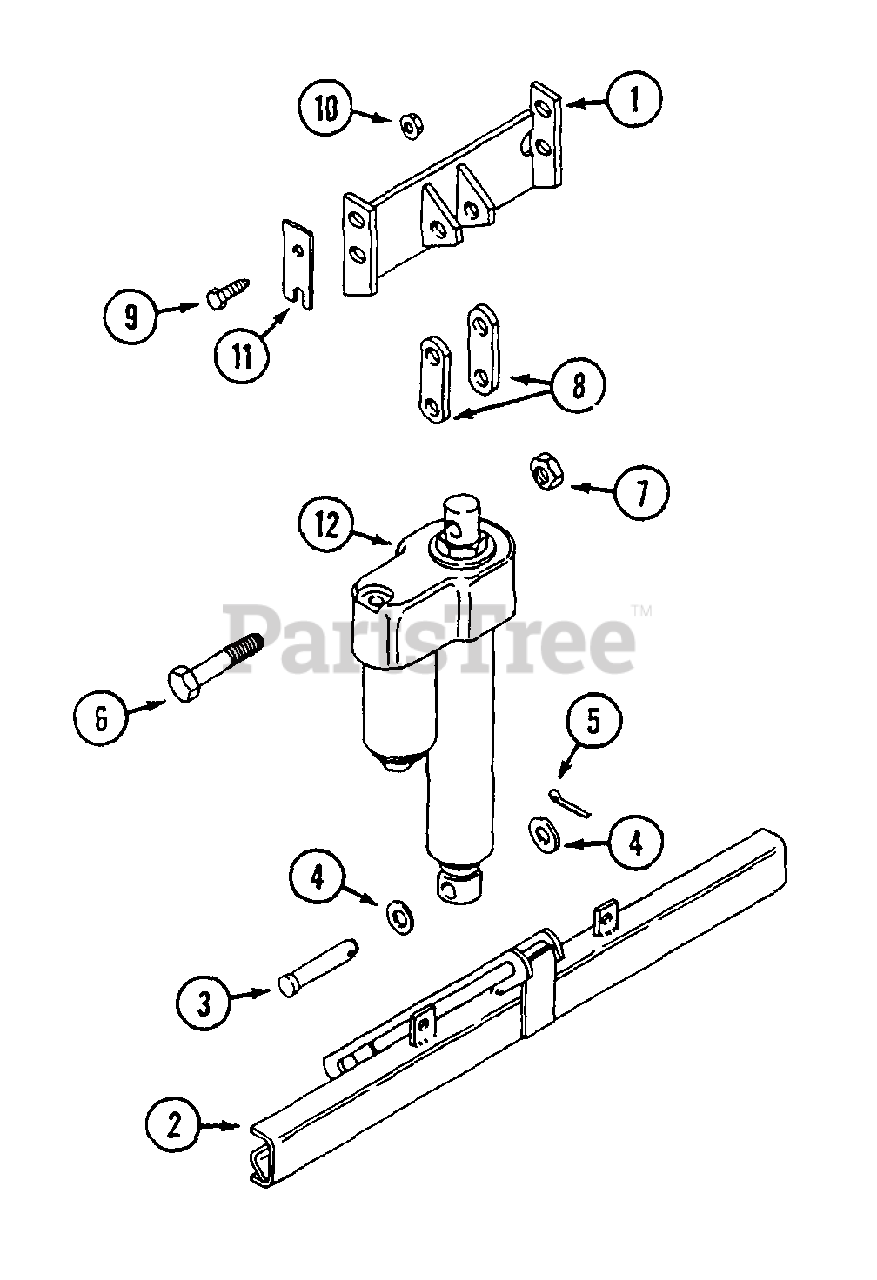

Electric Deck Lift - Cylinder Style Parts Diagram

  • Title
1

WD-C45697

MOUNT - cylinder

$

$

Not available

2

$

$

Not available

3

White Outdoor WD-C29804

PIN - clevis 1/2" x 2-1/2"

$

$

Not available

4

WD-195-2067

WASHER - 1/2"

$

$

Not available

5

White Outdoor WD-132-318

PIN - cotter 5/32" x 1"

$

$

Not available

6

White Outdoor WD-113-426

BOLT - 1/2" - 13 x 2-3/4"

$

$

Not available

7

White Outdoor WD-131-1182

NUT - 1/2" - 13 lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

8

WD-C45768

LINK - spacer

$

$

Not available

9

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

10

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor WD-C45766

SHIM - cylinder mount

$

$

Not available

12

White Outdoor WD-C45706

CYLINDER - lift

$

$

Not available
