FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Drive Pulley And Cross Shaft (Transmission) (Use S/N J136WG & Up) Parts Diagram

Front-Mount Riding Mower

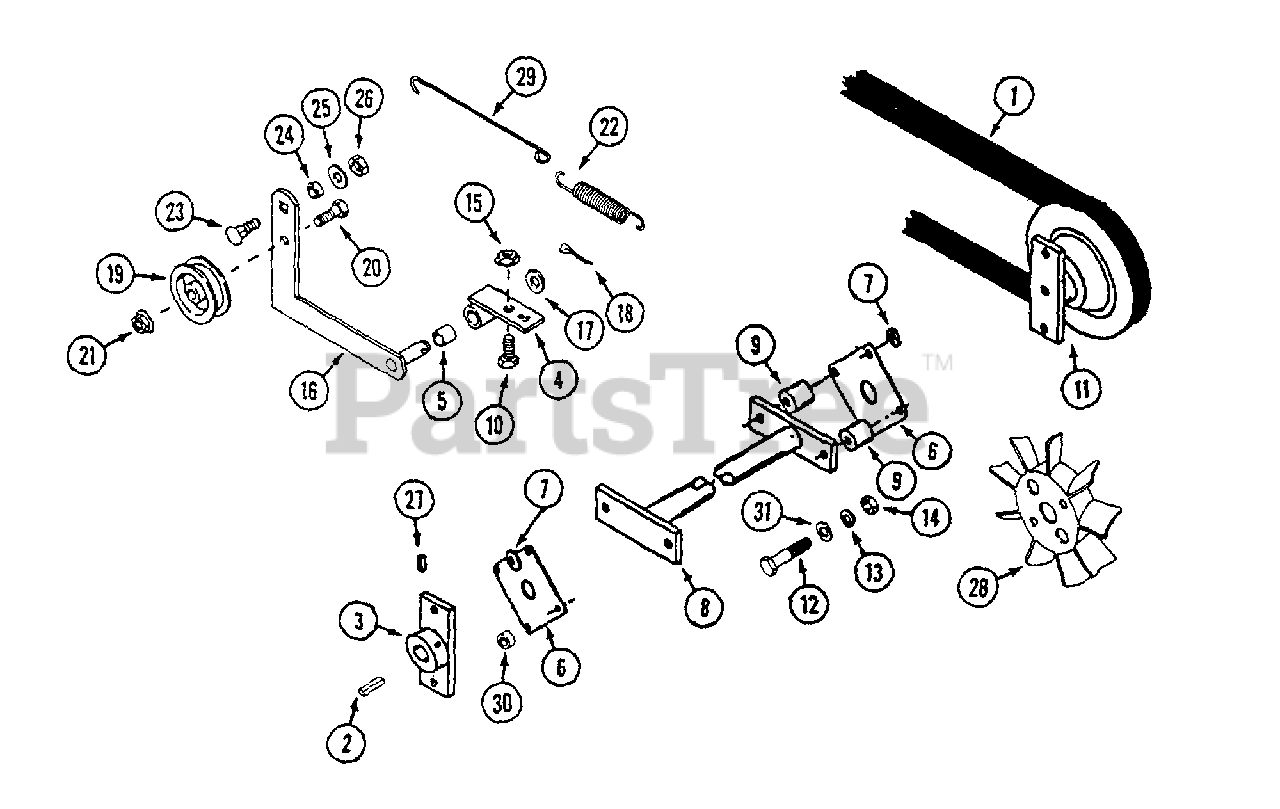

Drive Pulley And Cross Shaft (Transmission) (Use S/N J136WG & Up) Parts Diagram

  • Title
1

White Outdoor WD-C46612

BELT - transmission drive

$

$

Not available

2

White Outdoor WD-C37725

KEY - 5 x 5 x 25 mm

$

$

Not available

3

White Outdoor WD-C46092

HUB - drive plate

$

$

Not available

4

White Outdoor WD-C46100

MOUNT - idler

$

$

Not available

$

$

Not available

6

White Outdoor WD-C37700

PLATE - drive

$

$

Not available

7

White Outdoor WD-C37704

WASHER - 5/16" 10 ga.

$

$

Not available

8

WD-C46097

SHAFT - cross

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-113-207

BOLT - 3/8" - 16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor WD-C46088

PULLEY - drive

Note: (Includes drive plate)

$

$

Not available

12

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

12

WD-113-104

BOLT - 5/16" - 18 x 1-1/4"

$

$

Not available

12

White Outdoor WD-113-110

BOLT - 5/16" - 18 x 2-1/4"

$

$

Not available

13

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

14

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

15

White Outdoor WD-131-938

NUT - 3/8 - 16 flange lock

$

$

Not available

16

$

$

Not available

17

WD-195-2067

WASHER - 1/2" x 7/8"

$

$

Not available

18

WD-132-310

PIN - cotter - 1/8" x 1"

$

$

Not available

19

White Outdoor WD-C15672

PULLEY - idler

$

$

Not available

20

White Outdoor WD-113-209

BOLT - 3/8" - 16 x 1-1/2"

$

$

Not available

21

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

22

White Outdoor WD-C36998

SPRING - tension

$

$

Not available

23

WD-111-342

BOLT - carriage 3/8" - 16 x 1"

$

$

Not available

24

WD-C14768

SPACER - 3/8" x 1/2"

$

$

Not available

25

WD-196-103

WASHER - 3/8"

$

$

Not available

26

White Outdoor WD-131-1181

NUT - 3/8" - 16 lock

$

$

Not available

27

White Outdoor WD-C32199

SETSCREW - 5/16" - 18 x 5/16"

$

$

Not available

28

White Outdoor WD-C46608

FAN - CCW L.H. Side

$

$

Not available

28

White Outdoor WD-C46792

FAN - CCW R.H. Side

$

$

Not available

29

White Outdoor WD-C46658

LINK - idler spring

$

$

Not available

30

White Outdoor WD-C37702

SPACER - 1/4"

$

$

Not available

31

White Outdoor WD-195-102

WASHER - 5/16"

$

$

Not available
