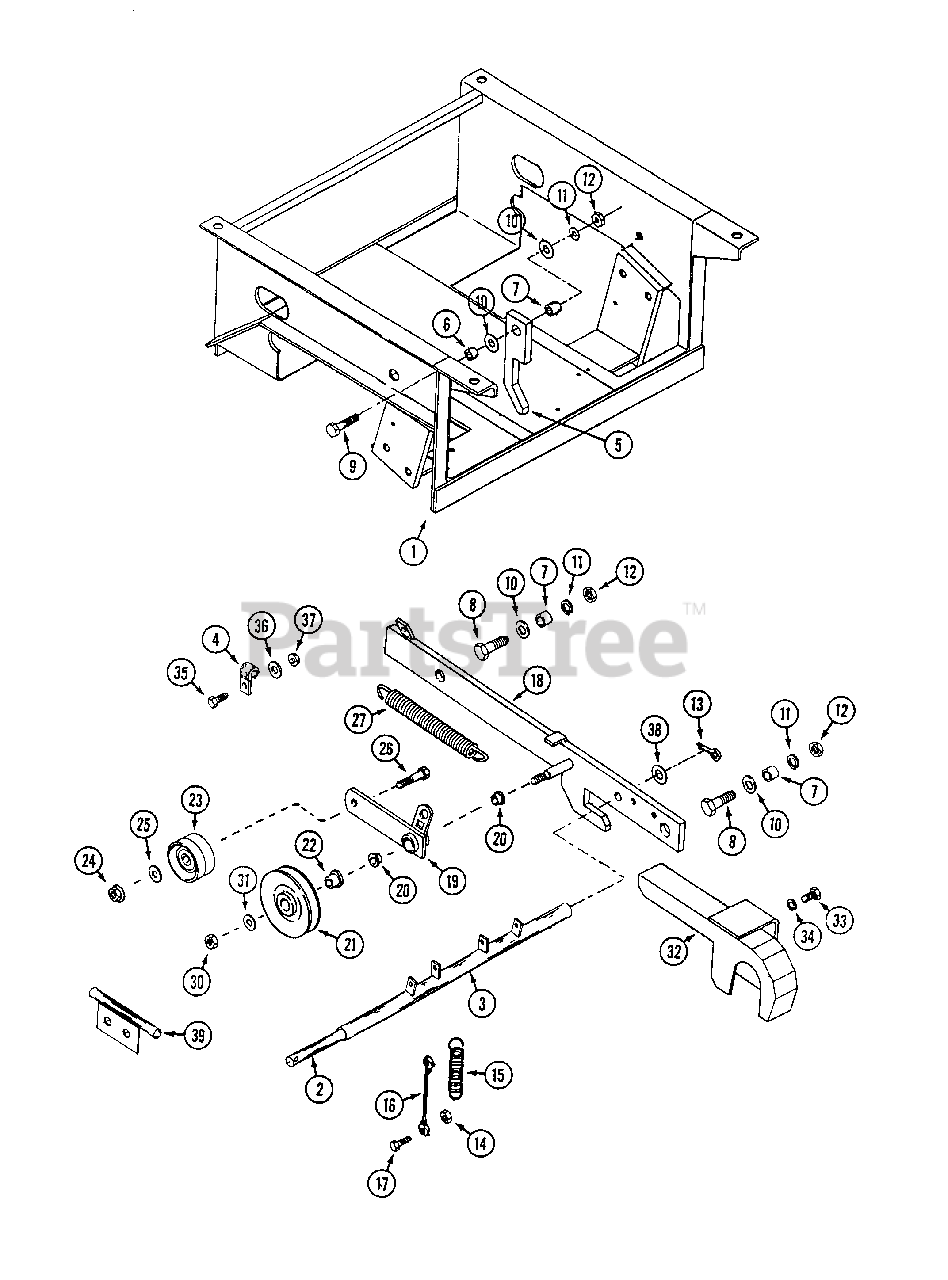

FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Base Assembly Parts Diagram

Front-Mount Riding Mower

Base Assembly Parts Diagram

  • Title

1

White Outdoor WD-C42892

BASE

Note: (Use before S/N J136WG)

$

$

Not available

1

WD-C46530

BASE

Note: (Use S/N J136WG and after)

$

$

Not available

2

WD-C37578

PIN - cross bar

$

$

Not available

3

White Outdoor WD-C37579

BAR - cross

$

$

Not available

4

WD-C32455

CLIP - "J"

Note: (Use S/N J136WG and after)

$

$

Not available

5

White Outdoor WD-C37583

LOCK - forward nose down

$

$

Not available

6

White Outdoor WD-C37576

BUSHING - pivot (3/8" long)

$

$

Not available

7

White Outdoor WD-C46622

BUSHING - pivot (1/2" long)

Note: (Use S/N J136WG and after)

$

$

Not available

7

White Outdoor WD-C37586

BUSHING - pivot (1/2" long)

Note: (Use before S/N J136WG)

$

$

Not available

8

White Outdoor WD-113-410

BOLT - 1/2" - 13 x 1-1/2"

$

$

Not available

9

White Outdoor WD-113-441

BOLT - 1/2" - 13 x 2-1/4"

$

$

Not available

10

White Outdoor WD-195-105

WASHER - 1/2"

$

$

Not available

11

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

12

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

13

WD-132-310

PIN - cotter 1/8" x 1"

$

$

Not available

14

White Outdoor WD-131-71

NUT - lock 1/4" - 20

$

$

Not available

15

White Outdoor WD-C37815

SPRING - lift assist

$

$

Not available

16

White Outdoor WD-C37816

CABLE - lift

$

$

Not available

17

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

18

White Outdoor WD-C45099

ARM - deck L.H.

Note: (Use before S/N J136WG)

$

$

Not available

18

White Outdoor WD-C44250

ARM - deck R.H.

Note: (Use S/N J136WG and after)

$

$

Not available

18

White Outdoor WD-C46620

ARM - deck R.H..

Note: (Use S/N J136WG and after)

$

$

Not available

18

White Outdoor WD-C46616

ARM - deck L.H.

Note: (Use S/N J136WG and after). (Shown)

$

$

Not available

19

White Outdoor WD-C46623

ARM - idler

Note: (Use S/N J136WG and after)

$

$

Not available

19

White Outdoor WD-C45095

ARM - idler

Note: (Use before S/N J136WG)

$

$

Not available

20

White Outdoor WD-C27501

BEARING - flange

$

$

Not available

21

White Outdoor WD-C25370

PULLEY - "V" idler

$

$

Not available

22

White Outdoor WD-C45102

BUSHING - pulley

$

$

Not available

23

White Outdoor WD-C45121

PULLEY - idler, flat
(Superseded to WD-C48400)

$

$

Not available

24

White Outdoor WD-131-938

NUT - 3/8" - 16 flange lock

$

$

Not available

25

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

26

White Outdoor WD-113-219

BOLT - 3/8" - 16 x 2"

$

$

Not available

27

White Outdoor WD-C44242

SPRING - extension

$

$

Not available

?28

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

?29

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor WD-131-1182

NUT - 1/2" - 13 lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor WD-195-533

WASHER -1/2"

$

$

Not available

32

White Outdoor WD-C46613

GUARD - belt

Note: (Use S/N J136WG and after)

$

$

Not available

32

White Outdoor WD-C44403

GUARD - belt

Note: (Use before S/N J136WG)

$

$

Not available

33

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

34

White Outdoor WD-192-20

LOCKWASHER

$

$

Not available

35

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

36

White Outdoor WD-195-102

WASHER - 5/16"

$

$

Not available

37

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor WD-195-106

WASHER - 9/16"

$

$

Not available

39

White Outdoor WD-C37577

TUBE - wire

Note: (Use before S/N J136WG)

$

$

Not available
