FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Mower Deck And Attaching Parts Parts Diagram

Front-Mount Riding Mower

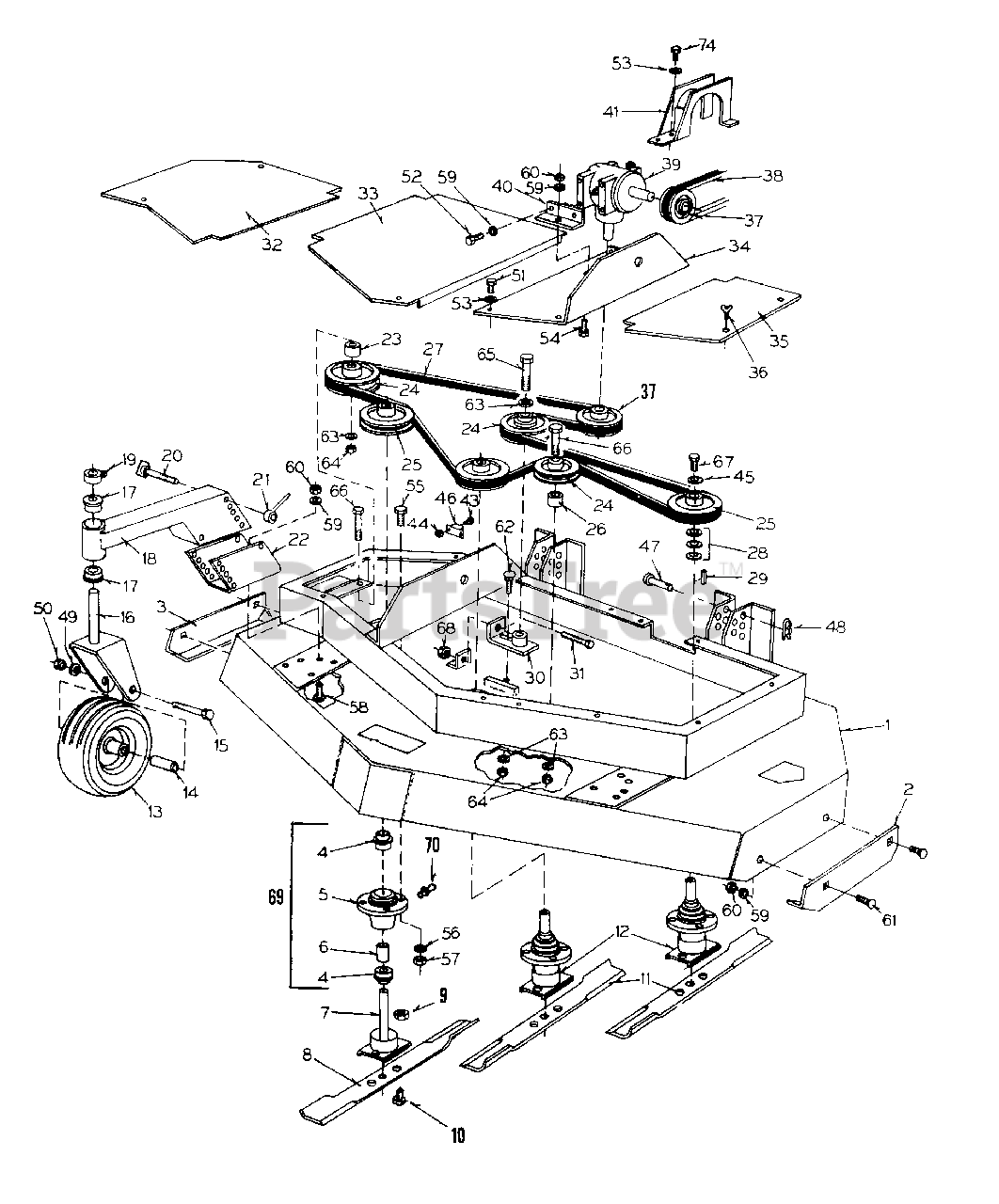

Mower Deck And Attaching Parts Parts Diagram

  • Title

1

WD-C44087

DECK - rear discharge 52"

$

$

Not available

2

White Outdoor WD-320-0014

SHOE - skid L.H.

$

$

Not available

3

White Outdoor WD-321-0003

SHOE - skid R.H.

$

$

Not available

4

~NSS

BEARING - spindle 7/8"

Note: (use C45886 (2) and C45884). Use before S/N 011502022

$

$

Not available

4

White Outdoor WD-C45886

BEARING - spindle 7/8"

Note: Use on S/N 011502023 and after.

$

$

Not available

5

White Outdoor WD-300-0025

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-300-0027

SPACER - spindle

Note: Use before S/N 011502022

$

$

Not available

6

White Outdoor WD-C45884

SPACER - spindle

Note: Use on S/N 011502023 and after.

$

$

Not available

7

White Outdoor WD-C44128

SHAFT - spindle L.H. rotation

$

$

Not available

8

White Outdoor WD-C44137

BLADE - L.H. rotation

$

$

Not available

9

White Outdoor WD-131-1216

NUT - 3/8" - 16 lock

$

$

Not available

10

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1

$

$

Not available

11

White Outdoor WD-C44136

BLADE - R.H. rotation

$

$

Not available

12

White Outdoor WD-C44128

SHAFT - spindle

$

$

Not available

13

White Outdoor WD-900-4004

WHEEL - gauge

$

$

Not available

White Outdoor WD-900-4006

TIRE - 11 x 4.00 - 5

$

$

Not available

White Outdoor WD-900-4005

RIM - 5"

$

$

Not available

White Outdoor WD-900-3505

BEARING - wheel

$

$

Not available

14

White Outdoor WD-200-0017

AXLE - gauge wheel
(Superseded to WD-C37915)

$

$

Not available

15

White Outdoor WD-900-6133

BOLT - 1/2" - 13 x 6-1/2"

$

$

Not available

16

White Outdoor WD-330-0007

FORK - gauge wheel

$

$

Not available

17

White Outdoor WD-900-3501

BEARING - 1"

$

$

Not available

18

White Outdoor WD-300-0043

MOUNT - gauge wheel

$

$

Not available

19

White Outdoor WD-900-5510

COLLAR - set 1"

$

$

Not available

20

White Outdoor WD-900-6096

BOLT - wing 3/8" - 16 x 4-1/2"

$

$

Not available

21

White Outdoor WD-900-6092

NUT - gauge wheel handle 3/8" - 16

$

$

Not available

22

White Outdoor WD-300-0044

BRACKET - gauge wheel mount

$

$

Not available

23

White Outdoor WD-321-0005

SPACER - idler pulley

$

$

Not available

24

White Outdoor WD-900-2558

PULLEY - idler 5"

$

$

Not available

25

White Outdoor WD-900-2557

PULLEY - spindle 4-1/2"

$

$

Not available

26

White Outdoor WD-300-0016

SPACER - idler pulley
(Superseded to WD-C37937)

$

$

Not available

27

White Outdoor WD-900-3028

BELT - deck

$

$

Not available

28

White Outdoor WD-900-6002

WASHER - spacer

$

$

Not available

29

White Outdoor WD-300-0021

KEY - 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

30

White Outdoor WD-300-0015

TIGHTENER - belt

$

$

Not available

31

White Outdoor WD-900-6034

BOLT - 1/4" - 20 x 4"

$

$

Not available

32

White Outdoor WD-321-0002

COVER - R.H.

$

$

Not available

33

White Outdoor WD-320-0002

COVER - center

$

$

Not available

34

White Outdoor WD-321-0001

MOUNT - gear box

$

$

Not available

35

White Outdoor WD-320-0001

COVER - L.H.

$

$

Not available

36

~NSS

SCREW - thumb 1/4" - 20 x 1/2"

Note: (use 113-3 and 192-19)

$

$

Not available

37

White Outdoor WD-900-2525

PULLEY - gear box input
(Superseded to WD-C37892)

$

$

Not available

38

White Outdoor WD-C44241

BELT - drive (1800C)

$

$

Not available

39

White Outdoor WD-900-5842

GEAR BOX - angle drive

Note: (See "Gear Box Curtis model" illustration and parts list for service.)

$

$

Not available

39

White Outdoor WD-C42775

GEAR BOX - angle drive

Note: (See "Gear Box Superior model" illustration and parts list for service.)

$

$

Not available

40

White Outdoor WD-310-0006

ANGLE - gear box mount

$

$

Not available

41

White Outdoor WD-311-0002

GUARD - belt

$

$

Not available

?42

White Outdoor WD-900-6106

BOLT - 3/8" - 24 x 1-1/4" L.H.

$

$

Not available

43

WD-C37597

SCREW - #10 - 32 x 1/2"

$

$

Not available

44

White Outdoor WD-900-6150

NUT - lock #10 - 32

$

$

Not available

45

White Outdoor WD-C45846

WASHER - spindle

$

$

Not available

46

White Outdoor WD-900-2044

BREAKER - circuit 10 amp

$

$

Not available

47

White Outdoor WD-900-5519

PIN - clevis 1/2" x 1-1/2"

$

$

Not available

48

White Outdoor WD-900-5520

PIN - cotter, hair

$

$

Not available

49

White Outdoor WD-900-6127

LOCKWASHER - 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

50

White Outdoor WD-C37593

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

51

WD-C38084

BOLT - 1 /4" - 20 x 34"

$

$

Not available

52

WD-C38085

BOLT - 5/16" - 18 x 1"

$

$

Not available

53

WD-C37757

LOCKWASHER - 1/4"

$

$

Not available

54

WD-C38086

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

55

WD-C38087

BOLT - 7/16" - 14 x 1-1/4"

$

$

Not available

56

White Outdoor WD-C38088

LOCKWASHER - 7/16"

$

$

Not available

57

White Outdoor WD-C38089

NUT - 7/16" - 14

$

$

Not available

58

WD-C38090

BOLT - carriage 5/16" - 18 x 1"

$

$

Not available

59

WD-C37748

LOCKWASHER - 5/16"

$

$

Not available

60

WD-C37560

NUT - 5/16"

$

$

Not available

61

WD-C38091

BOLT - carriage 5/16" - 18 x 3/4"

$

$

Not available

62

White Outdoor WD-C38092

BOLT - carriage 3/8" - 16 x 1"
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor WD-C37591

LOCKWASHER - 3/8"

$

$

Not available

64

White Outdoor WD-C37592

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor WD-C38093

BOLT - 3/8" - 16 x 1-1/4"

$

$

Not available

66

WD-C38094

BOLT - 3/8" - 16 x 2-1/2

$

$

Not available

67

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

$

$

Not available

68

White Outdoor WD-C37734

NUT - lock 1/4" - 20
(Superseded to 912-0291)

$

$

Not available

69

White Outdoor WD-C45859

HOUSING ASSEMBLY - spindle

Note: (includes ref. 4, 5 and 6)

$

$

Not available

70

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available

74

UNKNOWN

$

$

Not available
