FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Lift Lever Parts Diagram

Front-Mount Riding Mower

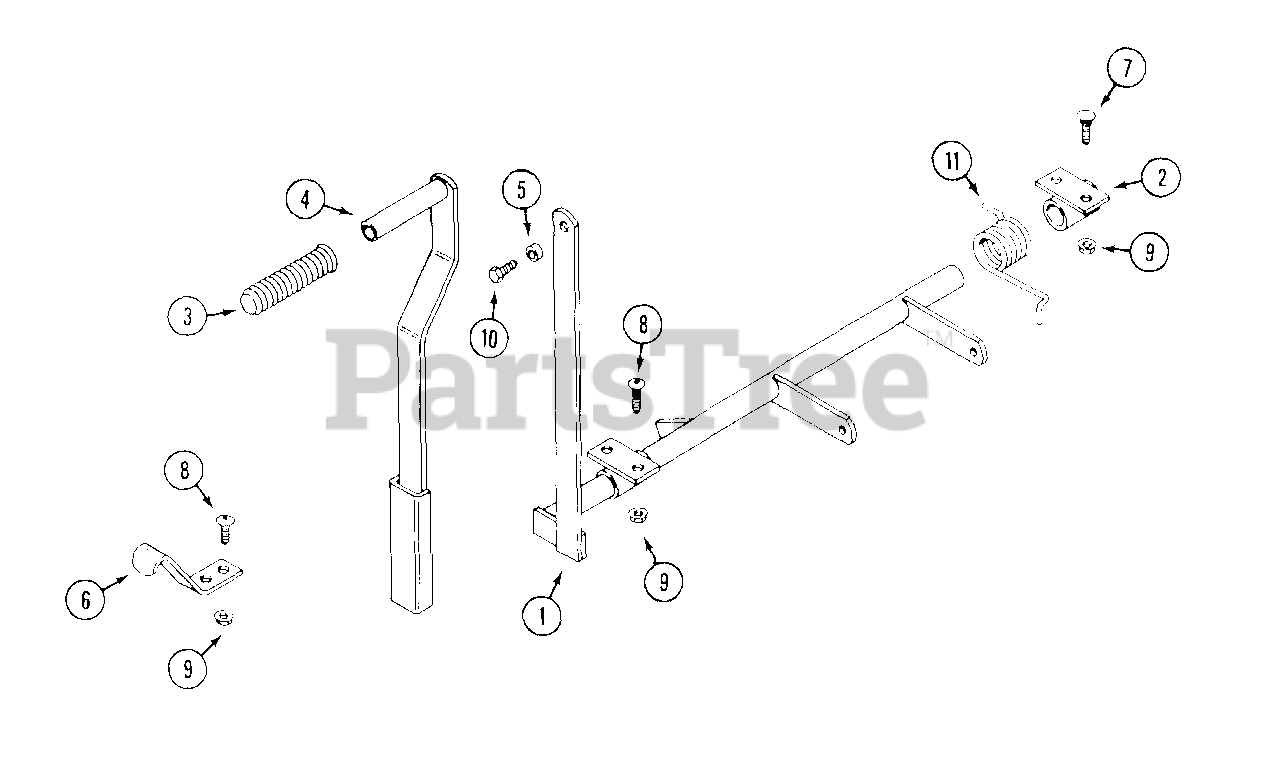

Lift Lever Parts Diagram

  • Title
1

$

$

Not available

2

$

$

Not available

3

White Outdoor WD-900-5500

GRIP - handle
(Superseded to WD-C37631)

$

$

Not available

4

White Outdoor WD-C44949

EXTENSION - lift lever, upper

$

$

Not available

$

$

Not available

6

White Outdoor WD-C44952

BRACKET - lever lock down

$

$

Not available

7

White Outdoor WD-111-132

BOLT - carriage 5/16" - 18 x 3/4"

$

$

Not available

8

WD-C44959

SCREW - 5/16" - 18 x 1" allen head

$

$

Not available

9

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

10

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

11

White Outdoor WD-C45120

SPRING - torsion

$

$

Not available
