FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Electrical System S/N A235WJ And After Parts Diagram

Front-Mount Riding Mower

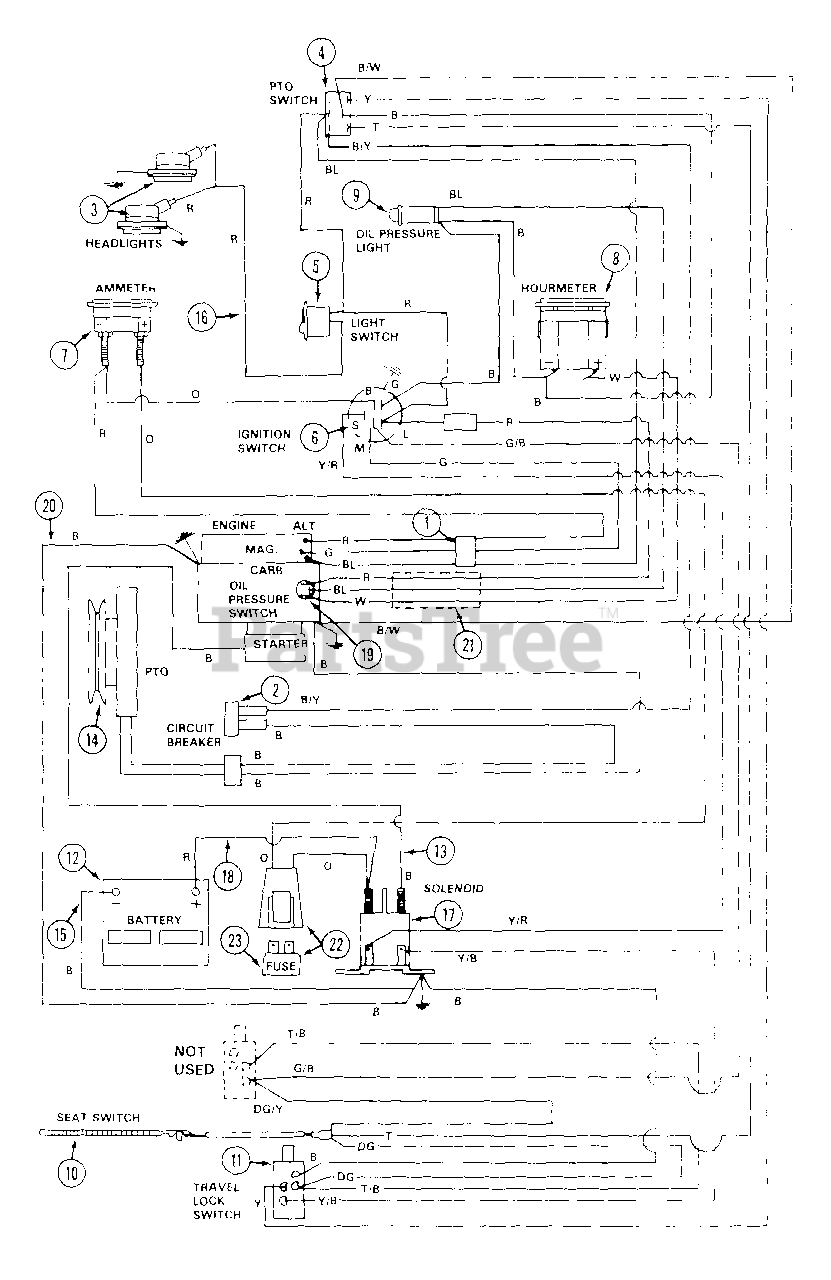

Electrical System S/N A235WJ And After Parts Diagram

  • Title

White Outdoor WD-C45535

HARNESS - wire main

$

$

Not available

1

White Outdoor WD-C45539

HARNESS - wire, alternator and magneto

$

$

Not available

2

White Outdoor WD-900-2044

BREAKER - circuit, 10 amp

$

$

Not available

$

$

Not available

White Outdoor WD-900-2024

LENS - headlight
(Superseded to WD-C32178)

$

$

Not available

White Outdoor WD-900-2025

BULB - headlight
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

$

$

Not available

WD-900-2068

GASKET - headlight

$

$

Not available

4

White Outdoor WD-C31937

SWITCH - PTO

Note: (also use C31619 Cap)

$

$

Not available

White Outdoor WD-C44469

NUT - 1/2" - 27 PTO switch retaining

$

$

Not available

White Outdoor WD-C31620

NUT - 1/2" - 27 (Black) PTO switch retaining

$

$

Not available

5

White Outdoor WD-C43044

SWITCH - headlight

$

$

Not available

6

White Outdoor WD-C30267

SWITCH - ignition

$

$

Not available

White Outdoor WD-C32407

KEY - ignition

$

$

Not available

WD-C32397

CAP - nut, ignition switch

$

$

Not available

WD-193-63

LOCKWASHER - 5/8"

$

$

Not available

WD-C32396

NUT - 5/8" - 32 ignition switch

$

$

Not available

$

$

Not available

8

WD-C42929

METER - hour

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-C45537

SWITCH - seat

$

$

Not available

11

White Outdoor WD-900-2029

SWITCH - safety

$

$

Not available

WD-182-525

SCREW - #10 - 32 x 3/8" (safety switch mount)

$

$

Not available

WD-192-18

LOCKWASHER - 3/16" (safety switch mount)

$

$

Not available

12

White Outdoor WD-C41010

BATTERY - 12 volt

$

$

Not available

13

White Outdoor WD-C44261

WIRE - starter

$

$

Not available

14

$

$

Not available

15

White Outdoor WD-900-2009

CABLE - ground

$

$

Not available

16

WD-C44075

WIRE - headlight

$

$

Not available

17

White Outdoor WD-C33024

SOLENOID - starting
(Superseded to WD-C33024P)

$

$

Not available

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4" (solenoid mounting)

$

$

Not available

White Outdoor WD-131-934

NUT - 1/4" - 20 (solenoid mounting)

$

$

Not available

WD-192-19

LOCKWASHER - 1/4" (solenoid studs)

$

$

Not available

WD-129-101

NUT 1/4" - 20 (solenoid studs)

$

$

Not available

18

White Outdoor WD-900-2010

WIRE - battery positive to solenoid

$

$

Not available

19

White Outdoor WD-900-5017

SWITCH - oil light
(Superseded to WD-C37531P)

$

$

Not available

20

White Outdoor WD-C41643

WIRE - ground

$

$

Not available

21

WD-C42240

HARNESS - oil pressure switch

$

$

Not available

22

WD-C31947

KIT - fuse holder

$

$

Not available

23

White Outdoor WD-C30260

FUSE - 30 amp

$

$

Not available
