FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Electrical System (Deck Lift) Parts Diagram

Front-Mount Riding Mower

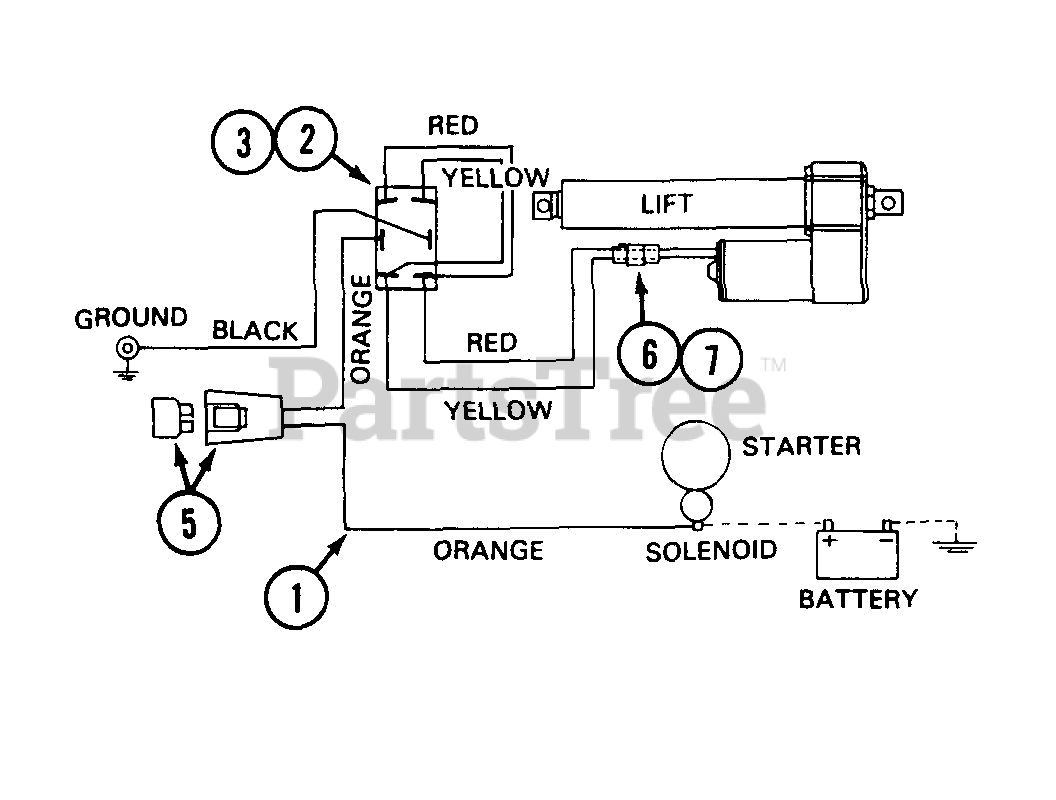

Electrical System (Deck Lift) Parts Diagram

  • Title
1

WD-C45705

HARNESS - wire

$

$

Not available

$

$

Not available

3

White Outdoor WD-C45780

NUT - 15/32" - 32 with boot (switch mounting)

$

$

Not available

?4

WD-C44495

DECAL - lift switch

$

$

Not available

5

WD-C30261

HOLDER - fuse

$

$

Not available

White Outdoor WD-C30260

FUSE - 30 amp

$

$

Not available

6

WD-C24813

CONNECTOR - wire harness

$

$

Not available

7

White Outdoor WD-C31948

CONNECTOR - lift actuator

$

$

Not available
