FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Drive Assembly R.H. Parts Diagram

Front-Mount Riding Mower

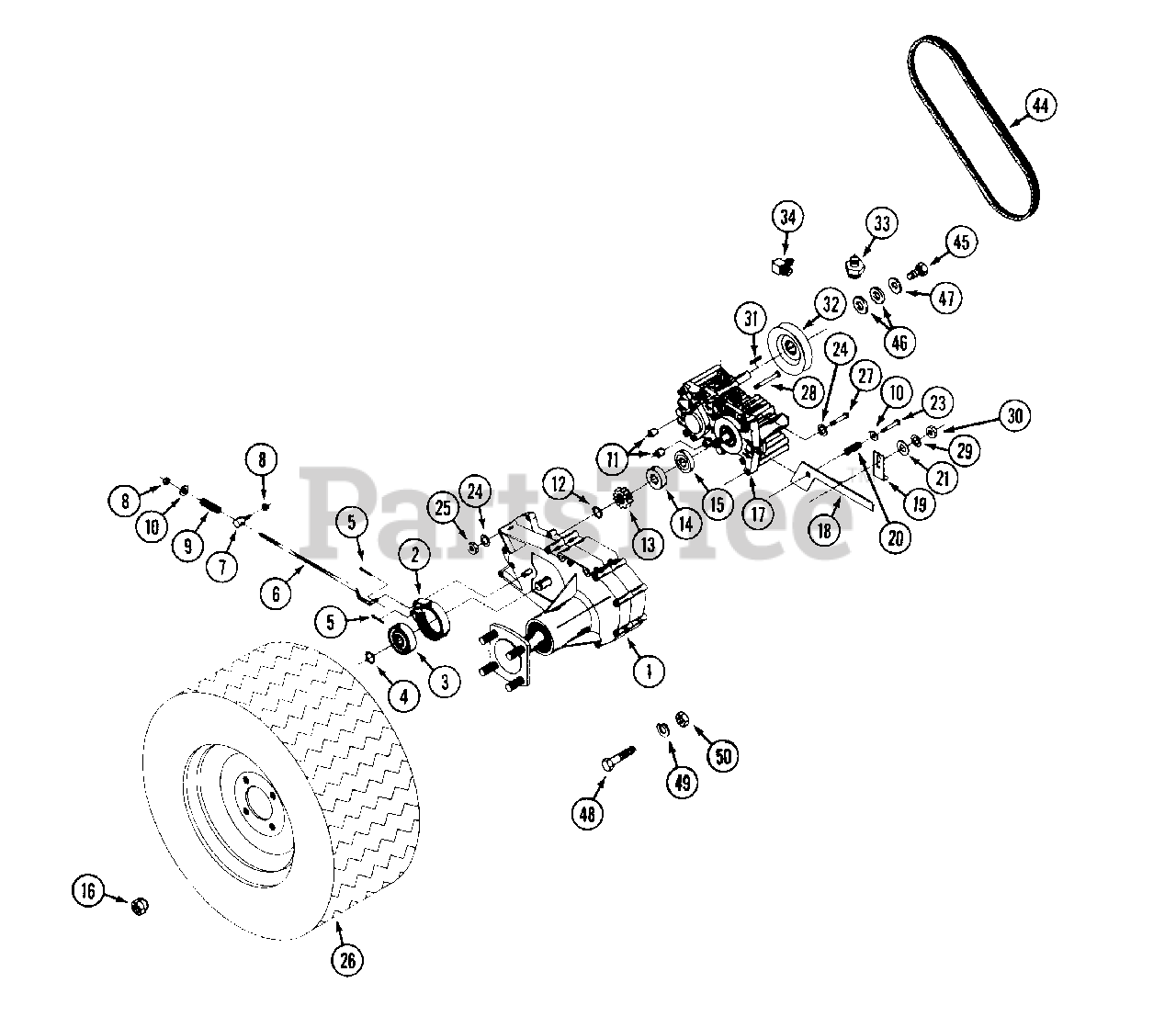

Drive Assembly R.H. Parts Diagram

  • Title

1

White Outdoor WD-900-8134

TRANSMISSION - ZT

$

$

Not available

2

White Outdoor WD-900-7050

BAND - brake

$

$

Not available

3

White Outdoor WD-900-7051

DRUM - brake

$

$

Not available

4

White Outdoor WD-900-7052

RING - snap

$

$

Not available

5

White Outdoor WD-132-332

PIN - cotter 1/8" x 1"

$

$

Not available

6

White Outdoor WD-114-0004

ROD - brake

$

$

Not available

7

White Outdoor WD-111-0014

COLLAR - brake rod

$

$

Not available

8

White Outdoor WD-131-71

NUT - lock 1/4" - 20

$

$

Not available

9

White Outdoor WD-900-5722

SPRING

$

$

Not available

10

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

11

White Outdoor WD-900-7045

SPACER

$

$

Not available

12

White Outdoor WD-900-7046

RING - snap
(Superseded to 716-0865)

$4.49

$

In Stock, only 1 left!

0

13

White Outdoor WD-900-7047

GEAR

$

$

Not available

14

White Outdoor WD-900-7048

BEARING
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

15

White Outdoor WD-900-7049

SPACER

$

$

Not available

16

White Outdoor WD-900-6138

NUT - lug 1/2" - 20

$

$

Not available

17

White Outdoor WD-C45399

PUMP - hydro R.H.

$

$

Not available

18

WD-C45166

LEVER - transmission dump R.H.

$

$

Not available

19

WD-114-0001

BRACKET - dump lever stop

$

$

Not available

20

White Outdoor WD-900-6501

SPRING - compression

$

$

Not available

21

White Outdoor WD-195-103

WASHER - 3/8"

$

$

Not available

23

WD-900-6019

BOLT - dump valve

$

$

Not available

24

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

25

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

26

White Outdoor WD-900-4048

WHEEL ASSEMBLY

$

$

Not available

White Outdoor WD-900-4042

TIRE - 18 x 9.50 - 8

$

$

Not available

White Outdoor WD-900-4040

RIM - wheel

$

$

Not available

27

WD-113-120

BOLT - 5/16" - 18 x 1-3/4"

$

$

Not available

28

White Outdoor WD-113-134

BOLT - 5/16" - 18 x 7-1/2"

$

$

Not available

29

White Outdoor WD-C37591

LOCKWASHER - 3/8"

$

$

Not available

30

White Outdoor WD-C37592

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 15

0

31

White Outdoor WD-900-6168

KEY - 5 x 5 x 25mm

$

$

Not available

32

~NSS

PULLEY - 4" OD x 15 mm ID

Note: (use C45473, C45474)

$

$

Not available

White Outdoor WD-C45473

PULLEY - 4"

Note: (use C32199 set screw)

$

$

Not available

33

WD-218-5354

ADAPTER -

$

$

Not available

34

White Outdoor WD-218-5278

ADAPTER - 90°.

$

$

Not available

44

White Outdoor WD-900-3027

BELT - pump drive

$

$

Not available

45

White Outdoor WD-C45273

BOLT - M6 - 1.0 x 12m flange

$

$

Not available

46

White Outdoor WD-195-2063

WASHER - .626" x 1"

$

$

Not available

47

White Outdoor WD-195-520

WASHER - .312" x .875"

$

$

Not available

48

White Outdoor WD-113-203

BOLT - 3/8" - 16 x 3-1/2" mounting

$

$

Not available

WD-113-267

BOLT - 3/8" - 16 x 4" mounting

$

$

Not available

49

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 15

0
