FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) Body Parts Diagram

Front-Mount Riding Mower

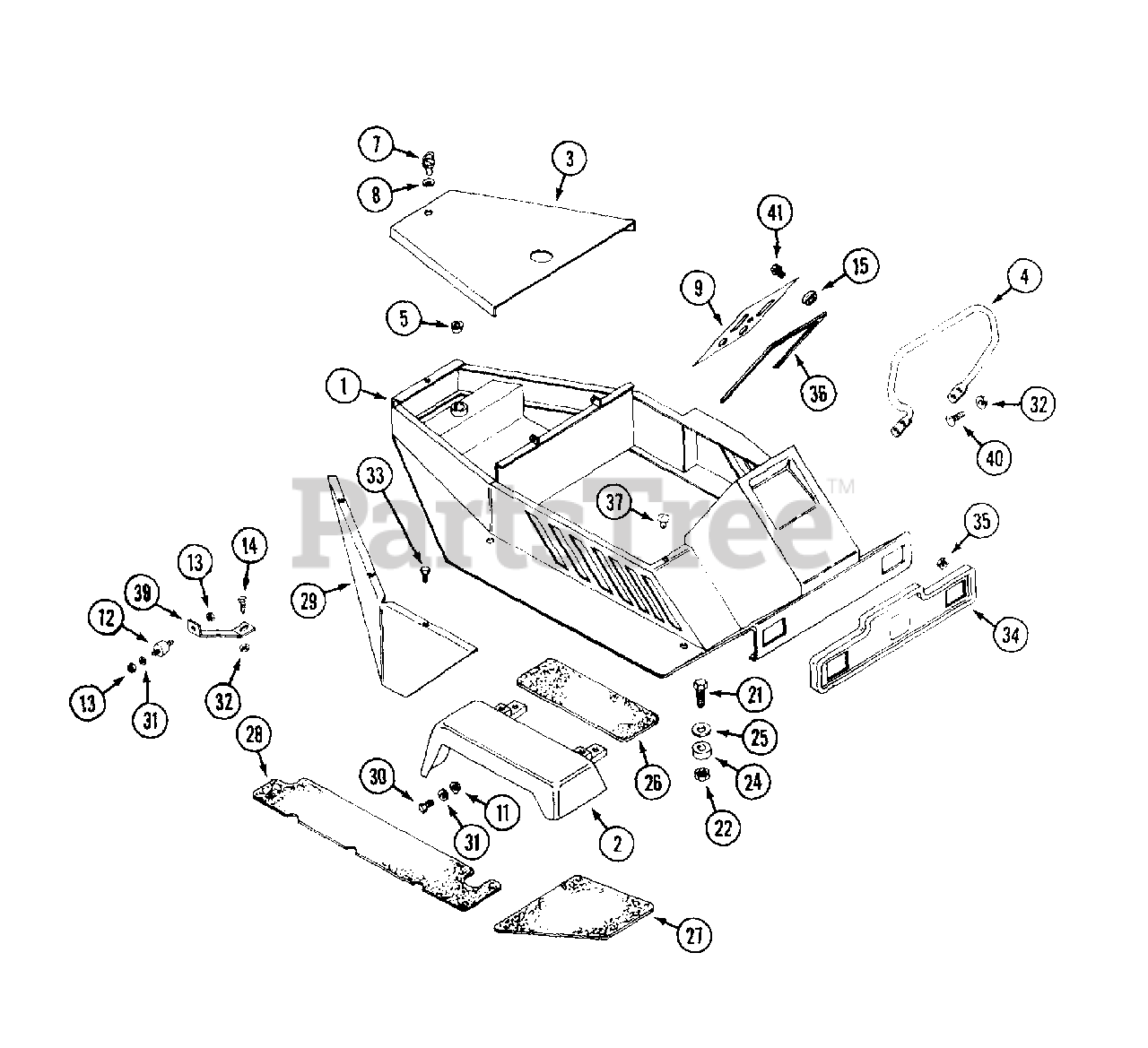

Body Parts Diagram

  • Title
1

WD-C44954

BODY

$

$

Not available

2

White Outdoor WD-C39534

FENDER - R.H.

$

$

Not available

White Outdoor WD-C40645

FENDER - L.H.

$

$

Not available

3

$

$

Not available

4

White Outdoor WD-C44844

BAR - handle

Note: (optional)

$

$

Not available

5

White Outdoor WD-900-3501

BEARING - rear wheel fork

$

$

Not available

7

White Outdoor WD-C41944

STUD - fastener

$

$

Not available

8

White Outdoor WD-C41945

GROMMET - fastener

$

$

Not available

9

$

$

Not available

11

White Outdoor WD-131-934

NUT - flange lock

$

$

Not available

12

WD-C43012

MOUNT - rubber

$

$

Not available

13

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

14

White Outdoor WD-131-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

15

WD-C34117

NUT - #10 - 24 flange lock

$

$

Not available

21

White Outdoor WD-113-425

BOLT - 1/2" - 13 x 3"
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

22

White Outdoor WD-131-70

NUT - 1/2" lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 9

0

24

White Outdoor WD-900-5509

MOUNT - body, rubber

$

$

Not available

25

White Outdoor WD-200-0015

WASHER - mount, body

$

$

Not available

26

$

$

Not available

27

WD-C39525

PAD - footrest, front L.H.

$

$

Not available

White Outdoor WD-C39526

PAD - footrest, front R.H.

Note: (Shown)

$

$

Not available

28

White Outdoor WD-C44957

PAD - footrest, rear L.H.

$

$

Not available

White Outdoor WD-C44958

PAD - footrest, rear R.H.

Note: (Shown)

$

$

Not available

29

$

$

Not available

$

$

Not available

30

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

31

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

32

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor WD-C42056

BOLT - 5/16" - 18 x 5/8" black

$

$

Not available

White Outdoor WD-C42057

BOLT - 5/16" - 18 x 1-3/4" black

$

$

Not available

34

$

$

Not available

35

White Outdoor WD-131-971

NUT - #8 - 32 flange lock

$

$

Not available

36

White Outdoor WD-900-5742

TRIM - 27" (cut to length)

$

$

Not available

37

White Outdoor WD-900-5522

BUMPER - nylon

$

$

Not available

39

WD-C45084

BRACKET - fender support

$

$

Not available

40

WD-C44959

BOLT - 5/16" - 18 x 1" carriage

$

$

Not available

41

WD-C39403

SCREW - #12 x 1/2"

$

$

Not available

WD-182-573

SCREW - #10 - 24 x 1/2"

$

$

Not available
