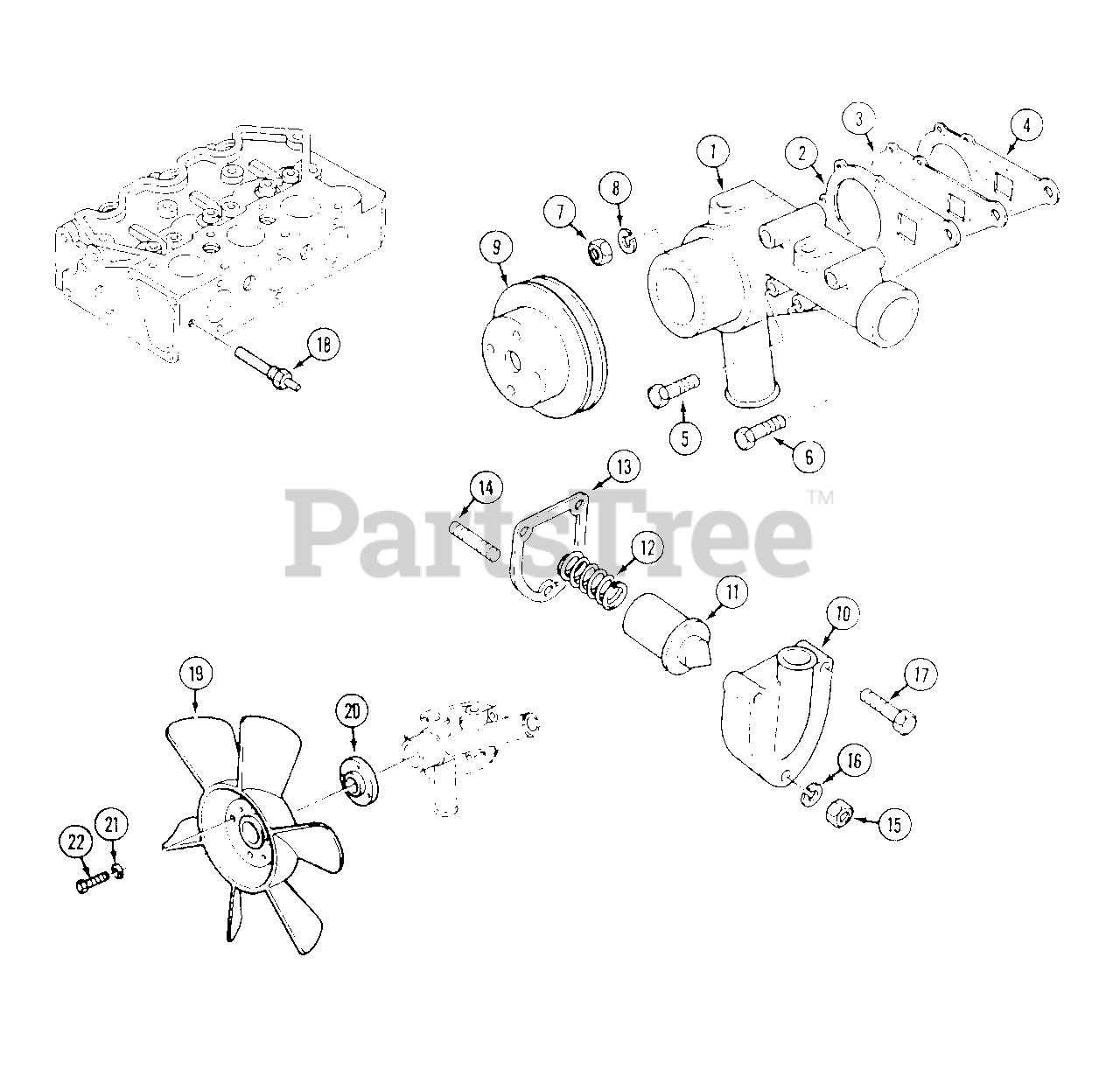

FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Water Pump, Thermostat, Temperature Sender Parts Diagram

Front-Mount Riding Mower

Water Pump, Thermostat, Temperature Sender Parts Diagram

  • Title
1

WD-P145016840

PUMP - water

$

$

Not available

$

$

Not available

3

WD-C43618

BACKPLATE

$

$

Not available

$

$

Not available

5

WD-P011300635

SCREW

$

$

Not available

6

WD-P011300650

SCREW

$

$

Not available

7

WD-P023100006

NUT

$

$

Not available

8

WD-P027100006

WASHER

$

$

Not available

9

WD-P145336490

PULLEY

$

$

Not available

10

WD-P145216161

HOUSING

$

$

Not available

11

$

$

Not available

12

WD-C43599

SPRING

$

$

Not available

$

$

Not available

14

WD-P012100650

STUD

$

$

Not available

15

WD-P023100006

NUT

$

$

Not available

16

WD-P027100006

WASHER

$

$

Not available

17

WD-P011300650

SCREW

$

$

Not available

18

WD-C43602

SENDER - temperature

$

$

Not available

$

$

Not available

20

WD-C42986

SPACER - fan

$

$

Not available

21

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

22

WD-814-6045

SCREW - M6 - 1.0 x 45

$

$

Not available
