FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Transmission Controls And Cross Shaft Parts Diagram

Front-Mount Riding Mower

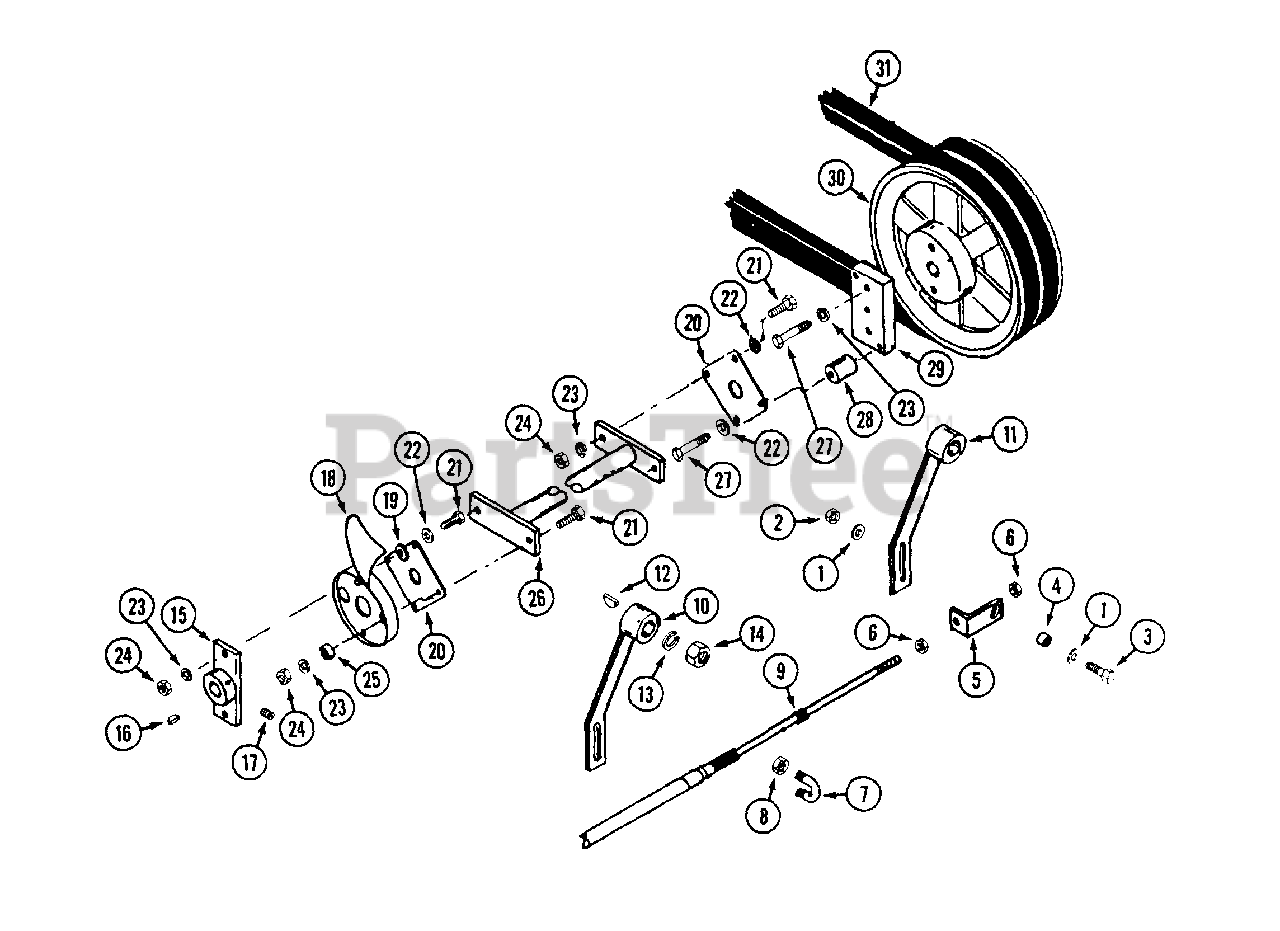

Transmission Controls And Cross Shaft Parts Diagram

  • Title
1

White Outdoor WD-195-520

WASHER - 1/4"

$

$

Not available

2

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

3

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

4

White Outdoor WD-C42895

BUSHING - steering cable

$

$

Not available

5

White Outdoor WD-C37713

BRACKET - steering cable end

$

$

Not available

6

WD-193-1001

NUT - 1/4" - 20 lock

$

$

Not available

7

White Outdoor WD-C37718

CLAMP - cable

$

$

Not available

8

WD-131-69

NUT - 5/16" - 18 lock

$

$

Not available

9

White Outdoor WD-C43180

CABLE - steering

$

$

Not available

10

WD-C45233

ARM - control L.H.

$

$

Not available

11

WD-C45234

ARM - control R.H.

$

$

Not available

12

WD-126-11

KEY - 1/8" x 5/8" woodruff

$

$

Not available

13

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

14

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

15

$

$

Not available

16

WD-126-16

KEY - 3/16" x 3/4" woodruff

$

$

Not available

17

WD-83-55

SETSCREW - 5/16" - 18 x 5/16"

$

$

Not available

$

$

Not available

19

White Outdoor WD-C37704

WASHER - .33" x .69" x .13"

$

$

Not available

20

White Outdoor WD-C37700

PLATE - drive

$

$

Not available

21

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

22

White Outdoor WD-195-102

WASHER - .312" x .75"

$

$

Not available

23

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

24

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

25

White Outdoor WD-C37702

SPACER - 1/4"

$

$

Not available

26

White Outdoor WD-C38015

SHAFT - cross

$

$

Not available

27

WD-113-104

BOLT - 5/16" - 18 x 1-1/4"

$

$

Not available

28

WD-C45378

SPACER - 3/4"

$

$

Not available

29

White Outdoor WD-C37710

BLOCK - cross shaft

$

$

Not available

30

White Outdoor WD-C45154

PULLEY - pump drive

$

$

Not available

31

White Outdoor WD-C37716

BELT - engine to transmission

$

$

Not available
