FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Throttle Control Parts Diagram

Front-Mount Riding Mower

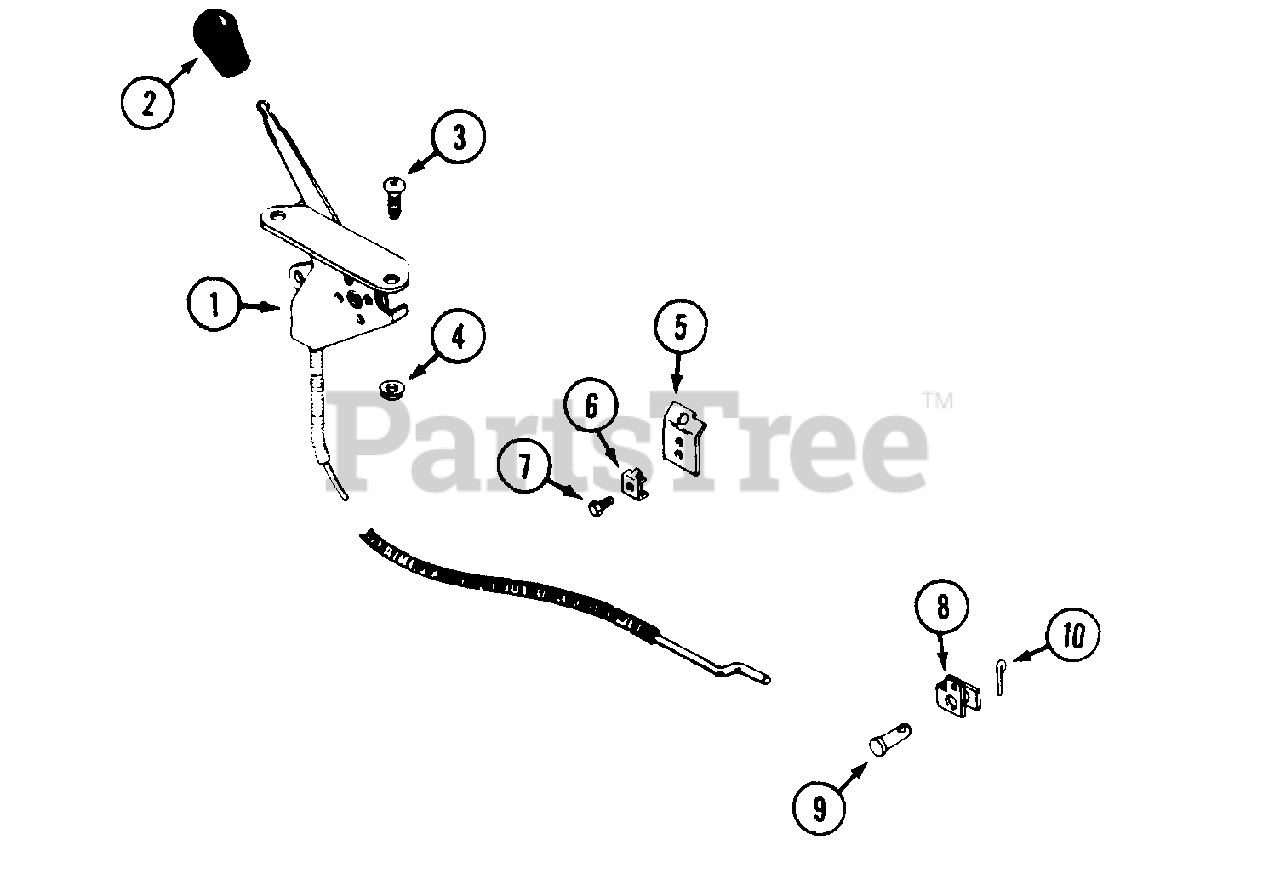

Throttle Control Parts Diagram

  • Title
1

WD-C43177

THROTTLE

$

$

Not available

2

WD-C35291

KNOB - throttle

$

$

Not available

3

WD-182-559

SCREW - #10 - 24 x 3/4"

$

$

Not available

4

WD-C34117

NUT - #10 - 24 flange lock

$

$

Not available

5

WD-C45339

BRACKET - throttle

$

$

Not available

6

WD-C34273

CLAMP - casing

$

$

Not available

7

WD-182-559

SCREW - #10 - 24 x 3/4"

$

$

Not available

8

WD-C43059

CLEVIS - extension

$

$

Not available

9

WD-C45478

PIN - clevis 5/16" x 7/8"

$

$

Not available

10

WD-132-320

PIN - cotter 3/32" x 3/4"

$

$

Not available
