FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Radiator Fan Assembly Parts Diagram

Front-Mount Riding Mower

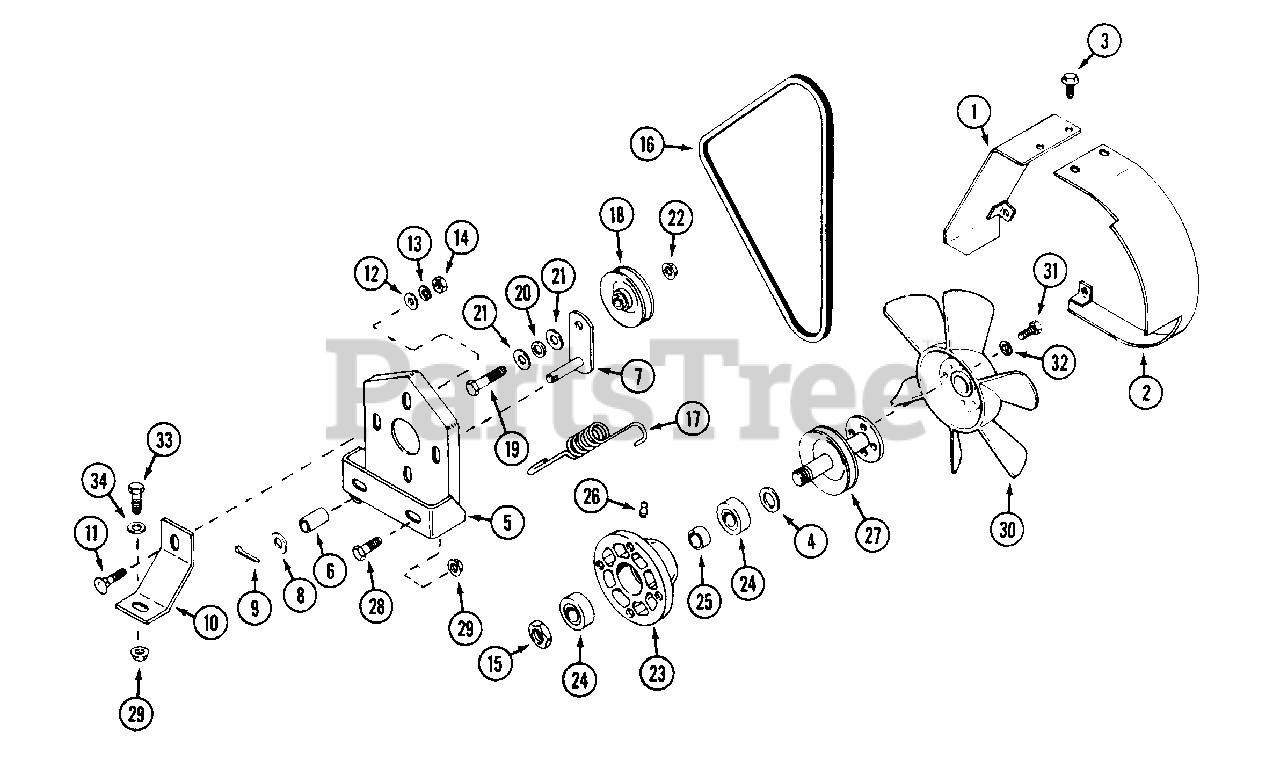

Radiator Fan Assembly Parts Diagram

  • Title
1

WD-C45436

COWLING - fan, rear

$

$

Not available

2

WD-C45439

COWLING - fan, front

$

$

Not available

3

187-1036

SCREW - 1/4" - 20 x 1/2" flange

$

$

Not available

4

WD-C12975

WASHER - 3/4" - 1-1/8"

$

$

Not available

5

WD-C45419

BRACKET - fan mounting

$

$

Not available

6

White Outdoor WD-C16714

BUSHING - 1/2"

$

$

Not available

7

WD-C45230

ARM - idler

$

$

Not available

8

WD-195-2067

WASHER - 1/2" x 7/8"

$

$

Not available

9

WD-132-320

PIN - cotter 3/32" x 3/4"

$

$

Not available

10

WD-C45205

BRACE - fan mount

$

$

Not available

11

White Outdoor WD-111-256

BOLT - 5/16" - 18 x 1-1/4" carriage

$

$

Not available

12

WD-195-521

WASHER - .344" x .688"

$

$

Not available

13

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

14

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

15

White Outdoor WD-131-1331

NUT - 3/4" - 16 lock

$

$

Not available

16

WD-C45412

BELT - 3L x 36"

$

$

Not available

17

WD-C45413

SPRING - tension

$

$

Not available

18

White Outdoor WD-C45338

PULLEY - idler

$

$

Not available

19

WD-113-233

BOLT - 3/8" - 16 x 1-3/4"

$

$

Not available

20

WD-C30155

WASHER - .39" x .625"

$

$

Not available

21

WD-195-525

WASHER - .40" x .81"

$

$

Not available

22

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

23

White Outdoor WD-C45414

HOUSING ASSEMBLY

$

$

Not available

24

White Outdoor WD-C28971

BEARING - ball 3/4"

$

$

Not available

25

White Outdoor WD-C43208

SPACER - bearing

$

$

Not available

26

White Outdoor WD-219-20

FITTING - 1/4" - 28 lubrication

$

$

Not available

27

White Outdoor WD-C45415

SPINDLE - fan mounting

$

$

Not available

28

WD-113-104

BOLT - 5/16" - 18 x 1-1/4"

$

$

Not available

29

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

30

WD-C42984

FAN - 11"

$

$

Not available

31

WD-131-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

32

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

33

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

34

White Outdoor WD-195-103

WASHER - .375" x .875"

$

$

Not available
