FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Oil Pump Parts Diagram

Front-Mount Riding Mower

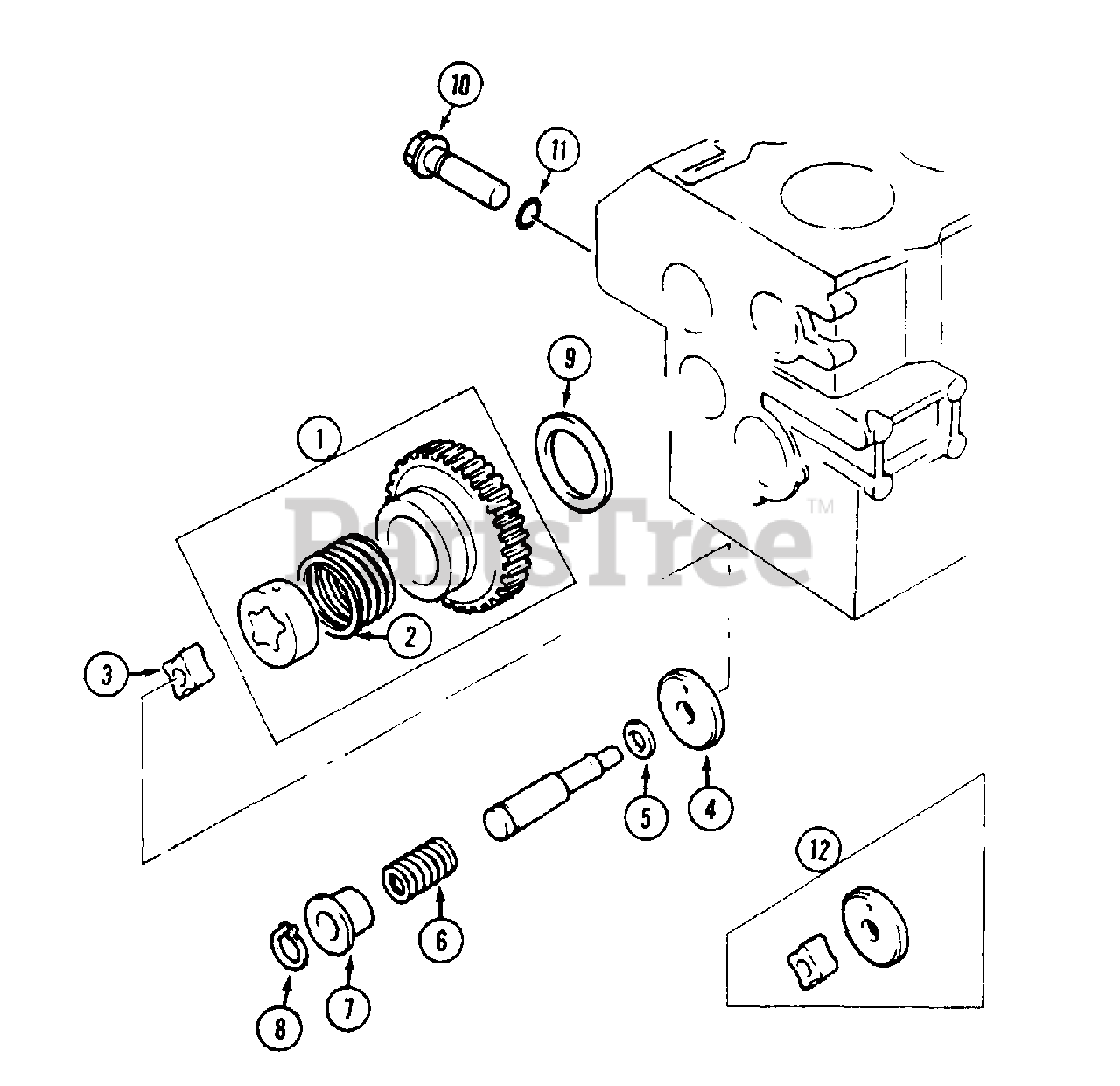

Oil Pump Parts Diagram

  • Title
1

WD-P165026110

GEAR ASSEMBLY

$

$

Not available

2

WD-P198216821

SPRING

$

$

Not available

3

WD-P140166130

ROTOR

$

$

Not available

4

WD-P140116140

COVER

$

$

Not available

5

WD-P199286150

SHIM - 0.10mm

$

$

Not available

WD-P199286160

SHIM - 0.15mm

$

$

Not available

WD-P199286170

SHIM - 0.20mm

$

$

Not available

WD-P199286180

SHIM - 0.50mm

$

$

Not available

6

WD-P198216720

SPRING

$

$

Not available

7

WD-P199236540

COLLAR

$

$

Not available

8

WD-P036800010

CIRCLIP

$

$

Not available

9

WD-P199266180

WASHER

$

$

Not available

10

WD-P140036120

VALVE

$

$

Not available

11

WD-P052100150

"O" RING

$

$

Not available

12

WD-P140186010

KIT - repair

$

$

Not available
