FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Lubrication Components Parts Diagram

Front-Mount Riding Mower

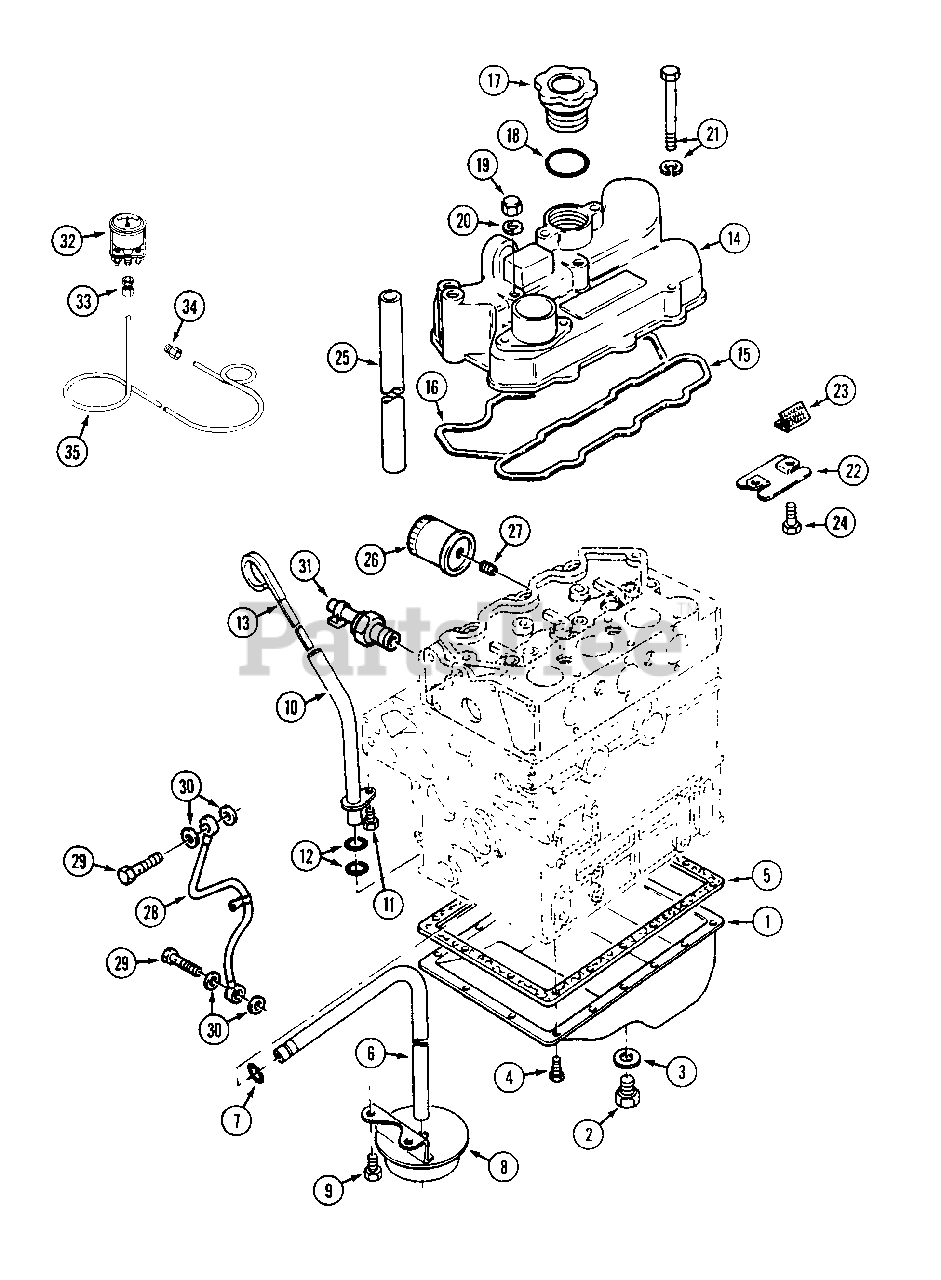

Lubrication Components Parts Diagram

  • Title

1

WD-P110706860

SUMP

$

$

Not available

2

WD-C43607

PLUG

$

$

Not available

3

White Outdoor WD-C43608

WASHER

$

$

Not available

4

WD-P010109235

SCREW

$

$

Not available

5

WD-C43614

GASKET

$

$

Not available

6

WD-P140986590

PIPE

$

$

Not available

7

WD-P052109076

"O" RING

$

$

Not available

8

WD-P140406310

STRAINER

$

$

Not available

9

WD-P011300612

BOLT

$

$

Not available

10

WD-C43997

TUBE

$

$

Not available

11

WD-P011300612

BOLT

$

$

Not available

12

WD-C43999

"O" RING

$

$

Not available

13

WD-C43207

DIPSTICK

$

$

Not available

14

WD-P111026371

COVER

$

$

Not available

15

WD-C43615

GASKET

$

$

Not available

16

WD-C43616

GASKET

$

$

Not available

17

WD-C43605

CAP

$

$

Not available

18

WD-C43606

"O" RING

$

$

Not available

19

WD-P024500008

NUT

$

$

Not available

20

WD-P198996060

WASHER

$

$

Not available

21

WD-P011300650

SCREW

$

$

Not available

22

WD-P110666110

PLATE

$

$

Not available

23

WD-P110666120

GAUZE

$

$

Not available

24

WD-P011300612

BOLT

$

$

Not available

25

WD-P068122560

HOSE

$

$

Not available

26

White Outdoor WD-C43443

FILTER - oil

$

$

Not available

27

WD-P140546020

CONNECTOR

$

$

Not available

28

WD-P140606680

PIPE

$

$

Not available

29

WD-P198486780

BOLT

$

$

Not available

30

WD-P198996060

WASHER

$

$

Not available

31

WD-C43601

SWITCH - oil pressure

$

$

Not available

32

WD-C38122

GAGE - pressure, oil

$

$

Not available

33

WD-C45606

FITTING - 1/8" tube

$

$

Not available

34

WD-222-681

FITTING - 1/8" x 1/8"

$

$

Not available

35

WD-C45544

TUBE - 1/8" x 58" copper

$

$

Not available
