FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Hydraulic Lift Assembly Parts Diagram

Front-Mount Riding Mower

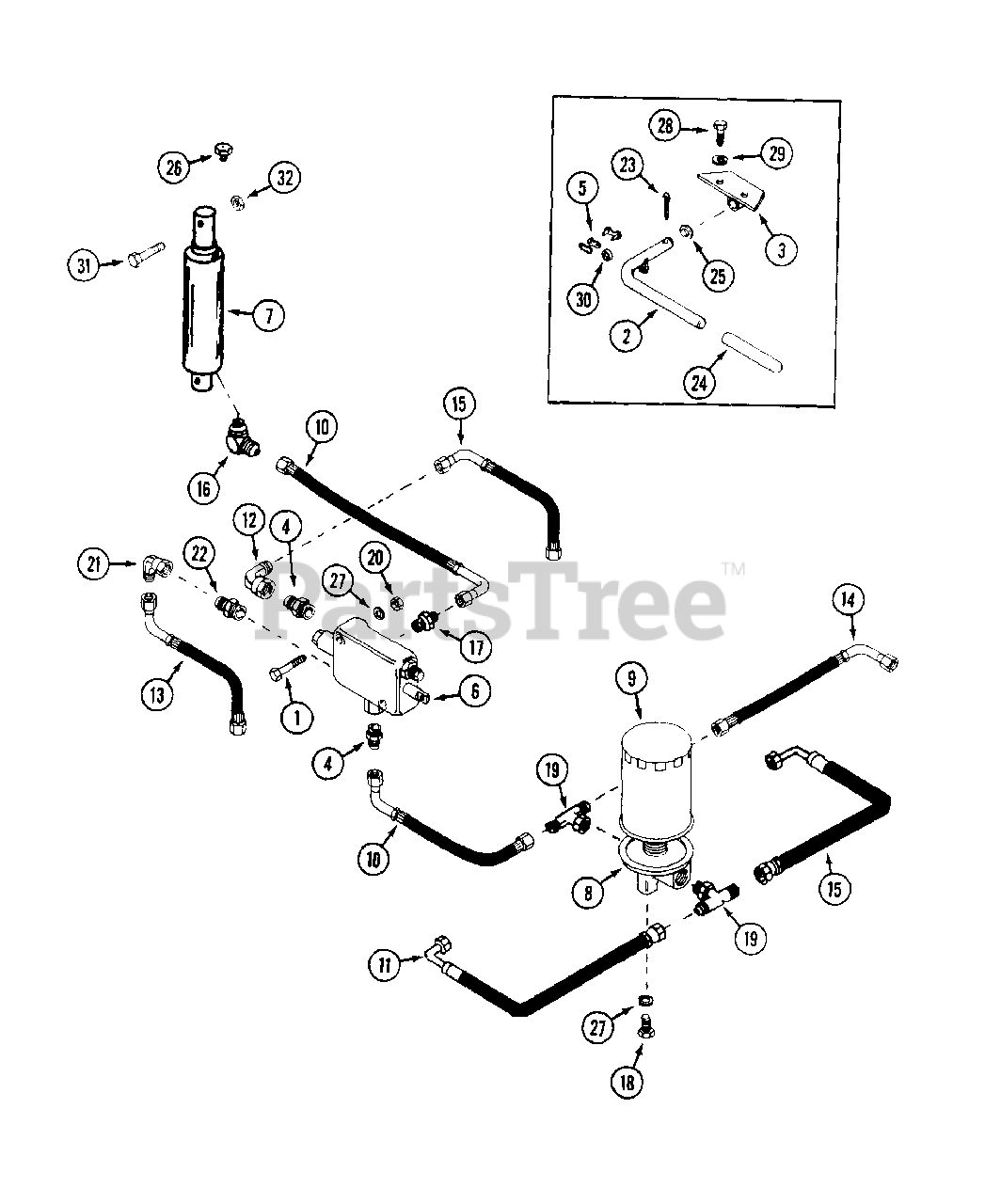

Hydraulic Lift Assembly Parts Diagram

  • Title
1

WD-113-14

BOLT - 1/4" - 20 x 2"

$

$

Not available

2

WD-C45341

LEVER - actuator

$

$

Not available

3

WD-C45343

PIVOT - lever

$

$

Not available

4

WD-218-5058

FITTING - 9/16" x 3/4"

$

$

Not available

5

White Outdoor WD-C37791

CONNECTING LINK - #50

$

$

Not available

6

WD-C42937

VALVE - lift

$

$

Not available

7

WD-C44030

CYLINDER - lift

$

$

Not available

8

White Outdoor WD-C37636

HOUSING - oil filter

$

$

Not available

9

White Outdoor WD-C37637

ELEMENT - oil filter

$61.99

$

Usually ships in 3-6 days

0

10

White Outdoor WD-C37794

HOSE - 3/8" ID x 26" long

$

$

Not available

11

White Outdoor WD-C37795

HOSE - 3/8" ID x 31" long

$

$

Not available

12

White Outdoor WD-218-980

FITTING - 90° 9/16"

$

$

Not available

13

WD-C45292

HOSE - 90°, 3/4" x 19"

$

$

Not available

14

WD-C45287

HOSE - 3/8" ID x 11.5" long

$

$

Not available

15

WD-C37799

HOSE - 3/8" ID x 21" long

$

$

Not available

16

White Outdoor WD-218-5278

FITTING - 90° male tube adp.

$

$

Not available

17

WD-218-5057

FITTING - straight

$

$

Not available

18

WD-113-2

BOLT - 1/4" - 20 x 5/8"

$

$

Not available

19

WD-218-5182

FITTING - tee

$

$

Not available

20

WD-129-101

NUT - 1/4" - 20

$

$

Not available

21

WD-218-5230

FITTING - 90°, 3/4"

$

$

Not available

22

WD-218-5059

FITTING - straight

$

$

Not available

23

WD-132-310

PIN - cotter 1/8" x 1"

$

$

Not available

24

WD-C26020

GRIP - handle

$

$

Not available

25

White Outdoor WD-C37787

GROMMET - lever

$

$

Not available

26

UNKNOWN

$

$

Not available

27

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

28

WD-113-101

BOLT - 5/16" - 18 x 1/2"

$

$

Not available

29

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

$

$

Not available

31

WD-113-422

BOLT - 1/2" - 13 x 2-1/2"

$

$

Not available

32

White Outdoor WD-131-70

NUT - 1/2" - 13 lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0
