FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Gasket Kit Parts Diagram

Front-Mount Riding Mower

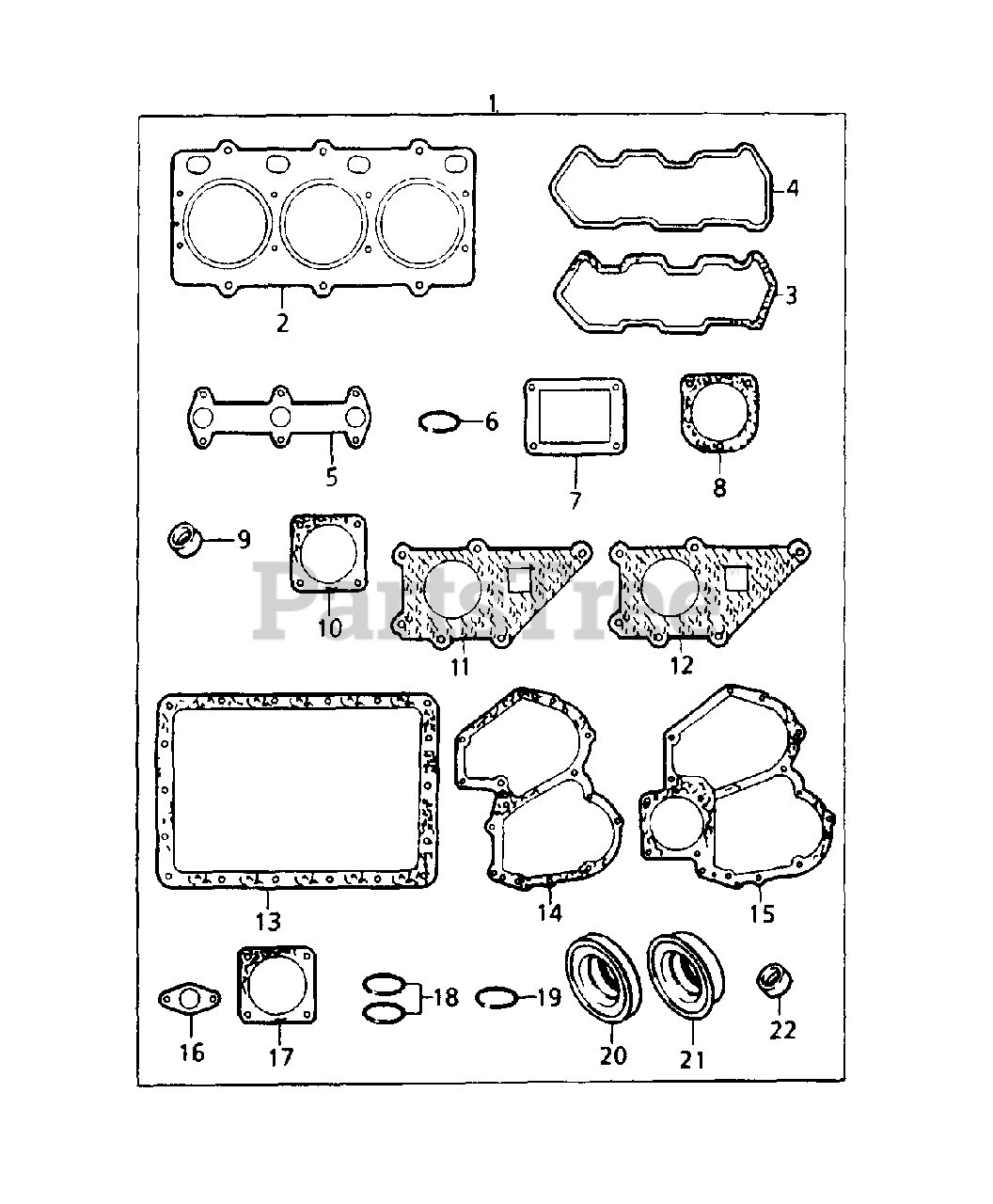

Gasket Kit Parts Diagram

  • Title
1

WD-P195906840

KIT - gasket, complete

$

$

Not available

2

WD-P111147390

GASKET - head

$

$

Not available

3

WD-C43615

GASKET - cover

$

$

Not available

4

WD-C43616

GASKET - cover

$

$

Not available

5

WD-C43988

GASKET - exhaust

$

$

Not available

6

WD-C43606

"O" RING - cap

$

$

Not available

7

WD-P130996070

GASKET - fuel pump

$

$

Not available

8

White Outdoor WD-C43600

GASKET - thermostat

$

$

Not available

9

WD-P120406080

SEAL - valve stem

$

$

Not available

10

WD-P314990013

GASKET

Note: (Not used)

$

$

Not available

11

White Outdoor WD-C43619

GASKET - water pump

$

$

Not available

12

White Outdoor WD-C43617

GASKET - water pump

$

$

Not available

13

WD-C43614

GASKET - sump, oil

$

$

Not available

14

WD-C43612

GASKET - case

$

$

Not available

15

WD-C43613

GASKET - plate

$

$

Not available

16

WD-P130996070

GASKET - fuel pump

$

$

Not available

17

WD-P165996420

GASKET - plate

$

$

Not available

18

WD-C43999

"O" RING - oil tube

$

$

Not available

19

WD-P052109076

"O" RING - oil pipe

$

$

Not available

20

WD-P198636090

SEAL - case

$

$

Not available

21

WD-P198636080

SEAL - plate, rear

$

$

Not available

22

WD-P131426200

GASKET - atomizer

$

$

Not available
