FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Fuel System (Tractor) Parts Diagram

Front-Mount Riding Mower

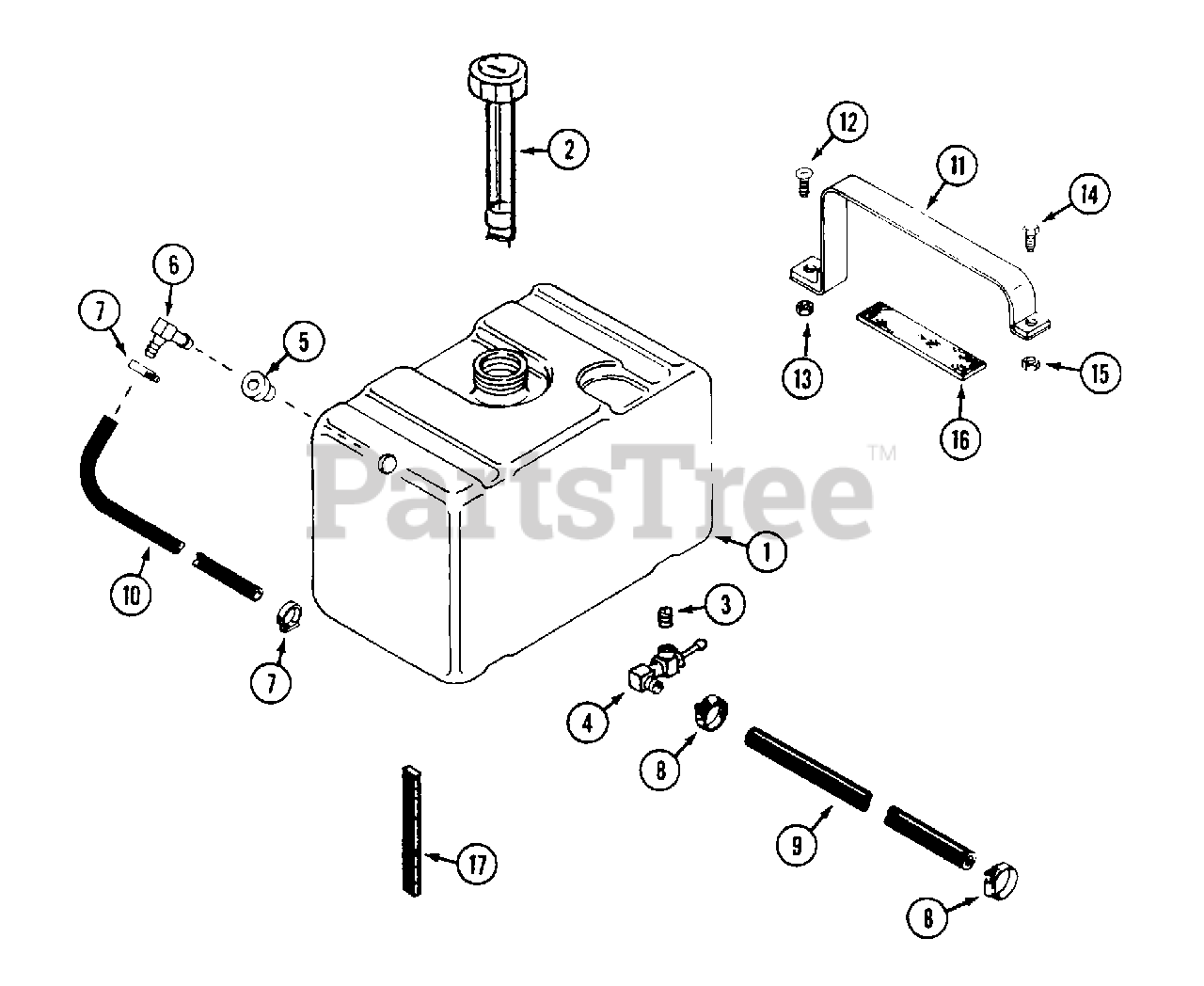

Fuel System (Tractor) Parts Diagram

  • Title
1

WD-C45312

TANK - fuel

$

$

Not available

2

White Outdoor WD-C45334

CAP - fuel gauge

$

$

Not available

3

White Outdoor WD-221-1101

NIPPLE - pipe 1/8"

$

$

Not available

4

White Outdoor WD-C37811

FITTING - valve 1/8" x 904

$

$

Not available

5

White Outdoor WD-C43052

GROMMET - tank

$

$

Not available

6

WD-C43053

FITTING - return 90°.

$

$

Not available

7

WD-214-274

CLAMP - hose #4

$

$

Not available

8

White Outdoor WD-214-103

CLAMP - hose #8

$

$

Not available

9

WD-C43270

HOSE - fuel 1/4" x 45"

$

$

Not available

10

WD-C43271

HOSE - return 3/16" x 51"

$

$

Not available

11

WD-C45313

STRAP - fuel tank

$

$

Not available

12

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

13

WD-131-69

NUT - 5/16" - 18 lock

$

$

Not available

14

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

15

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

$

$

Not available

17

WD-C44584

FOAM - tank cushion

$

$

Not available
