FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Fuel Injection Pump Parts Diagram

Front-Mount Riding Mower

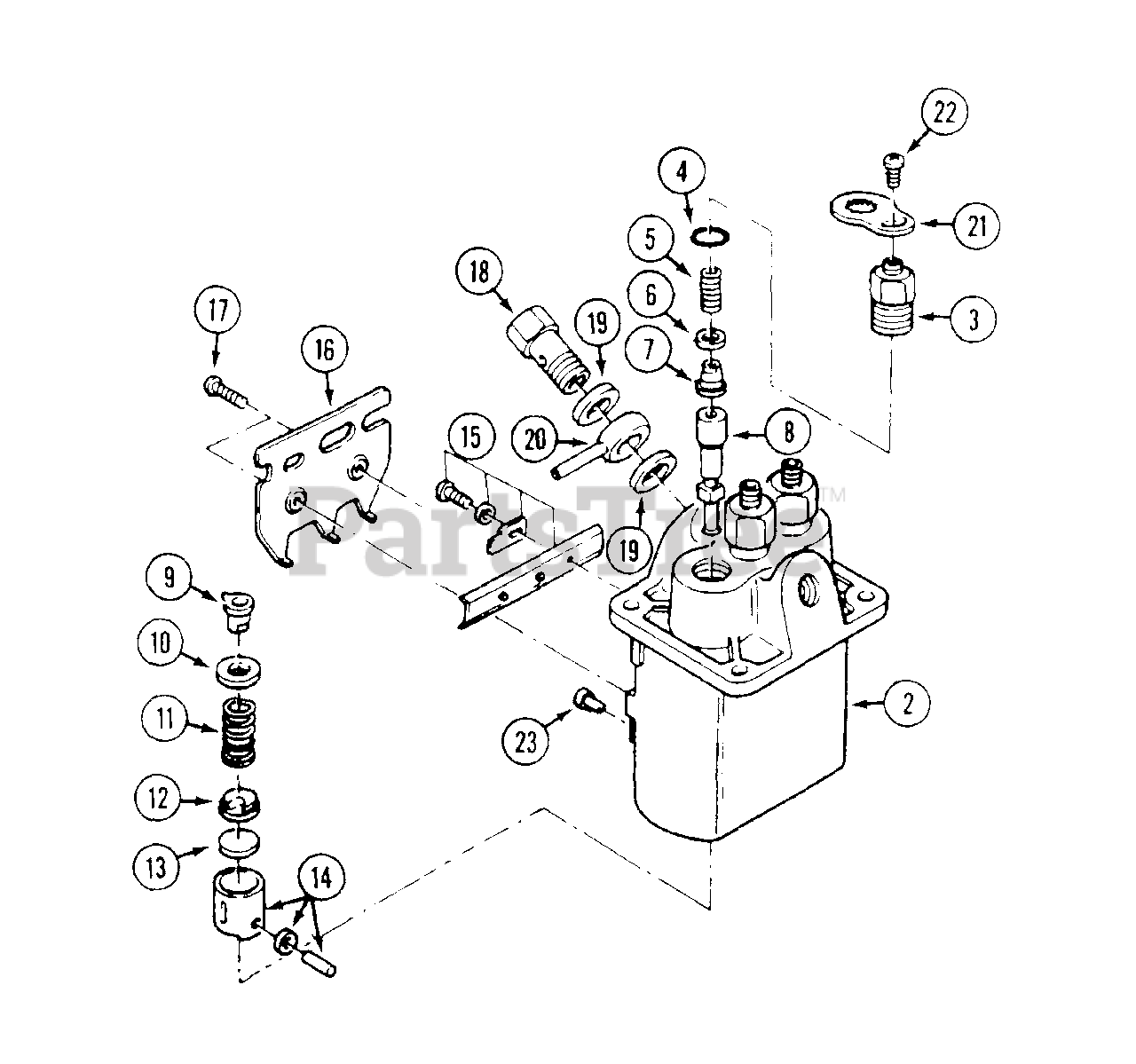

Fuel Injection Pump Parts Diagram

  • Title

WD-P131017390

PUMP - fuel injection

$

$

Not available

2

WD-P131296665

HOUSING

$

$

Not available

3

WD-P131196130

HOLDER

$

$

Not available

4

WD-P131226170

"O" RING

$

$

Not available

5

WD-P131176430

SPRING

$

$

Not available

6

WD-P131186050

GASKET

$

$

Not available

7

WD-P131156160

VALVE

$

$

Not available

8

WD-P131116410

ELEMENT

$

$

Not available

9

WD-P131296951

SLEEVE

$

$

Not available

10

WD-P131296620

SEAT

$

$

Not available

11

WD-P131176440

SPRING

$

$

Not available

12

WD-P131296621

SEAT

$

$

Not available

13

WD-P131296622

PLATE - shim 1.85mm

$

$

Not available

WD-P131296623

PLATE - shim 1.90mm

$

$

Not available

WD-P131296624

PLATE - shim 1.95mm

$

$

Not available

WD-P131296625

PLATE - shim 2.00mm

$

$

Not available

WD-P131296626

PLATE - shim 2.05mm

$

$

Not available

WD-P131296627

PLATE - shim 2.10mm

$

$

Not available

WD-P131296628

PLATE - shim 2.15mm

$

$

Not available

WD-P131296629

PLATE - shim 2.20mm

$

$

Not available

WD-P131296630

PLATE - shim 2.25mm

$

$

Not available

WD-P131296631

PLATE - shim 2.30mm

$

$

Not available

WD-P131296632

PLATE - shim 2.35mm

$

$

Not available

WD-P131296633

PLATE - shim 2.40mm

$

$

Not available

WD-P131296634

PLATE -- shim 2.45mm

$

$

Not available

WD-P131296635

PLATE - shim 2.50mm

$

$

Not available

14

WD-P131256120

TAPPET

$

$

Not available

15

WD-P131296636

RACK

$

$

Not available

16

WD-P131296650

BRACKET

$

$

Not available

17

WD-P131136320

SCREW

$

$

Not available

18

WD-P131236190

BOLT

$

$

Not available

19

WD-P131426180

WASHER

$

$

Not available

20

WD-P131246130

NIPPLE

$

$

Not available

21

WD-P131296662

PLATE

$

$

Not available

22

WD-P131136330

SCREW

$

$

Not available

23

WD-P131296651

PIN

$

$

Not available
