FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Flywheel, Crankshaft, Pistons & Rings Parts Diagram

Front-Mount Riding Mower

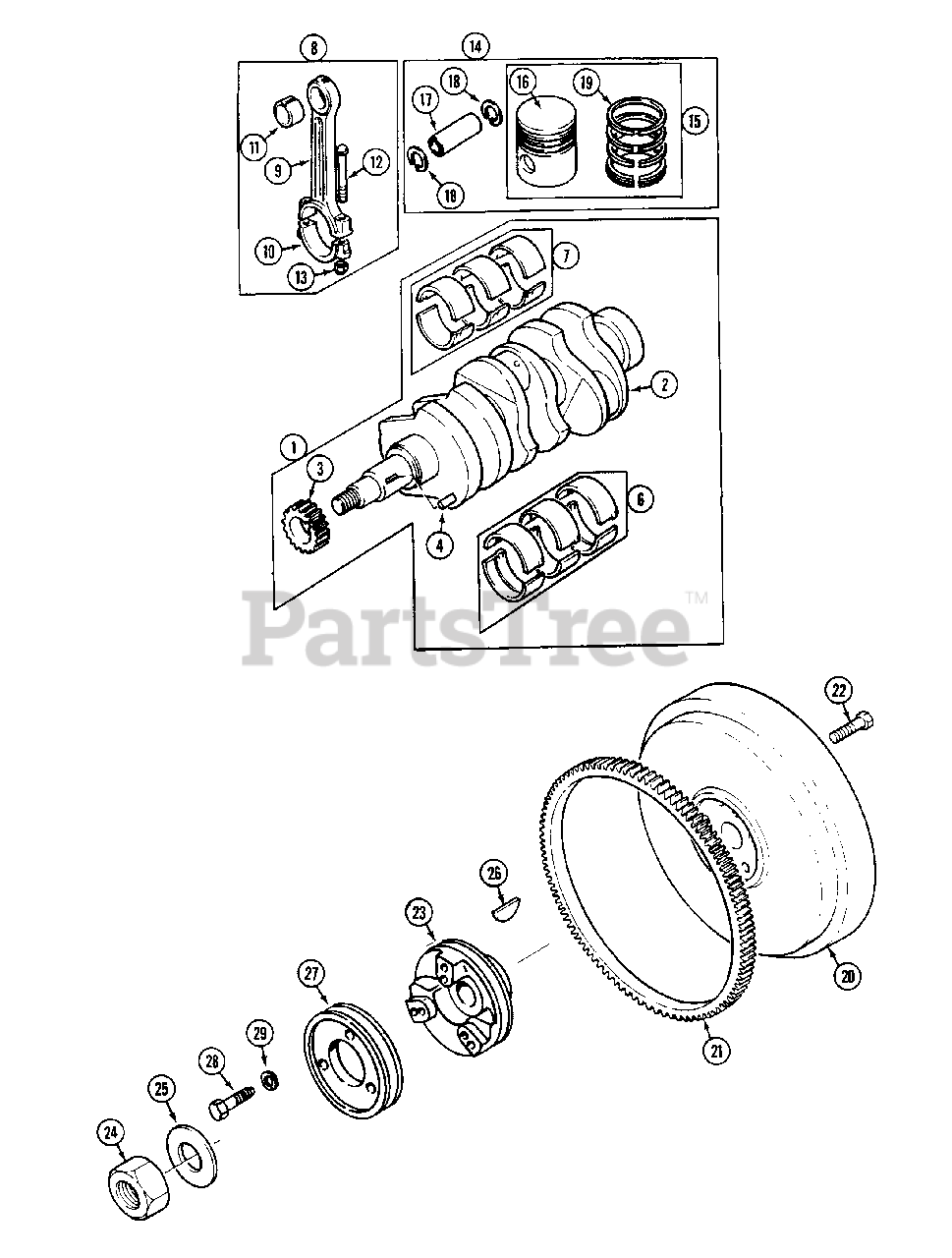

Flywheel, Crankshaft, Pistons & Rings Parts Diagram

  • Title

1

WD-P115236020

KIT - crankshaft

$

$

Not available

2

~NSS

CRANKSHAFT

$

$

Not available

3

WD-P115276210

GEAR

$

$

Not available

4

WD-P030509020

KEY

$

$

Not available

6

WD-P198586030

KIT - bearing (standard)

$

$

Not available

WD-P198586034

KIT - bearing (0.25mm undersize)

$

$

Not available

WD-P198586037

KIT - bearing (0.50mm undersize)

$

$

Not available

7

WD-P198586060

KIT - bearing (standard)

$

$

Not available

WD-P198586064

KIT - bearing (0.25mm undersize)

$

$

Not available

WD-P198586067

KIT - bearing (0.50mm undersize)

$

$

Not available

8

WD-P115026240

ROD - connecting

$

$

Not available

9

~NSS

ROD

$

$

Not available

10

~NSS

CAP

$

$

Not available

11

WD-P198517325

BUSHING

$

$

Not available

12

WD-P115176130

SCREW

$

$

Not available

13

WD-P020109103

NUT

$

$

Not available

14

WD-P115017090

KIT - piston (standard)

$

$

Not available

WD-P115017100

KIT - piston (0.50mm oversize)

$

$

Not available

15

~NSS

PISTON ASSEMBLY

$

$

Not available

16

~NSS

PISTON

$

$

Not available

17

WD-P115326260

PIN

$

$

Not available

18

WD-P036500019

CIRCLIP

$

$

Not available

19

WD-P115107400

KIT - rings (standard)

$

$

Not available

WD-P115107410

KIT - rings (0.50mm oversize)

$

$

Not available

20

WD-P115357260

FLYWHEEL

$

$

Not available

21

WD-P115376150

RING

$

$

Not available

22

WD-P010109330

SCREW

$

$

Not available

23

WD-C45367

PULLEY

$

$

Not available

24

WD-P020800018

NUT

$

$

Not available

25

WD-P026200018

WASHER

$

$

Not available

26

WD-P034100508

KEY

$

$

Not available

27

WD-C45369

PULLEY - engine

$

$

Not available

28

WD-113-104

BOLT - 5/16" - 18 x 1-1/4

$

$

Not available

29

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available
