FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Electric Clutch (PTO) Parts Diagram

Front-Mount Riding Mower

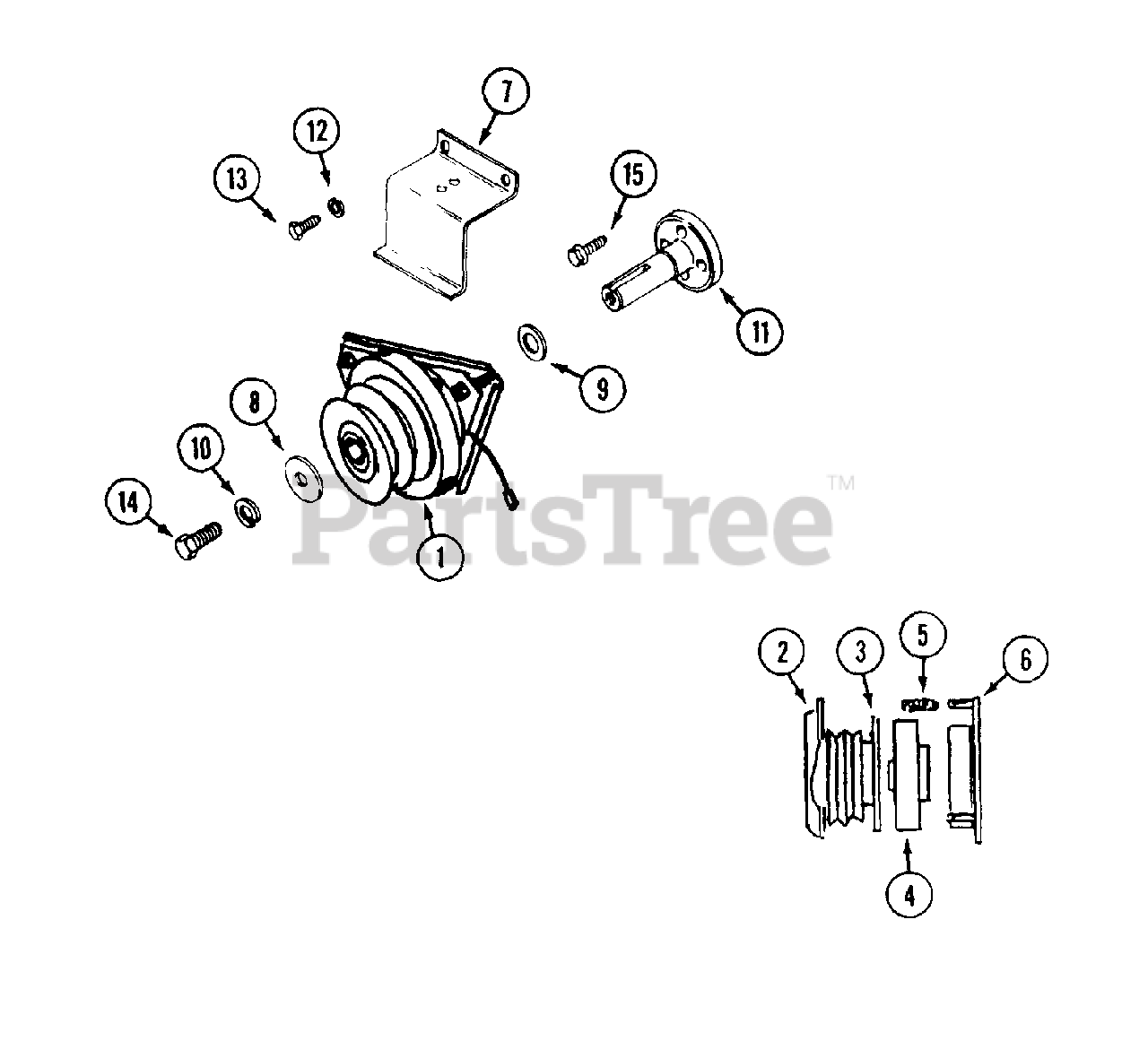

Electric Clutch (PTO) Parts Diagram

  • Title
1

WD-C37569

CLUTCH - electric

$

$

Not available

2

White Outdoor WD-C37549

BRAKE - clutch

$

$

Not available

3

White Outdoor WD-C37570

ARMATURE - clutch

$

$

Not available

4

White Outdoor WD-C37551

ROTOR - clutch

$

$

Not available

5

White Outdoor WD-C37652

KIT - spring and nut (3 each)

$

$

Not available

6

White Outdoor WD-C37553

COIL - clutch
(Superseded to 759-3541)

$

$

Not available

7

WD-C45357

BRACKET - clutch stop

$

$

Not available

8

White Outdoor WD-C31615

WASHER - .41" x 1.75" x 1/4"

$

$

Not available

9

WD-C13716

WASHER - thrust 1" x 1.5"

$

$

Not available

10

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor WD-C44009

ADAPTER - clutch

$

$

Not available

12

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

13

WD-814-8016

BOLT - M8 - 1.25 x 16

$

$

Not available

14

White Outdoor WD-114-201

BOLT - 3/8" -24 x 1-1 /4"

$

$

Not available

15

WD-C42828

SCREW - M10 - 1.25 x 34

$

$

Not available
