FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Body And Attaching Parts Parts Diagram

Front-Mount Riding Mower

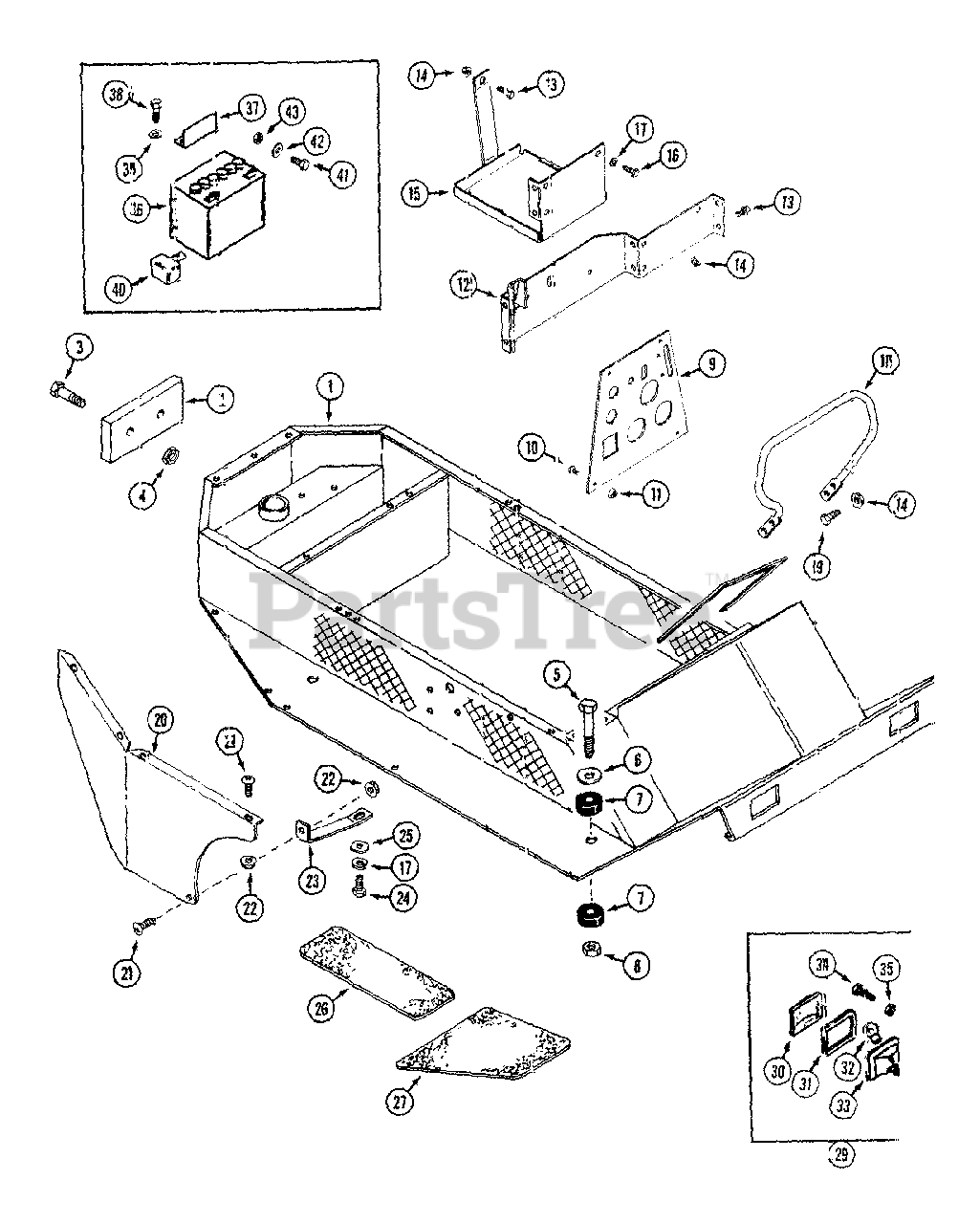

Body And Attaching Parts Parts Diagram

  • Title

1

WD-C45252

BODY

$

$

Not available

2

WD-C45299

PLATE - weight

$

$

Not available

3

White Outdoor WD-113-248

BOLT - 3/8" - 16 x 2-3/4"

$

$

Not available

4

White Outdoor WD-131-1352

NUT - 3/8" - 16 Flange lock

$

$

Not available

5

WD-113-429

BOLT - 1/2" - 13 x 5"

$

$

Not available

6

White Outdoor WD-C37581

WASHER - 1/2" x 2"

$

$

Not available

7

White Outdoor WD-C37818

MOUNT - rubber, body

$

$

Not available

8

White Outdoor WD-131-70

NUT - 1/2" - 13 lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

9

WD-C45164

PANEL - instrument

$

$

Not available

10

WD-182-573

SCREW - #10 - 24 x 1/2"

$

$

Not available

11

WD-C34117

NUT - #10 - 24 flange lock

$

$

Not available

12

WD-C45354

CROSSMEMBER - body

$

$

Not available

13

WD-113-118

BOLT - 5/16" - 18 x 5/8"

$

$

Not available

14

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

WD-C45349

TRAY - battery

$

$

Not available

16

WD-113-101

BOLT - 5/16" - 18 x 1/2"

$

$

Not available

17

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

18

White Outdoor WD-C44844

RAIL - guard

$

$

Not available

19

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

20

WD-C45346

SKIRT - fender L.H.

$

$

Not available

WD-C45347

SKIRT - fender R.H.

Note: (Shown)

$

$

Not available

21

WD-182-547

SCREW - 1/4" - 20 x 1/2"

$

$

Not available

22

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

23

WD-C45348

BRACE - fender

$

$

Not available

24

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

25

White Outdoor WD-195-103

WASHER - 3/8" x 7/8"

$

$

Not available

26

White Outdoor WD-C43382

PAD - footrest, side

$

$

Not available

27

WD-C43419

PAD - foot, front L.H.

$

$

Not available

White Outdoor WD-C43420

PAD - foot, front R.H.

Note: (Shown)

$

$

Not available

?28

WD-C44035

TRIM - instrument panel

$

$

Not available

29

White Outdoor WD-C32178

HEADLIGHT

$

$

Not available

30

White Outdoor WD-C22573

LENS
(Superseded to WD-C32178)

$

$

Not available

31

White Outdoor WD-C14304

GASKET

$

$

Not available

32

White Outdoor WD-C28932

BULB

$

$

Not available

33

~NSS

REFLECTOR

$

$

Not available

34

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

35

WD-129-101

NUT - 1/4" - 20

$

$

Not available

36

WD-C44071

BATTERY - 12V, 450 CCA

$

$

Not available

37

WD-C44004

RETAINER - battery

$

$

Not available

38

WD-113-17

BOLT - 1/4" - 20 x 1-1/4"

$

$

Not available

39

WD-195-518

WASHER - .28" x .62"

$

$

Not available

40

WD-C43046

INSULATOR - post

$

$

Not available

41

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

42

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

43

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available
