FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Alternator Assembly Parts Diagram

Front-Mount Riding Mower

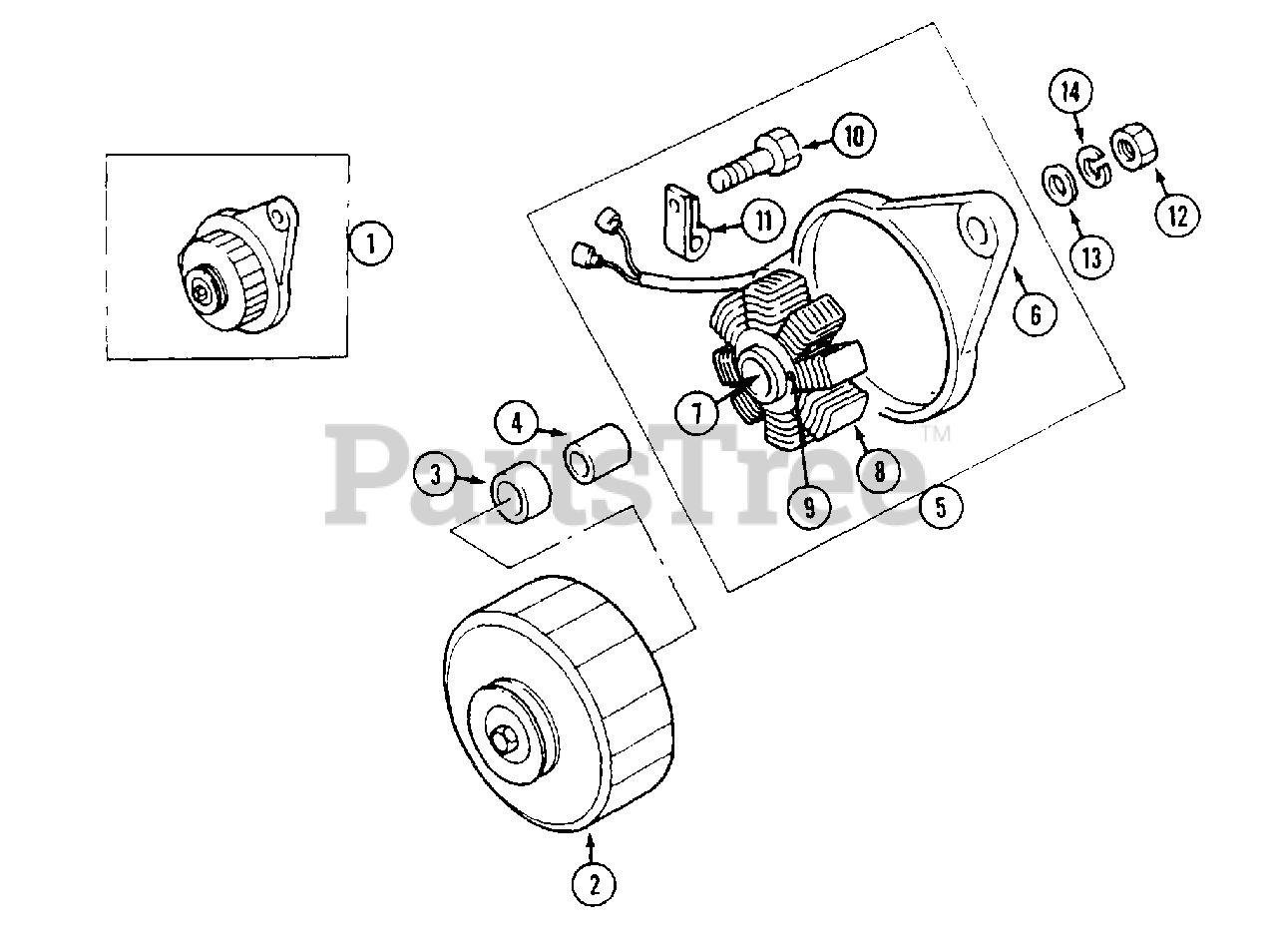

Alternator Assembly Parts Diagram

  • Title
1

WD-C43610

ALTERNATOR

$

$

Not available

2

WD-P185446219

PULLEY

$

$

Not available

3

WD-P040126201

BEARING

$

$

Not available

4

WD-P199236510

COLLAR

$

$

Not available

5

WD-P188446217

PLATE ASSEMBLY

$

$

Not available

6

WD-P185716200

PLATE

$

$

Not available

7

WD-P040126201

BEARING

$

$

Not available

8

WD-P185446218

STATOR

$

$

Not available

9

WD-P015140425

SCREW

$

$

Not available

10

WD-P016140408

SCREW

$

$

Not available

11

WD-P185446220

CLIP

$

$

Not available

12

WD-P020210010

NUT

$

$

Not available

13

WD-P026100010

WASHER

$

$

Not available

14

WD-P027100010

WASHER

$

$

Not available
