FR-1800 C (133-018-190) - White Outdoor Front-Mount Riding Mower (1993) Gear Box (Superior) Parts Diagram

Front-Mount Riding Mower

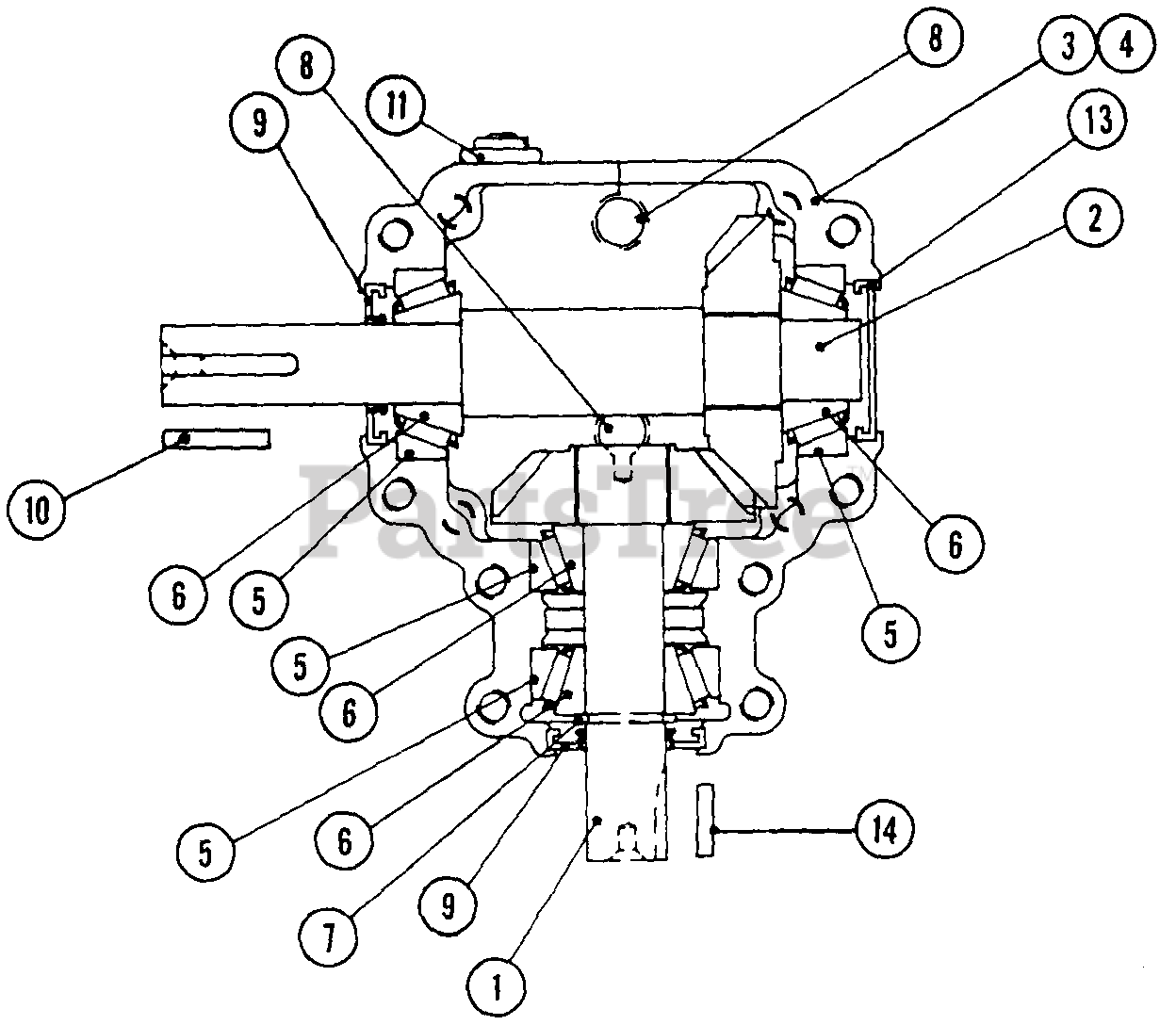

Gear Box (Superior) Parts Diagram

  • Title
1

WD-C42924

SHAFT - pinion, with gear

$

$

Not available

2

WD-C42923

SHAFT - cross, with gear

$

$

Not available

3

White Outdoor WD-C42917

HOUSING - with tapped holes

$

$

Not available

4

White Outdoor WD-C42927

HOUSING - with thru holes

Note: (Not shown)

$

$

Not available

5

WD-C42918

CUP - bearing

$

$

Not available

6

WD-C42921

CONE - bearing

$

$

Not available

7

White Outdoor WD-C42919

RING - retaining

$

$

Not available

8

WD-C42920

PLUG - pipe 1/4"

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-300-0021

KEY - 3/16" x 1" input shaft
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

11

WD-C42928

PIPE - vent

$

$

Not available

?12

WD-C42926

BOLT - 5/16" x 1" socket head

Note: (Not shown)

$

$

Not available

13

WD-C42925

CAP - end

$

$

Not available

14

White Outdoor WD-C28215

KEY - 3/16" x 5/8" output shaft

$

$

Not available
