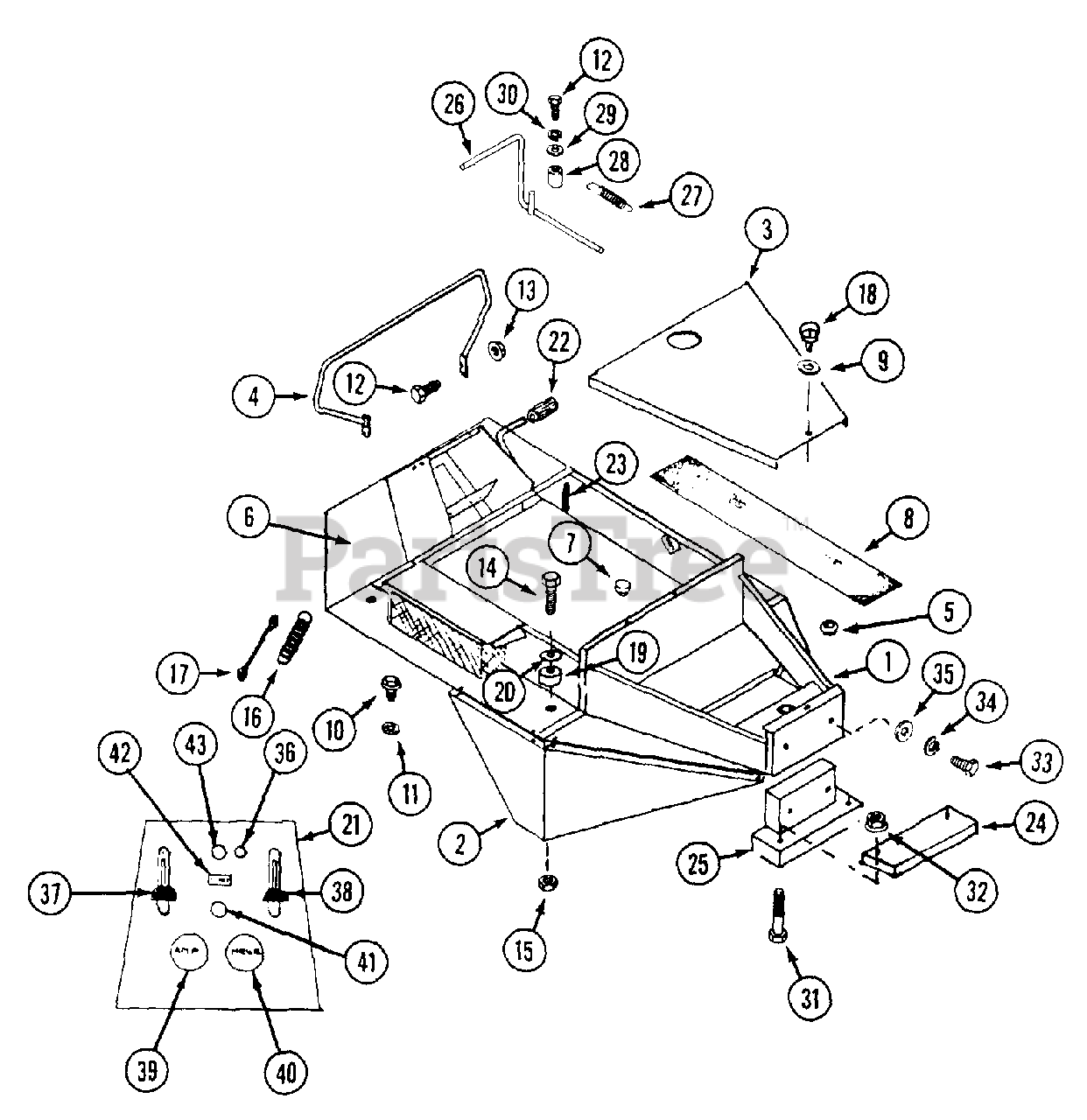

FR-1800 C (133-018-190) - White Outdoor Front-Mount Riding Mower (1993) Body Assembly Parts Diagram

Front-Mount Riding Mower

Body Assembly Parts Diagram

  • Title
1

WD-C44260

BODY

Note: (1800C)

$

$

Not available

1

WD-C42629

BODY

Note: (1800)

$

$

Not available

2

White Outdoor WD-201-0016

FENDER - L.H.

Note: (Shown)

$

$

Not available

2

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

6

WD-C43419

PAD - safety walk L.H. front

$

$

Not available

6

White Outdoor WD-C43420

PAD - safety walk R.H. front

$

$

Not available

7

WD-C37817

BUMPER - nylon

$

$

Not available

WD-C44036

TRIM - tower

Note: (Not shown)

$

$

Not available

8

White Outdoor WD-C43421

PAD - safety walk R.H. side

$

$

Not available

9

WD-900-5812

GROMMET

$

$

Not available

10

WD-C34808

BOLT - 1/4"-20 x 3/4" tapping

$

$

Not available

11

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

12

White Outdoor WD-113-102

BOLT - 5/16"-18 x 3/4"

$

$

Not available

13

White Outdoor WD-131-911

NUT - 5/16"-18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor WD-113-425

BOLT - 1/2"-13 x 3"
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

15

White Outdoor WD-131-70

NUT - 1/2"-13 lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 9

0

16

$

$

Not available

17

White Outdoor WD-900-5518

DECK LIFT CABLE

$

$

Not available

18

$

$

Not available

19

White Outdoor WD-900-5509

RUBBER BODY MOUNT

$

$

Not available

20

White Outdoor WD-200-0015

BODY MOUNT WASHER

$

$

Not available

$

$

Not available

WD-900-6152

SCREW - #12 x 1/2

Note: Dash board

$

$

Not available

22

White Outdoor WD-900-5563

BRAKE PEDAL PAD
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

$

$

Not available

24

White Outdoor WD-230-0010

TAIL WEIGHT - 13 lbs.

Note: Opt.

$

$

Not available

25

$

$

Not available

26

WD-201-0001

LEVER - brake lock

$

$

Not available

27

White Outdoor WD-900-5562

SPRING - return

$

$

Not available

28

$

$

Not available

29

WD-900-6152

WASHER - 5/16"

$

$

Not available

30

WD-900-6151

LOCKWASHER - 5/16"

$

$

Not available

31

WD-113-259

BOLT - 3/8"-16 x 4-1/2"

$

$

Not available

32

White Outdoor WD-900-3013

NUT - 3/8"-16 flange lock

$

$

Not available

33

White Outdoor WD-113-103

BOLT - 5/16"-18 x 1"

$

$

Not available

34

WD-900-6151

LOCKWASHER - 5/16"

$

$

Not available

35

WD-900-6152

WASHER - 5/16"

$

$

Not available

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available

38

UNKNOWN

$

$

Not available

39

UNKNOWN

$

$

Not available

40

UNKNOWN

$

$

Not available

41

UNKNOWN

$

$

Not available

42

UNKNOWN

$

$

Not available

43

UNKNOWN

$

$

Not available
