FR-1800 (139-013-190) - White Outdoor Front-Mount Riding Mower (1989) 42" Deck Drive Parts Diagram

Front-Mount Riding Mower

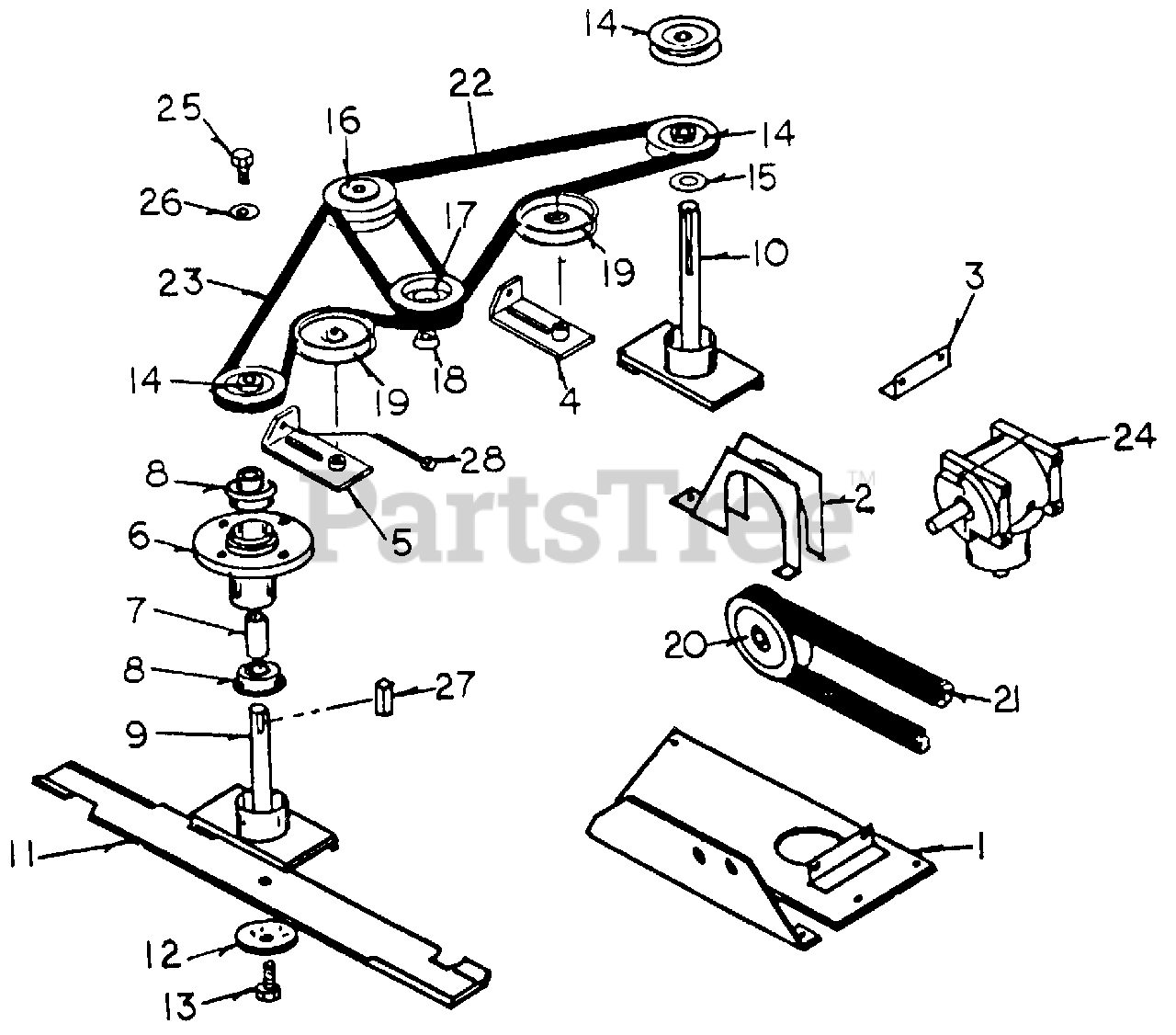

42" Deck Drive Parts Diagram

  • Title

1

White Outdoor WD-311-0001

Gearbox Mount

$

$

Not available

2

White Outdoor WD-311-0002

Belt Guard

Note: (12 & 1800)

$

$

Not available

White Outdoor WD-330-0030

Belt Guard

Note: (2000)

$

$

Not available

3

White Outdoor WD-310-0006

Gearbox Mount Angle

$

$

Not available

4

White Outdoor WD-300-0029

Belt Tightener

$

$

Not available

5

White Outdoor WD-300-0030

Belt Tightener

$

$

Not available

6

White Outdoor WD-300-0025

Spindle Housing

$

$

Not available

7

White Outdoor WD-300-0027

Spindle Spacer

$

$

Not available

8

White Outdoor WD-900-3506

Spindle Bearing
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

9

White Outdoor WD-300-0026

Spindle Shaft
(Superseded to WD-C37883)

$

$

Not available

10

White Outdoor WD-300-0033

Spindle Shaft

$

$

Not available

11

White Outdoor WD-900-5530

Blade

$

$

Not available

12

White Outdoor WD-900-5534

Blade Washer

$

$

Not available

13

White Outdoor WD-900-6080

Hex Bolt, 3/8-24 x 1-1/4"
(Superseded to WD-114-201)

$

$

Not available

14

White Outdoor WD-900-2507

Spindle Pulley
(Superseded to WD-C37887)

$

$

Not available

15

White Outdoor WD-900-6002

Spacer Washer

$

$

Not available

16

White Outdoor WD-900-2516

Spindle Pulley, Double A
(Superseded to WD-C37889)

$

$

Not available

17

White Outdoor WD-900-2515

Gearbox Pulley, Out Put

$

$

Not available

18

Hub

Note: (Included w/8002515)

$

$

Not available

19

White Outdoor WD-900-2518

Idler Pulley

$

$

Not available

20

White Outdoor WD-900-2525

Gearbox Pulley, In Put
(Superseded to WD-C37892)

Note: (12 &1800)

$

$

Not available

White Outdoor WD-900-2543

Gearbox Pulley, In Put

Note: (2000)

$

$

Not available

21

White Outdoor WD-900-3004

Deck Drive Belt

Note: (12 & 1800)

$

$

Not available

White Outdoor WD-900-3023

Deck Drive Belt
(Superseded to WD-C38566)

Note: (2000)

$

$

Not available

22

White Outdoor WD-900-3006

Deck Belt
(Superseded to WD-C37896)

$

$

Not available

23

White Outdoor WD-900-3007

Deck Belt

$

$

Not available

24

White Outdoor WD-900-5535

Gearbox

$

$

Not available

25

White Outdoor WD-900-6053

Hex Bolt, 5/6-24 x 3/4"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor WD-300-0017

Washer, 5/16", 10 Ga.

$

$

Not available

27

White Outdoor WD-300-0021

Key Stock, 3/16"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor WD-900-6034

Adjustment Bolt

$

$

Not available
