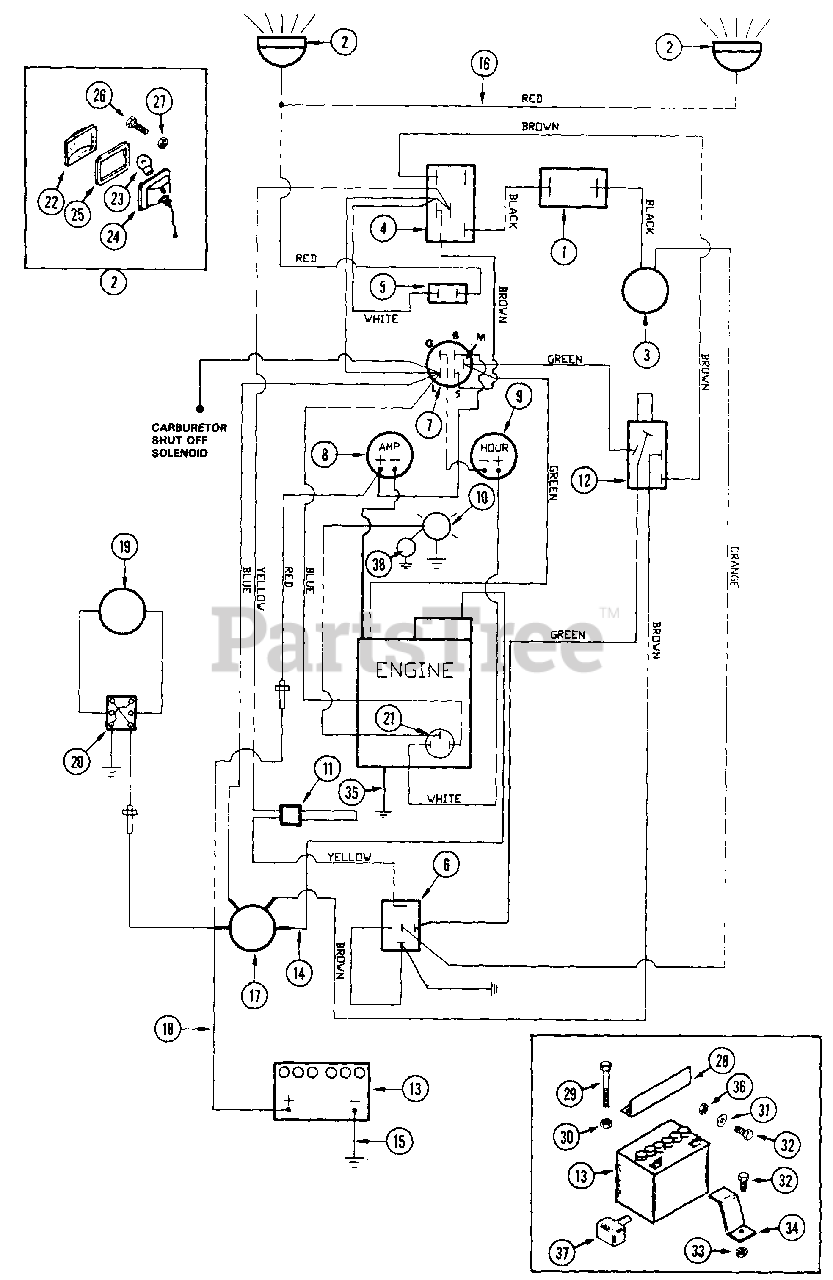

FR-1800 (133-013-190) - White Outdoor Front-Mount Riding Mower (1993) Wiring Diagram Parts Diagram

Front-Mount Riding Mower

Wiring Diagram Parts Diagram

  • Title

White Outdoor WD-C44265

HARNESS wire

Note: (1800C)

$

$

Not available

WD-900-2034

HARNESS wire

Note: (1800)

$

$

Not available

1

White Outdoor WD-900-2044

BREAKER - circuit, 10 amp

$

$

Not available

2

HEADLIGHT

Note: (NSS. use C32178 and C44075)

$

$

Not available

3

White Outdoor WD-900-5581

CLUTCH - PTO, electric

$

$

Not available

4

White Outdoor WD-900-2028

SWITCH - PTO
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

5

White Outdoor WD-900-2027

SWITCH - headlight
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

6

White Outdoor WD-900-2037

RELAY
(Superseded to WD-C37515)

$

$

Not available

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

Note: (Relay mounting)

$

$

Not available

WD-192-19

LOCKWASHER - 1/4"

Note: (Relay mounting)

$

$

Not available

WD-121-101

NUT - 1/4"-20

Note: (Relay mounting)

$

$

Not available

7

White Outdoor WD-900-2003

SWITCH - ignition
(Superseded to 925-0267B)

Note: (Also use C32407)

$35.99

$

In Stock, Qty 8

0

White Outdoor WD-C32407

KEY - ignition

$

$

Not available

WD-C32397

CAP - nut

$

$

Not available

WD-193-63

LOCKWASHER - 5/8"

$

$

Not available

WD-C32396

NUT - 5/8"-32

$

$

Not available

8

White Outdoor WD-900-2002

AMMETER

$

$

Not available

9

White Outdoor WD-900-2023

METER - hour

$

$

Not available

10

White Outdoor WD-900-2041

LIGHT - oil

$

$

Not available

11

White Outdoor WD-900-2001

SWITCH - seat

$

$

Not available

12

White Outdoor WD-900-2029

SWITCH - safety

Note: (Enlarge mounting hole if required)

$

$

Not available

13

WD-900-2060

BATTERY - 12 volt

$

$

Not available

14

White Outdoor WD-900-2010

WIRE - starter

Note: (1800)

$

$

Not available

14

White Outdoor WD-C44261

WIRE - starter

Note: (1800C)

$

$

Not available

15

White Outdoor WD-900-2009

CABLE - ground

$

$

Not available

16

White Outdoor WD-900-2014

WIRE - headlight

$

$

Not available

17

White Outdoor WD-900-2005

SOLENOID - starting

$

$

Not available

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

Note: (Solenoid mounting)

$

$

Not available

WD-192-19

LOCKWASHER - 1/4"

Note: (Solenoid mounting)

$

$

Not available

WD-129-101

NUT - 1/4"-20

Note: (Solenoid and relay mounting)

$

$

Not available

White Outdoor WD-192-20

LOCKWASHER - 5/16"

Note: (Solenoid studs)

$

$

Not available

White Outdoor WD-129-102

NUT - 5/16"-18

Note: (Solenoid studs)

$

$

Not available

WD-192-18

LOCKWASHER - 3/16"

Note: (Solenoid studs)

$

$

Not available

WD-129-37

NUT - #10-32

Note: (Solenoid studs)

$

$

Not available

WD-129-6

NUT - #8-32

Note: (Solenoid studs)

$

$

Not available

18

White Outdoor WD-900-2010

WIRE - battery positive to solenoid

$

$

Not available

19

White Outdoor WD-900-2033

ACTUATOR - electric lift

Note: (Early production) (also see page 73)

$

$

Not available

20

White Outdoor WD-900-2020

SWITCH - deck lift

Note: (Early production) (also see page 73)

$

$

Not available

21

White Outdoor WD-900-5017

SWITCH - oil light
(Superseded to WD-C37531P)

$

$

Not available

22

White Outdoor WD-900-2024

LENS - headlight
(Superseded to WD-C32178)

$

$

Not available

23

White Outdoor WD-900-2025

BULB - headlight
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

24

White Outdoor WD-900-2026

RECEPTICAL - headlight

$

$

Not available

25

WD-900-2068

GASKET - headlight

$

$

Not available

26

WD-113-4

BOLT - 1/4"-20 x 1"

$

$

Not available

27

WD-129-101

NUT - 1/4"-20

$

$

Not available

28

White Outdoor WD-200-0019

BRACKET - battery hold down

$

$

Not available

29

WD-C38677

BOLT - 1/4"-20 x 7"

$

$

Not available

30

White Outdoor WD-131-71

NUT - 1/4"-20 lock

$

$

Not available

31

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

32

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

$

$

Not available

33

White Outdoor WD-131-934

NUT - 1/4"-20 flange lock

$

$

Not available

34

White Outdoor WD-200-0021

PROTECTOR - battery post

Note: (Early production)

$

$

Not available

35

WD-900-2073

WIRE - engine ground

$

$

Not available

36

WD-129-101

NUT - 1/4"-20

$

$

Not available

37

White Outdoor WD-200-0021

COVER - terminal

$

$

Not available

38

White Outdoor WD-C43048

HORN - warning

Note: (1800C)

$

$

Not available
