FR-1800 (133-013-190) - White Outdoor Front-Mount Riding Mower (1993) Base Assembly (S/N Prior to 41-027-012814) Parts Diagram

Front-Mount Riding Mower

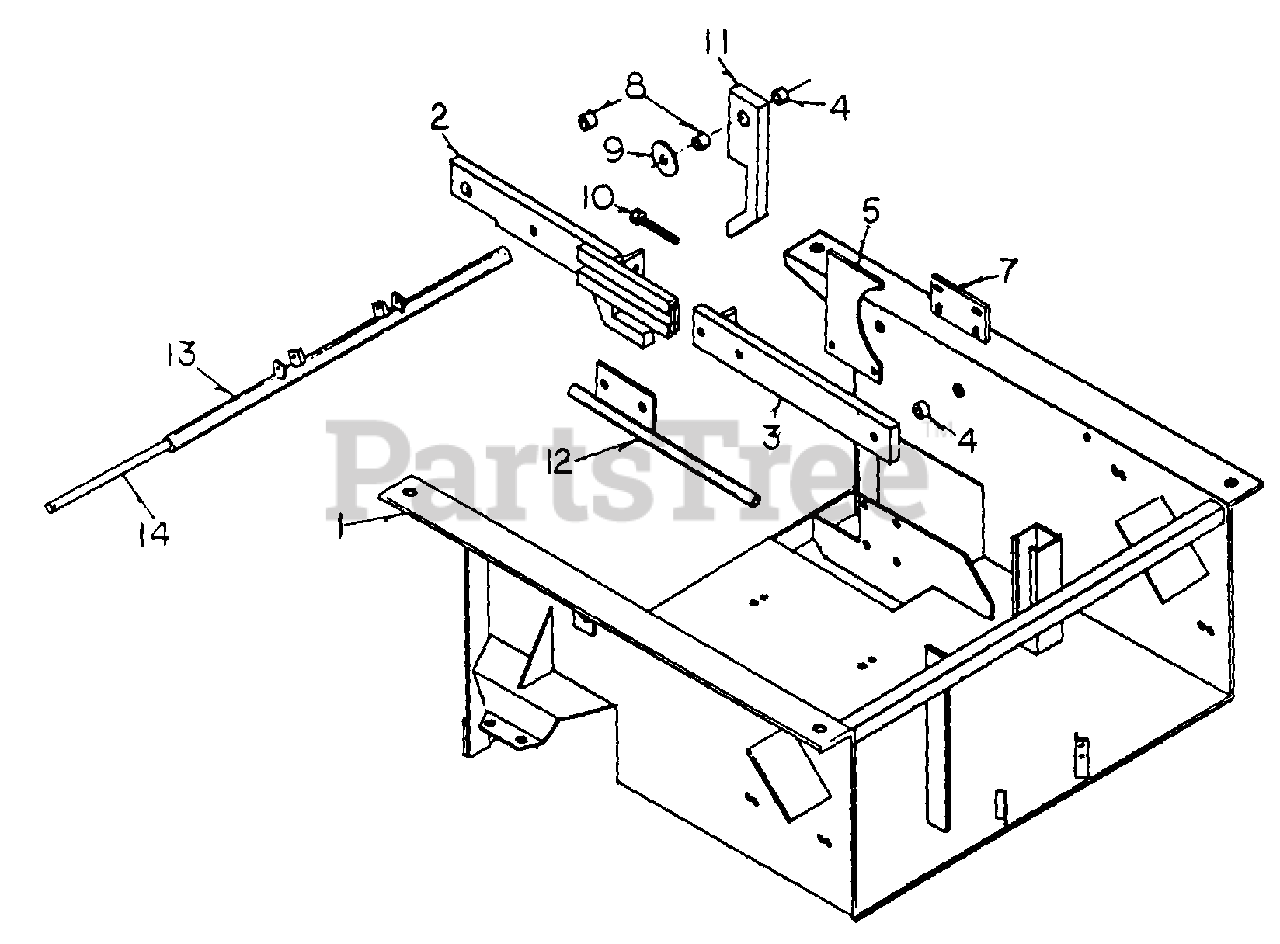

Base Assembly (S/N Prior to 41-027-012814) Parts Diagram

  • Title
1

WD-113-0000

BASE

$

$

Not available

2

White Outdoor WD-300-0023RH

DECK LIFT ARM - Front RH

$

$

Not available

White Outdoor WD-300-0023LH

DECK LIFT ARM - Front LH

$

$

Not available

3

WD-301-0024RH

DECK LIFT ARM - Back

$

$

Not available

4

White Outdoor WD-300-0013S

BUSHING, Short
(Superseded to WD-C37576)

$

$

Not available

5

WD-113-0007

BELT RETAINER

$

$

Not available

7

WD-113-0008

BELT RETAINER MOUNT

$

$

Not available

8

White Outdoor WD-300-0013

BUSHING - Long
(Superseded to WD-C37586)

$

$

Not available

$

$

Not available

10

White Outdoor WD-900-6088

DECK BELT ADJUSTMENT BOLT

$

$

Not available

11

White Outdoor WD-111-0023

FORWARD NOSE DOWN LOCK

$

$

Not available

$

$

Not available

$

$

Not available

14

WD-300-0022

CROSS BAR PIN

$

$

Not available
