FR-1800 (133-013-190) - White Outdoor Front-Mount Riding Mower (1993) Base Assembly (S/N 41-027-012814 & Up) Parts Diagram

Front-Mount Riding Mower

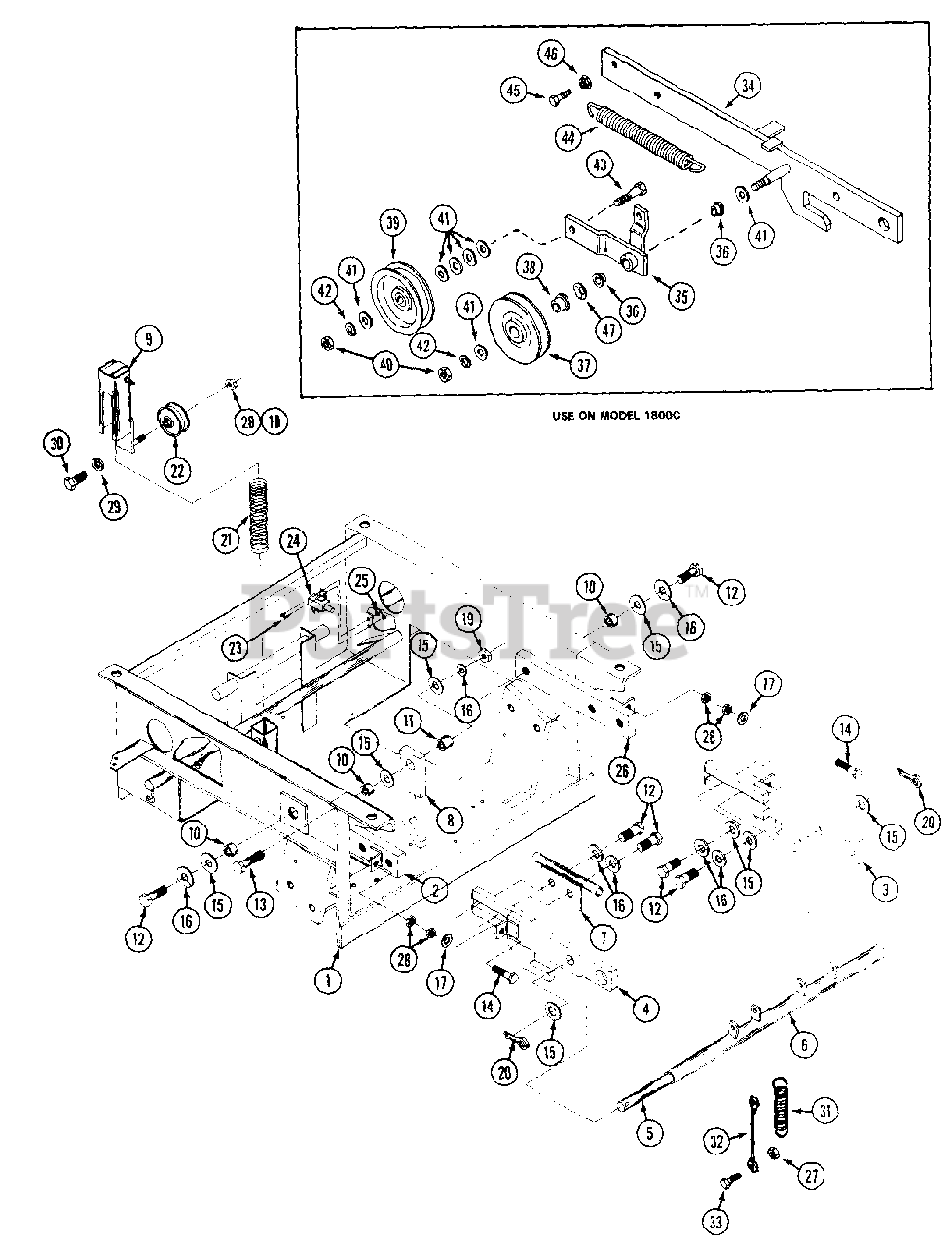

Base Assembly (S/N 41-027-012814 & Up) Parts Diagram

1

White Outdoor WD-114-0000

BASE

Note: 5018. Shown

$

$

Not available

2

WD-301-0024RH

ARM - deck lift R.H.

Note: (1800)

$

$

Not available

3

White Outdoor WD-300-0023LH

ARM - front L.H

Note: (1800)

$

$

Not available

4

White Outdoor WD-300-0023RH

ARM - front R.H.

Note: (1800)

$

$

Not available

5

WD-300-0022

PIN - cross bar

$

$

Not available

$

$

Not available

$

$

Not available

8

White Outdoor WD-111-0023

LOCK - forward nose down

$

$

Not available

9

White Outdoor WD-114-0003

TUBE - drive idler

Note: (1800)

$

$

Not available

9

White Outdoor WD-C44329

TUBE - drive idler

Note: (1800C)

$

$

Not available

10

White Outdoor WD-300-0013S

BUSHING - deck lift arm (3/8" long)
(Superseded to WD-C37576)

$

$

Not available

11

White Outdoor WD-300-0013

BUSHING - pivot (1/2" long)
(Superseded to WD-C37586)

$

$

Not available

12

White Outdoor WD-113-417

BOLT - 1/2"-13 x 1-1/4"

$

$

Not available

13

White Outdoor WD-113-441

BOLT - 1/2"-13 x 2-1/4"

$

$

Not available

14

White Outdoor WD-900-6088

BOLT - 3/8"-16 x 3"

$

$

Not available

15

White Outdoor WD-195-106

WASHER - 1/2"

$

$

Not available

16

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

17

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

18

White Outdoor WD-131-938

NUT - flange lock 3/8"-16

$

$

Not available

19

White Outdoor WD-129-105

NUT - 1/2"-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

20

WD-132-310

PIN - cotter 1/8" x 1"

$

$

Not available

21

White Outdoor WD-900-5580

SPRING - idler tension

$

$

Not available

22

White Outdoor WD-900-2553

PULLEY - idler 2-1/4" O.D.

$

$

Not available

23

WD-C37597

SCREW - machine #10-32 x 5/8"

$

$

Not available

24

White Outdoor WD-900-2029

SWITCH - safety

$

$

Not available

25

White Outdoor WD-900-6150

NUT - lock #10-32

$

$

Not available

26

WD-301-0024LH

ARM - deck lift L.H.

Note: (1800)

$

$

Not available

27

White Outdoor WD-131-71

NUT - lock 1/4"-20

$

$

Not available

28

White Outdoor WD-129-103

NUT - 3/8"-16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor WD-113-257

BOLT - 3/8"-16 x 2-1/2"

$

$

Not available

31

White Outdoor WD-900-5516

SPRING - lift assist

$

$

Not available

32

$

$

Not available

33

WD-113-4

BOLT - 1/4"-20 x 1"

$

$

Not available

34

White Outdoor WD-C44249

ARM - deck L.H.

Note: 1800C

$

$

Not available

34

White Outdoor WD-C44250

ARM - deck R.H.

Note: (1800C)

$

$

Not available

35

White Outdoor WD-C44245

ARM - idler

Note: (1800C)

$

$

Not available

36

White Outdoor WD-C25229

BEARING - flange

Note: (1800C)

$

$

Not available

37

White Outdoor WD-C25370

PULLEY - "V" idler

Note: (1800C)

$

$

Not available

38

White Outdoor WD-C12264

BUSHING - pulley

Note: (1800C)

$

$

Not available

39

White Outdoor WD-C12251

PULLEY flat

Note: (1800C)

$

$

Not available

40

White Outdoor WD-129-103

NUT - 3/8"-16
(Superseded to 712-04065)

Note: (1800C)

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor WD-195-104

WASHER - 3/8"

Note: (1800C)

$

$

Not available

42

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

Note: (1800C)

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor WD-113-219

BOLT - 3/8"-16 x 2"

Note: (1800C)

$

$

Not available

44

White Outdoor WD-C44242

SPRING - extension

Note: (1800C)

$

$

Not available

45

White Outdoor WD-113-103

BOLT - 5/16"-18 x 1"

Note: (1800C)

$

$

Not available

46

White Outdoor WD-131-911

NUT - 5/16"-18 flange lock
(Superseded to 712-3004A)

Note: (1800C)

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor WD-C28263

WASHER - spring
(Superseded to 736-0331)

Note: (1800C)

$3.99

$

In Stock, Qty 20+

0
