FR-1800 (132-013-190) - White Outdoor Front-Mount Riding Mower (1992) Wheel Motor & Pump Assembly - S/N Prior to 41-027-012814 Parts Diagram

Front-Mount Riding Mower

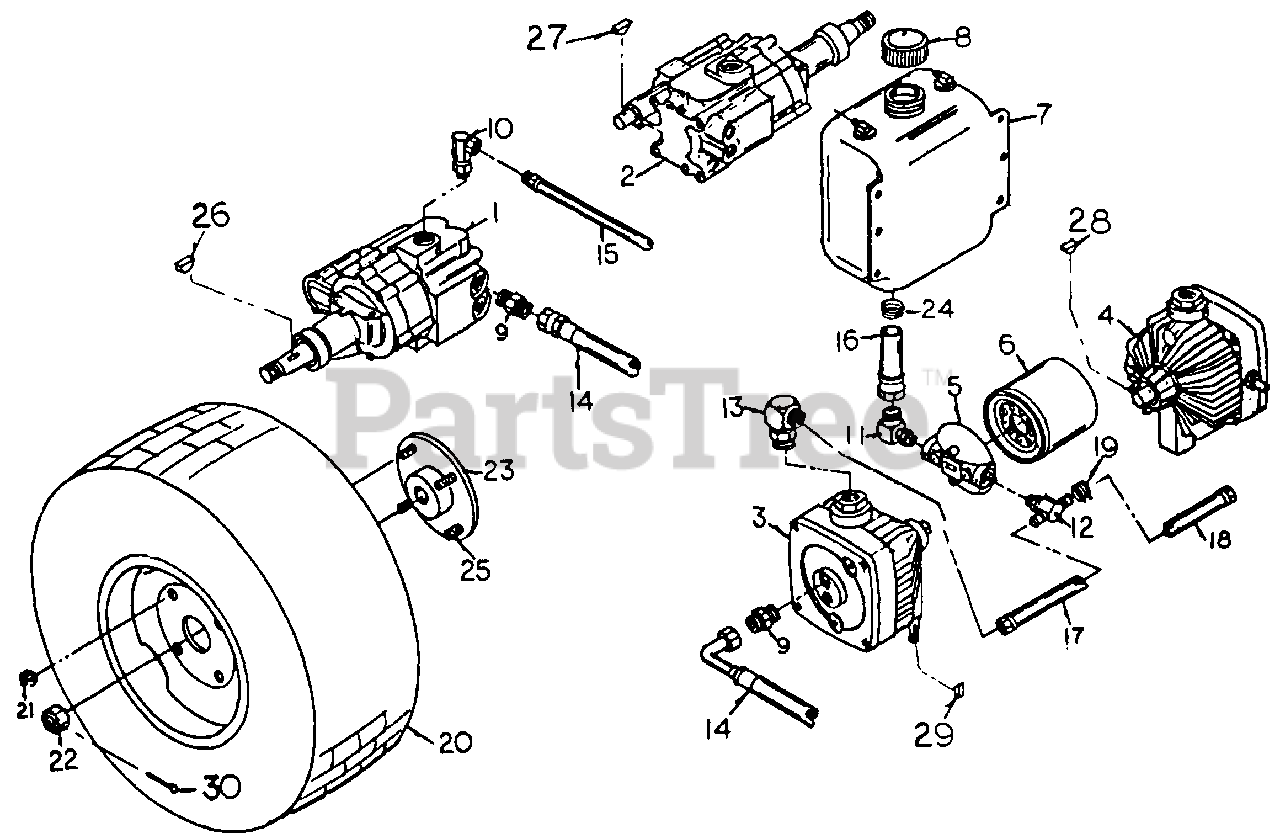

Wheel Motor & Pump Assembly - S/N Prior to 41-027-012814 Parts Diagram

  • Title

1

White Outdoor WD-900-8069

Wheel Motor, LH

$

$

Not available

2

White Outdoor WD-900-8068

Wheel Motor, RH

$

$

Not available

3

White Outdoor WD-900-8067

Pump, LH

Note: For model 7

$

$

Not available

4

White Outdoor WD-900-8066

Pump, RH

Note: For model 7

$

$

Not available

5

White Outdoor WD-900-8072

Housing, Oil Filter
(Superseded to WD-C37636)

$

$

Not available

6

White Outdoor WD-900-8073

Element, Oil Filter
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

7

White Outdoor WD-900-8058

3 Qt. Oil Tank
(Superseded to WD-C37778)

$

$

Not available

8

White Outdoor WD-900-8059

Cap, Oil Tank

$

$

Not available

9

White Outdoor WD-900-8005

Male Tube, Male O-ring Adp.

$

$

Not available

10

White Outdoor WD-900-8074

Male O-ring, 90° Female Pipe Swivel Adp.

$

$

Not available

11

White Outdoor WD-900-8076

Male O-ring, 90° Male Tube Adp.

$

$

Not available

12

White Outdoor WD-900-8077

Male O-ring, 1/2" Hose Barb Tee

$

$

Not available

13

White Outdoor WD-900-8075

Male O-ring, 90° Male Tube Adp.

$

$

Not available

14

White Outdoor WD-900-8078

Hose, 1/2" ID x 28" Long

$

$

Not available

15

White Outdoor WD-900-8071

Hose, 1/4" ID x 24" Long, Easy Couple

$

$

Not available

16

White Outdoor WD-900-8079

Hose, 5/8" ID x 3 3/4" Long, Easy Couple

$

$

Not available

17

White Outdoor WD-900-8081

Hose, 1/2" ID x 7 3/4" Long, Easy Couple

$

$

Not available

18

White Outdoor WD-900-8080

Hose, 1/2" ID x 12" Long, Easy Couple

$

$

Not available

19

White Outdoor WD-900-5729

Hose Clamp, 1/2"

$

$

Not available

20

White Outdoor WD-900-4013

Wheel Ass'y., 18 x 9.50-8

$

$

Not available

White Outdoor WD-900-4042

Tire, 18 x 9.50-8

$

$

Not available

White Outdoor WD-900-4008

Rim, 8" x 7"

$

$

Not available

20

White Outdoor WD-900-4038

Wheel Ass'y., 18 x 6.50-8

Note: (Use With 42" Deck)

$

$

Not available

White Outdoor WD-900-4041

Tire, 18 x 6.50-8

$

$

Not available

White Outdoor WD-900-4040

Rim, 8 x 5 1/2"

$

$

Not available

21

White Outdoor WD-900-6138

Lug Nut, 1/2-20

$

$

Not available

22

White Outdoor WD-900-8125

Nut, Wheel Motor

$

$

Not available

23

White Outdoor WD-900-4036

4-Bolt Wheel Hub

$

$

Not available

24

White Outdoor WD-900-5733

Hose Clamp, 5/8"

$

$

Not available

25

White Outdoor WD-900-6137

Lug Bolt, 1/2-20 x 1 1/4"

$

$

Not available

26

White Outdoor WD-900-8124

Woodruff Key, 1/4" x 1"
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

27

White Outdoor WD-900-8090

Woodruff Key, 3/16" x 3/4"
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

28

White Outdoor WD-900-4508

Woodruff Key, 1/8" x 1/2"
(Superseded to 914-0112)

$

$

Not available

29

WD-900-4524

Woodruff Key, 1/8" x 3/8"

$

$

Not available

30

WD-900-8122

Cotter Pin, 1/8" x 1 3/4"

$

$

Not available
