FR-1800 (132-013-190) - White Outdoor Front-Mount Riding Mower (1992) AGRI-FAB Sundstrand Hydraulic System & Cross Shaft S/N 41-027-012814-Up Parts Diagram

Front-Mount Riding Mower

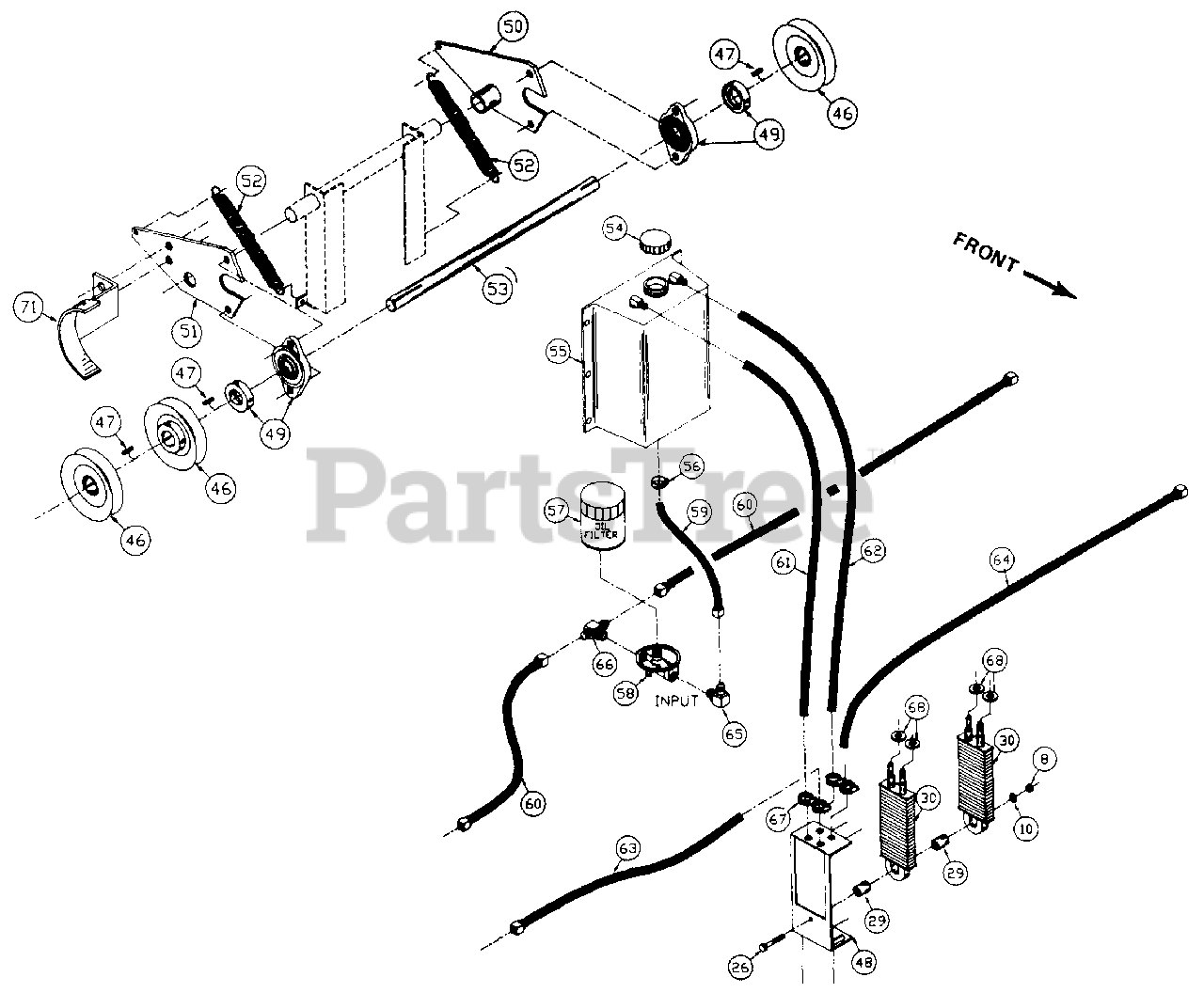

AGRI-FAB Sundstrand Hydraulic System & Cross Shaft S/N 41-027-012814-Up Parts Diagram

  • Title

8

WD-900-6027

Elastic Stop Nut, 1/4-20

$

$

Not available

10

WD-900-6029

Flatwasher, 1/4"

$

$

Not available

26

WD-900-6022

Hex Bolt, 1/4-20 x 2 1/4", GR5

$

$

Not available

29

WD-900-5840

Rubber Bushing

$

$

Not available

30

White Outdoor WD-900-8164

Oil Cooler

$

$

Not available

46

White Outdoor WD-900-2506

Pulley, 4" x 3/4" ID
(Superseded to WD-C37770)

$

$

Not available

47

White Outdoor WD-300-0021

Key, 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

48

WD-114-0012

Oil Cooler Mount

$

$

Not available

49

White Outdoor WD-900-3516

Bearing, 2-Bolt Flanged

$

$

Not available

50

White Outdoor WD-114-0006

Cross Shaft Bearing Mount, LH
(Superseded to WD-C37774)

$

$

Not available

51

White Outdoor WD-114-0007

Cross Shaft Bearing Mount, RH
(Superseded to WD-C37775)

$

$

Not available

52

White Outdoor WD-900-6502

Ext. Spring, 1" x 7 1/4", 11 GA

$

$

Not available

53

White Outdoor WD-114-0002

Drive Cross Shaft
(Superseded to WD-C45777)

$

$

Not available

54

White Outdoor WD-900-8059

Oil Tank Cap

$

$

Not available

55

White Outdoor WD-900-8165

Oil Tank, SA
(Superseded to WD-C37778)

$

$

Not available

56

White Outdoor WD-900-5733

Hose Clamp, 5/8"

$

$

Not available

57

White Outdoor WD-900-8073

Filter Element
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

58

White Outdoor WD-900-8072

Filter Head, #6 Ports
(Superseded to WD-C37636)

$

$

Not available

59

White Outdoor WD-900-8173

Hose Assembly, 5/8" x 11"

$

$

Not available

60

White Outdoor WD-900-8170

Hose Assembly, 3/8" x 13"

$

$

Not available

61

White Outdoor WD-900-8169

Hose, 3/8" x 25"

$

$

Not available

62

White Outdoor WD-900-8174

Hose, 3/8" x 27"

$

$

Not available

63

White Outdoor WD-900-8172

Hose Assembly, 3/8" x 38"

$

$

Not available

64

White Outdoor WD-900-8171

Hose Assembly, 3/8" x 24"

$

$

Not available

65

White Outdoor WD-900-8076

Male Tube, 90° Male O-ring Adpt.

$

$

Not available

66

White Outdoor WD-900-8095

Male O-ring, Male Tube Tee

$

$

Not available

67

White Outdoor WD-900-5657

Hose Clamp, 3/8"

$

$

Not available

68

White Outdoor WD-900-5829

Grommet, 1/2" ID x 1" OD

$

$

Not available

71

White Outdoor WD-114-0008

Cross Shaft Belt Retainer

$

$

Not available
