FR-1800 (132-013-190) - White Outdoor Front-Mount Riding Mower (1992) 62" Deck Drive Parts Diagram

Front-Mount Riding Mower

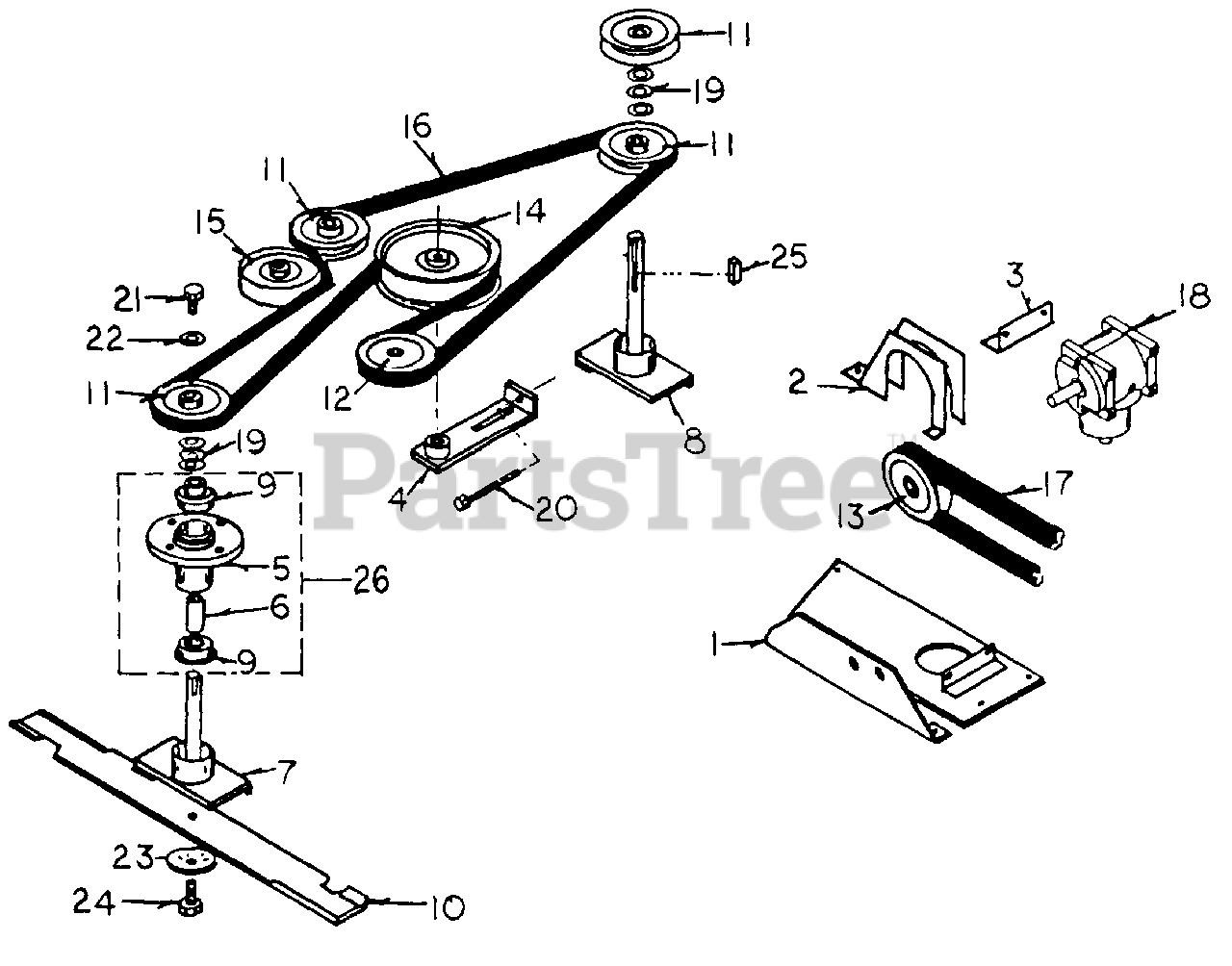

62" Deck Drive Parts Diagram

  • Title
1

$

$

Not available

2

White Outdoor WD-311-0002

Belt Guard

Note: (190-874-190)

$

$

Not available

White Outdoor WD-330-0030

Belt Guard

Note: (190-877-190)

$

$

Not available

3

White Outdoor WD-310-0006

Gearbox Mount Angle

$

$

Not available

4

White Outdoor WD-330-0012

Belt Tightener

$

$

Not available

5

White Outdoor WD-300-0031

Spindle Housing

$

$

Not available

6

White Outdoor WD-300-0034

Spindle Spacer

$

$

Not available

7

White Outdoor WD-300-0032

Spindle Shaft
(Superseded to WD-C37947)

$176.99

$

Usually ships in 3-6 days

0

8

White Outdoor WD-300-0040

Spindle Shaft, Long
(Superseded to WD-C37948)

$

$

Not available

9

White Outdoor WD-900-3506

Spindle Bearing
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

$

$

Not available

11

White Outdoor WD-900-2512

Spindle Pulley

$

$

Not available

12

White Outdoor WD-900-2510

Gearbox Pulley, Output

$

$

Not available

13

White Outdoor WD-900-2525

Gearbox Pulley, Input
(Superseded to WD-C37892)

Note: (190-874-190)

$

$

Not available

White Outdoor WD-900-2543

Gearbox Pulley, Input

Note: (190-877-190)

$

$

Not available

14

White Outdoor WD-900-2521

Idler Pulley, Large
(Superseded to WD-C37933)

$104.99

$

Usually ships in 3-6 days

0

15

White Outdoor WD-900-2522

Idler Pulley, Small
(Superseded to WD-C45655)

$

$

Not available

$

$

Not available

17

White Outdoor WD-900-3004

Deck Drive Belt

Note: (190-874-190)

$

$

Not available

White Outdoor WD-900-3023

Deck Drive Belt
(Superseded to WD-C38566)

Note: (190-877-190)

$

$

Not available

$

$

Not available

19

$

$

Not available

20

White Outdoor WD-900-6034

Adjustment Bolt

$

$

Not available

21

White Outdoor WD-900-6073

Hex Ny-Lock Bolt, 5/16-24 x 3/4"
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

22

White Outdoor WD-300-0017

Washer, 5/16", 10 GA

$

$

Not available

23

$

$

Not available

24

White Outdoor WD-900-6080

Hex Bolt, 3/8-24 x 1 1/14"
(Superseded to WD-114-201)

$

$

Not available

25

White Outdoor WD-300-0021

Key Stock, 3/16"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

26

White Outdoor WD-600-0001

Spindle Housing Assembly

Note: (Includes Items 5, 6 & 9)

$

$

Not available
