FR-1800 (130-013-190) - White Outdoor Front-Mount Riding Mower (1990) Base Assembly Parts Diagram

Front-Mount Riding Mower

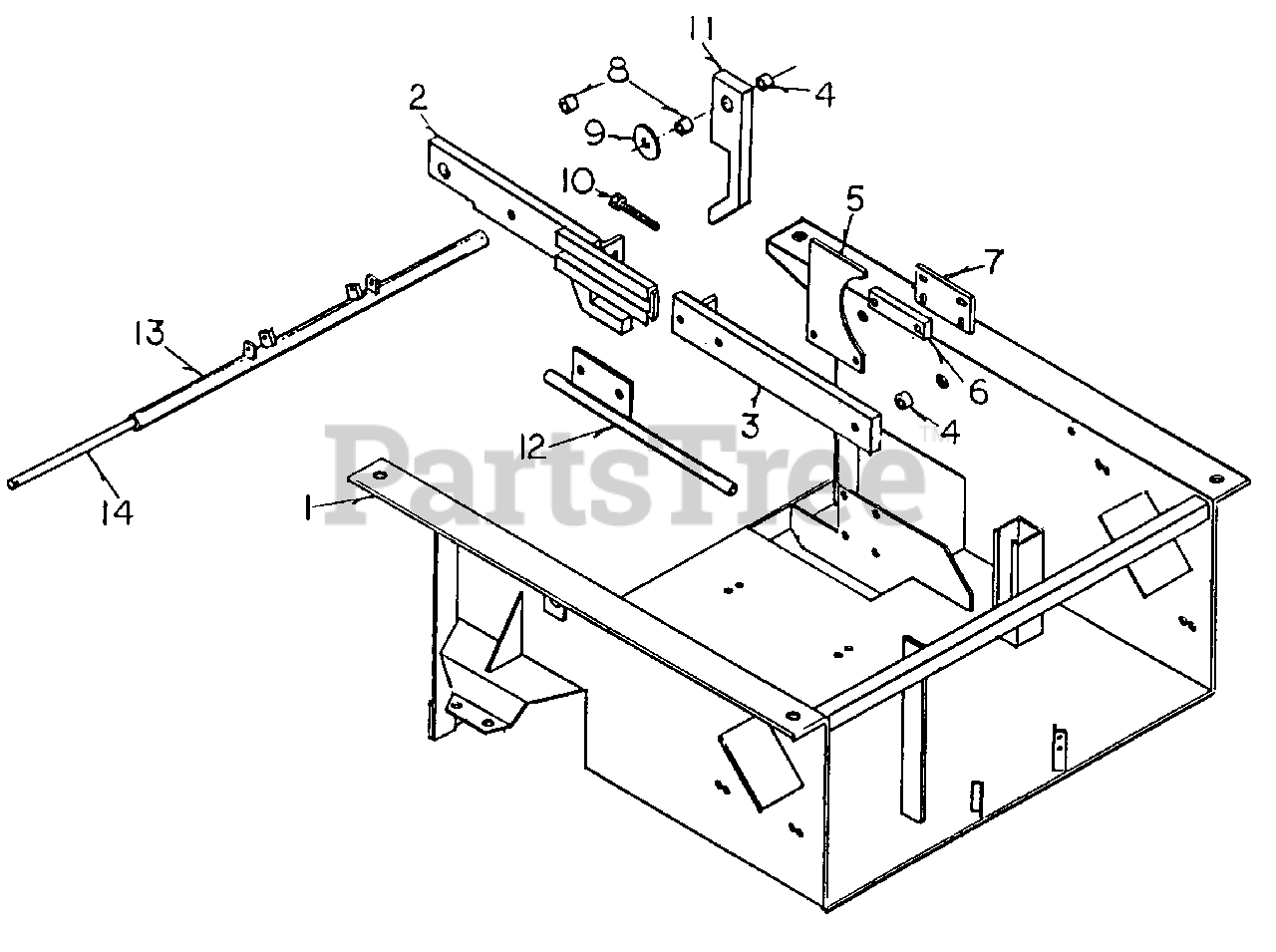

Base Assembly Parts Diagram

  • Title
1

WD-113-0000

Base

$

$

Not available

2

WD-300-0023

RH Deck Lift Arm, Front RH

$

$

Not available

WD-300-0023

LH Deck LLft Arm, Front LH

$

$

Not available

3

WD-301-0024

Deck Lift Arm, Back

$

$

Not available

4

White Outdoor WD-300-0013S

Bushing, Short
(Superseded to WD-C37576)

$

$

Not available

5

WD-113-0007

Belt Retainer

$

$

Not available

6

White Outdoor WD-113-0014

Belt Retainer Spacer

$

$

Not available

7

WD-112-0008

Belt Retainer Mount

$

$

Not available

8

White Outdoor WD-300-0013

Bushing, Long
(Superseded to WD-C37586)

$

$

Not available

$

$

Not available

10

White Outdoor WD-900-6088

Deck Belt Adjustment Bolt

$

$

Not available

11

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

$

$

Not available

$

$

Not available

14

WD-300-0022

Cross Bar Pin

$

$

Not available
