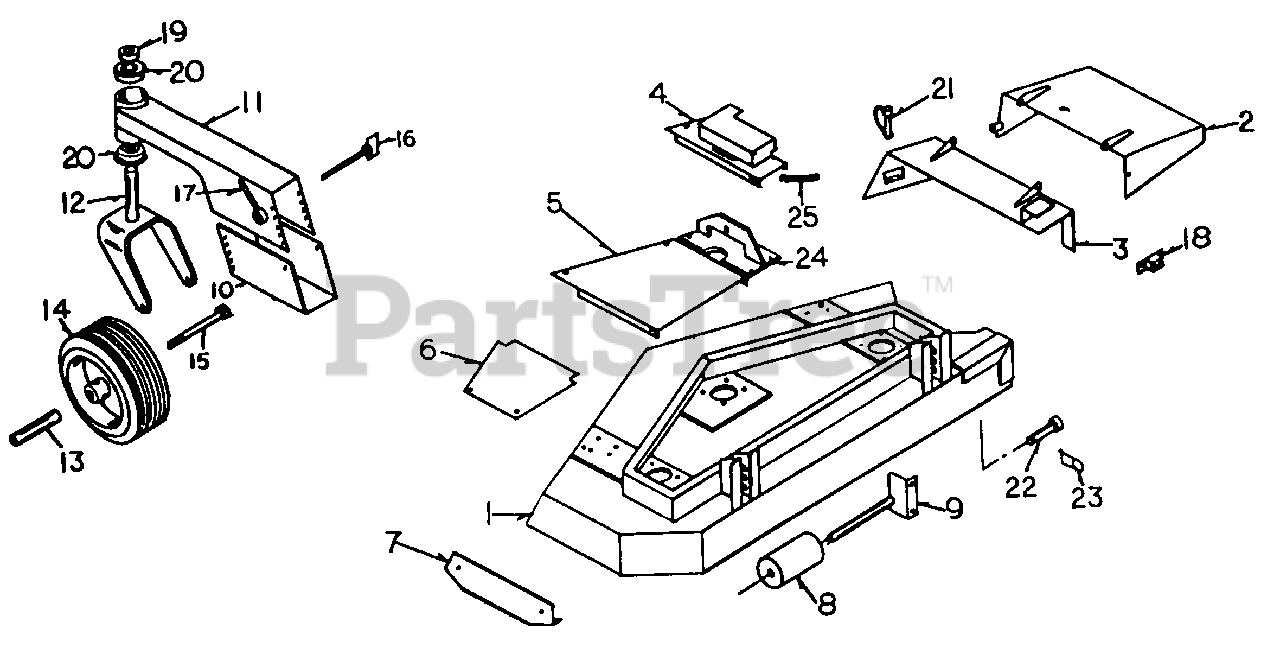

FR-1800 (130-013-190) - White Outdoor Front-Mount Riding Mower (1990) 42" Deck Parts Parts Diagram

Front-Mount Riding Mower

42" Deck Parts Parts Diagram

  • Title
1

WD-310-0000

Deck

$

$

Not available

$

$

Not available

3

White Outdoor WD-320-0016

Foot Guard Mount

$

$

Not available

4

$

$

Not available

5

$

$

Not available

$

$

Not available

$

$

Not available

8

White Outdoor WD-900-5559

Anit-scalp Roller

$

$

Not available

9

White Outdoor WD-300-0038

Shaft & Bracket

$

$

Not available

10

White Outdoor WD-300-0044

Gauge Wheel Mount Bracket

$

$

Not available

11

White Outdoor WD-300-0043

Gauge Wheel Mount

$

$

Not available

$

$

Not available

13

White Outdoor WD-200-0017

Axle
(Superseded to WD-C37915)

$

$

Not available

14

White Outdoor WD-900-4004

Gauge Wheel Assembly

$

$

Not available

White Outdoor WD-900-4006

Tire, 11 x 4.00

$

$

Not available

$

$

Not available

White Outdoor WD-900-3505

Bearing, Wheel Assembly

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

18

White Outdoor WD-900-2044

10 Amp Circuit Breaker

$

$

Not available

19

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

20

$

$

Not available

21

$

$

Not available

$

$

Not available

23

White Outdoor WD-900-5520

Hair Pin Cotter

$

$

Not available

24

WD-310-0004

Deck Mount

$

$

Not available

$

$

Not available
