FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995) Steering Cable Kit Parts Diagram

Front-Mount Riding Mower

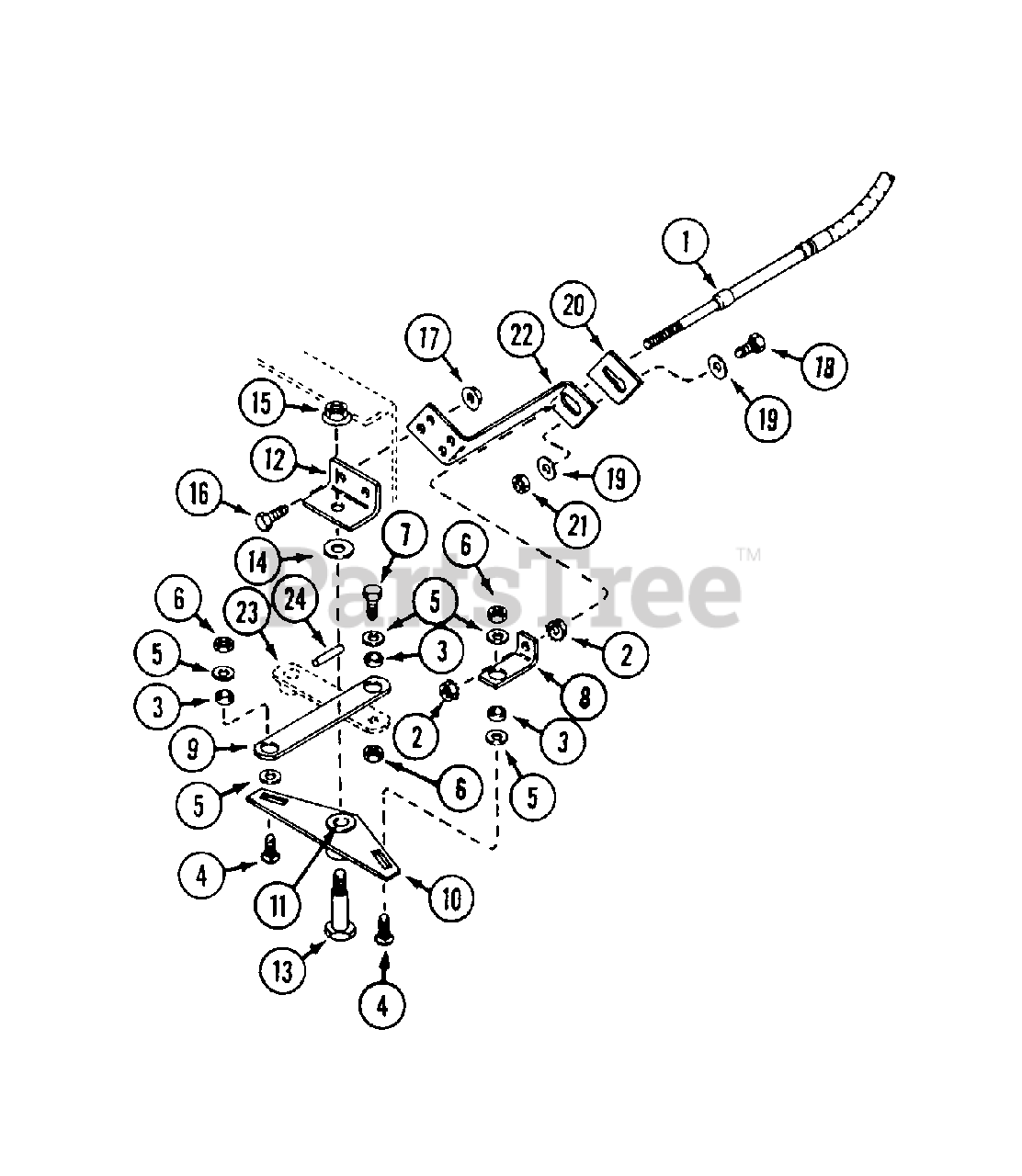

Steering Cable Kit Parts Diagram

  • Title

White Outdoor WD-C43293

STEERING CABLE KIT

$

$

Not available

1

White Outdoor WD-900-5819

CABLE - steering 46"

$

$

Not available

2

White Outdoor WD-900-6150

NUT - #10 - 32

$

$

Not available

3

White Outdoor WD-C42895

BUSHING - steering cable

$

$

Not available

4

White Outdoor WD-111-111

BOLT - 1/4" - 20 x 1" carriage

$

$

Not available

5

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

6

White Outdoor WD-131-71

NUT - 1/4" - 20

$

$

Not available

7

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

8

White Outdoor WD-C42896

BRACKET - steering cable end

$

$

Not available

9

White Outdoor WD-C42897

LINK - control cable

$

$

Not available

$

$

Not available

$

$

Not available

12

White Outdoor WD-C42901

BRACKET - bellcrank mounting

$

$

Not available

13

White Outdoor WD-C16745

BOLT - shoulder

$

$

Not available

14

White Outdoor WD-195-533

WASHER - 1/2"

$

$

Not available

15

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

16

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

17

White Outdoor WD-131-911

NUT - 5/16" - 18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

18

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

19

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

20

White Outdoor WD-C42903

PLATE - cable mounting

$

$

Not available

21

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

22

White Outdoor WD-C42902

BRACKET - cable mounting

$

$

Not available

23

White Outdoor WD-C42904

ARM - transmission

$

$

Not available

24

$

$

Not available
