FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995) Single Tail Wheel Parts Diagram

Front-Mount Riding Mower

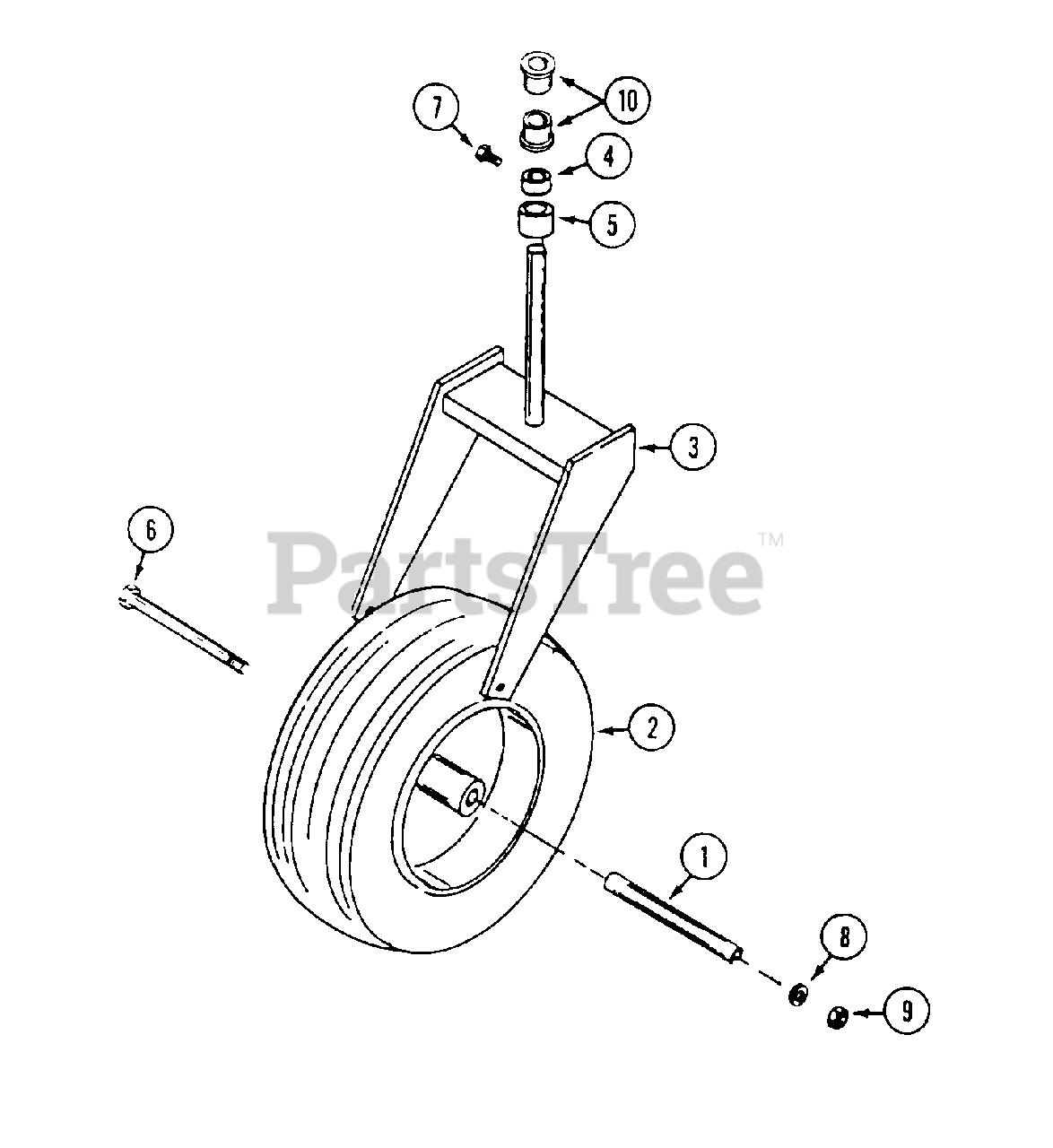

Single Tail Wheel Parts Diagram

  • Title
1

$

$

Not available

2

White Outdoor WD-900-4017

WHEEL ASSEMBLY - tail

$

$

Not available

White Outdoor WD-900-3515

BEARING - wheel

$

$

Not available

White Outdoor WD-900-4018

TIRE - 15 x 6.50 - 8

$

$

Not available

White Outdoor WD-900-4019

RIM - 8" w/bearing

$

$

Not available

3

White Outdoor WD-230-0001

FORK - tail wheel

$

$

Not available

4

White Outdoor WD-900-5510

COLLAR - set 1"

$

$

Not available

5

White Outdoor WD-213-0003

SPACER - tail wheel fork

$

$

Not available

6

White Outdoor WD-113-452

BOLT - 1/2" - 13 x 9-1/2"

$

$

Not available

7

White Outdoor WD-85-58

SCREW -set 5/16" - 18 x 1/2" square head

$

$

Not available

8

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

9

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor WD-900-3501

BEARING - ball 1"

$

$

Not available

WD-219-92

FITTING - grease 90° 1/4" - 28 self tap (caster pivot)

$

$

Not available
